สายไฟ jumper ผู้-เมีย ยาว 30cm. จำนวน 40 เส้น

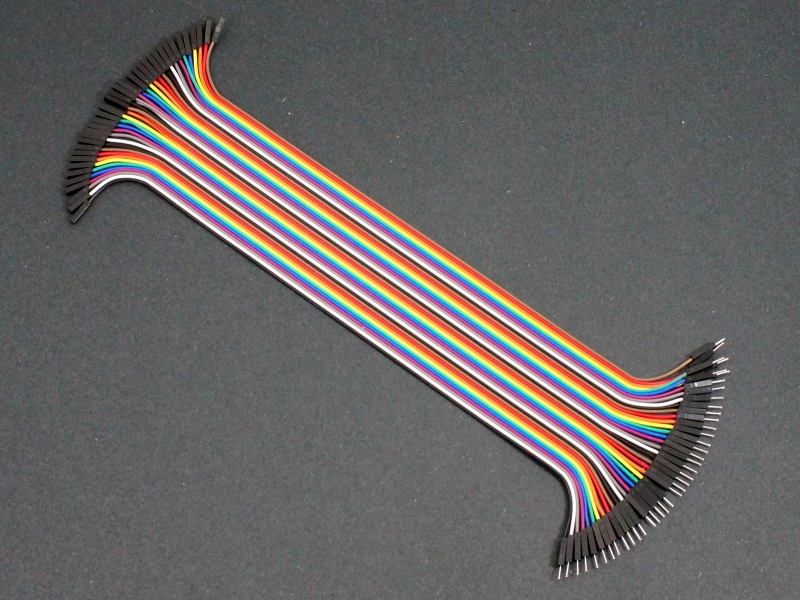

These 12″ (30 cm) long 40-conductor cables have male header pins on one end and female header contacts on the opposite end.



Male/Female 40-conductor  x  12″ (30cm) cable

KEY FEATURES OF MALE / FEMALE JUMPER WIRES:

Male to female jumpers are especially handy for connecting standard 0.1″ male header pins like commonly found on breakout boards to female header contacts such as on a solderless breadboard.   They also can be used to make extension cables by connecting the female end to the male end of another cable.



The cables have 10 different wire colors which repeat every 10 wires.  The rainbow colors make it easy to match the same wire at both ends of the cable.



The individual wires are easily pulled apart by hand to create single jumper wires or to make smaller cables consisting of multiple wires which are handy for keeping wires together when connecting small buses or running multiple wires to a sensor.





These are designed to work with a standard 0.1″ spacing.  When using them in an adjacent line, it works best to have the silver latch portion of the pin visible (facing out) as that side is slightly wider than 0.1″.

Cable Length Pin to pin ~12″ (30cm)

# Conductors 40

Conductor Gauge 26AWG

Minimum Spacing For stacking adjacent pins 0.1″ (2.54mm)
