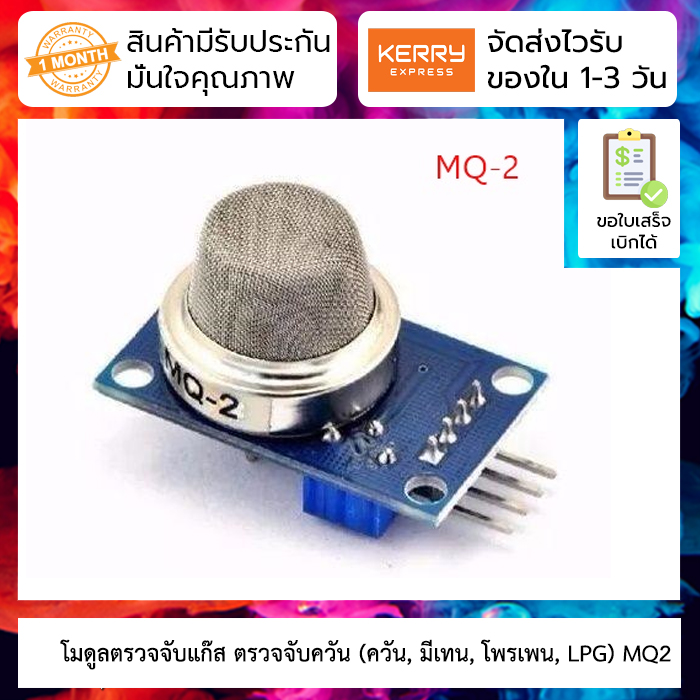

โมดูลตรวจจับแก๊ส ตรวจจับควัน (ควัน, LPG, CO) MQ-2 Smoke/LPG/CO Gas Sensor Module

Specification

• http://www.seeedstudio.com/depot/datasheet/MQ-2.pdf
• http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor%28MQ2%29

MQ-2 sensitive material is used for gas sensors in clean air low conductivity tin oxide (SnO 2 ) . When there is the environment in the combustible gas sensor, conductivity sensor with increasing concentrations of combustible gases in air increases. Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal.

MQ-2 gas sensor high on liquefied petroleum gas, propane, hydrogen sensitivity, detection of natural gas and other flammable vapors are also very good. This sensor can detect a variety of flammable gas, is a low-cost sensors for a variety of applications.

Features

• in a wide concentration range of the sensitivity of the combustible gas a good
• for liquefied petroleum gas, propane, hydrogen, high sensitivity
• Long life, low cost
• simple drive circuit can be

Applications

• household gas leak alarm
• Industrial combustible gas alarm
• portable gas detector
