DESCRIPTION
It's a small USB to TTL serial tool, using the PL2303 chip. You can use it to connect some serial device to your PC via USB port.

FEATURES

• Adopt imported controller PL2303HX,which can stabilize the flash with high speed
• Compatible with 32-bit & 64-bit Windows, Mac OS 8 to OS X, Linux and Android
• To test the unit use the shunt to connect TX and RX (loopback test)
• 3.3V and 5.0V outputs are available to power your project directly from the adapter

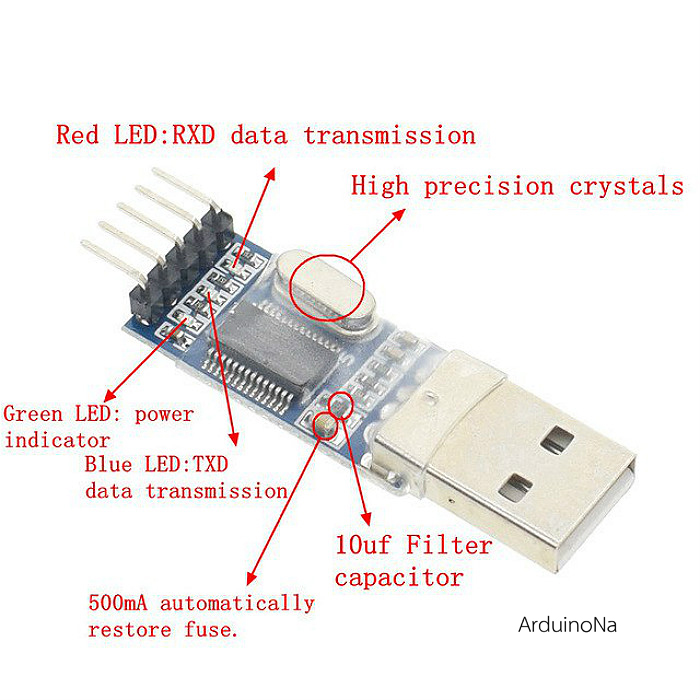

• With 3 LED: TXD LED, RXD LED, POWER LED

APPLICATION

• RS-232 to USB upgrade traditional devices
• USB to RS-232 serial adapter


Instructions for use: (to access the MCU for example)

• VCCIO: Output 3.3V or 5V (USB-powered module jump, jumper shall 3.3V or 5V)
• GND: GND connection
• TXD: pick MCU.RX (signal flow: MCU.RX << PL2303 << PC.TX)
• RXD: pick MCU.TX (signal flow: MCU.TX >> PL2303 >> PC.RX)

PACKAGE INCLUDES
1 x PL2303 USB TTL Converter Module
