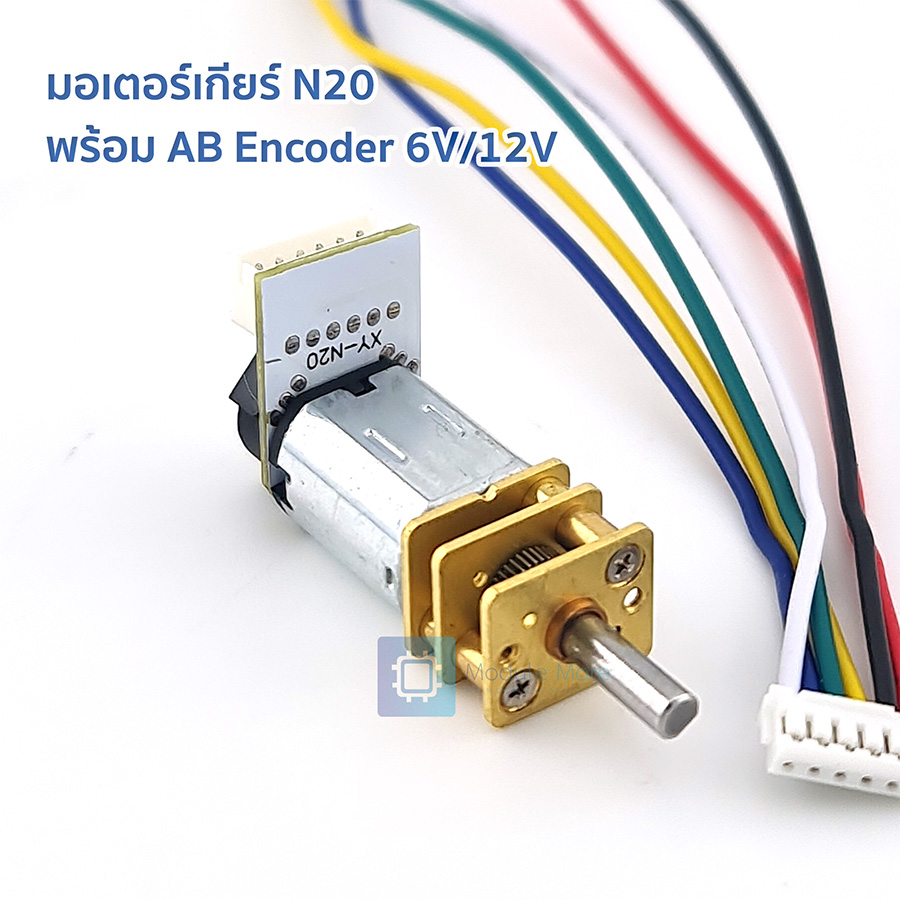

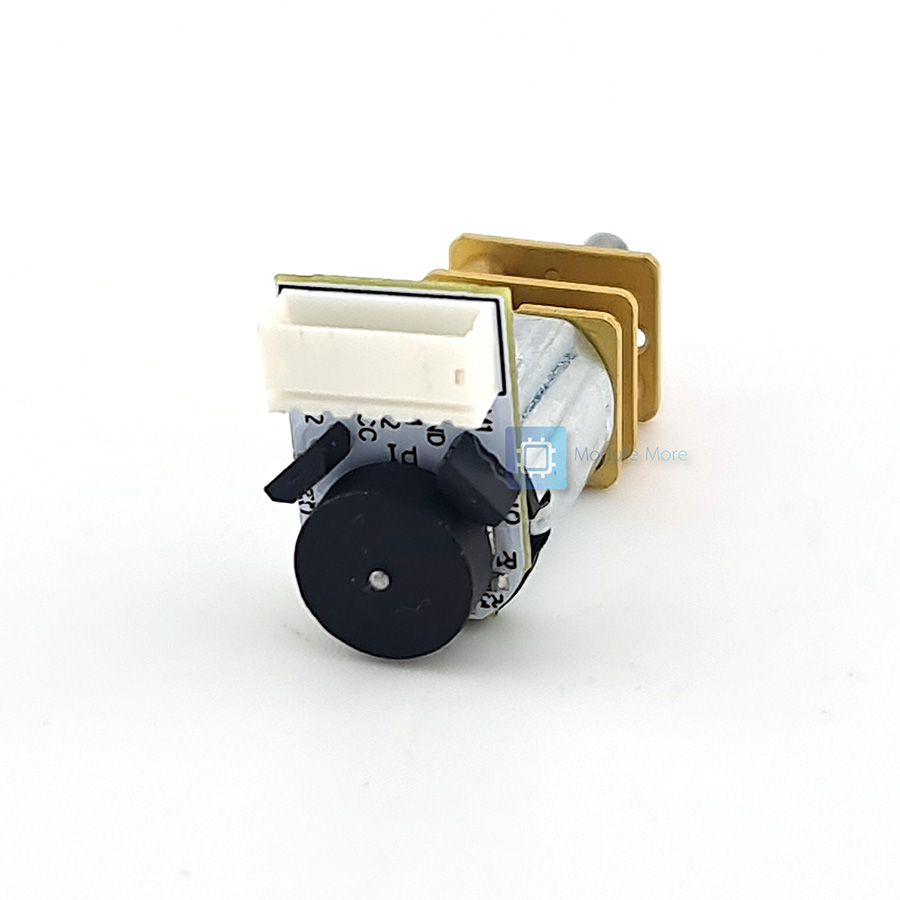

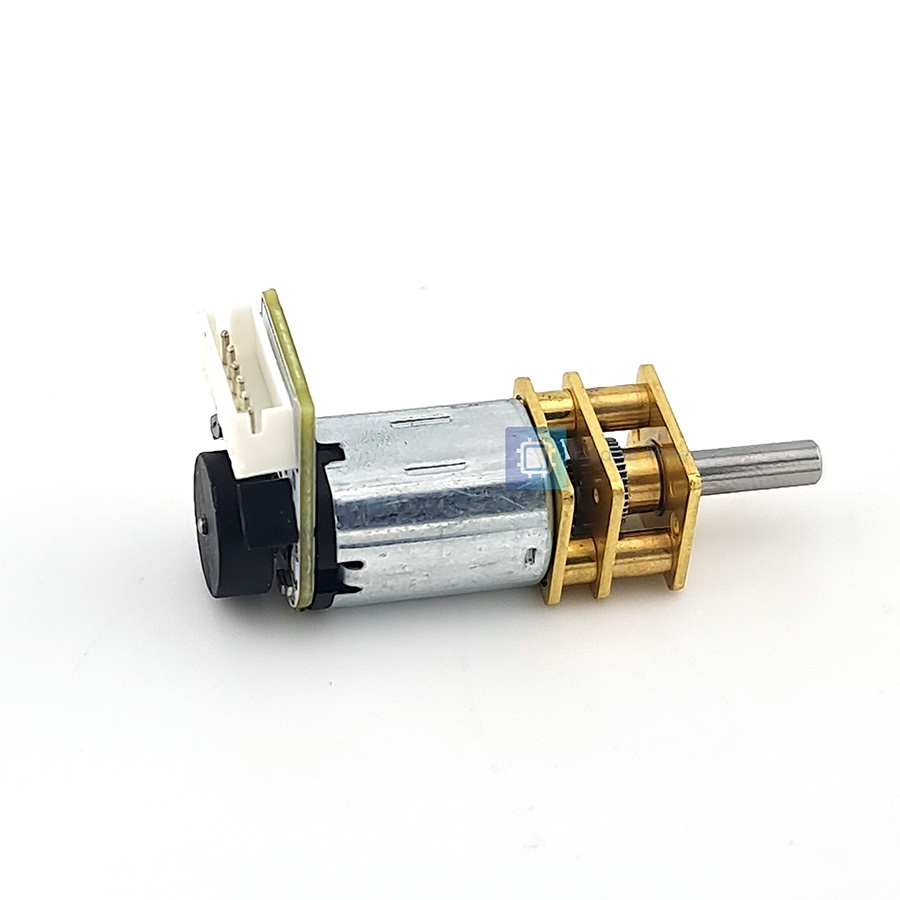

มอเตอร์เกียร์ N20 พร้อม AB Encoder 6V/12V

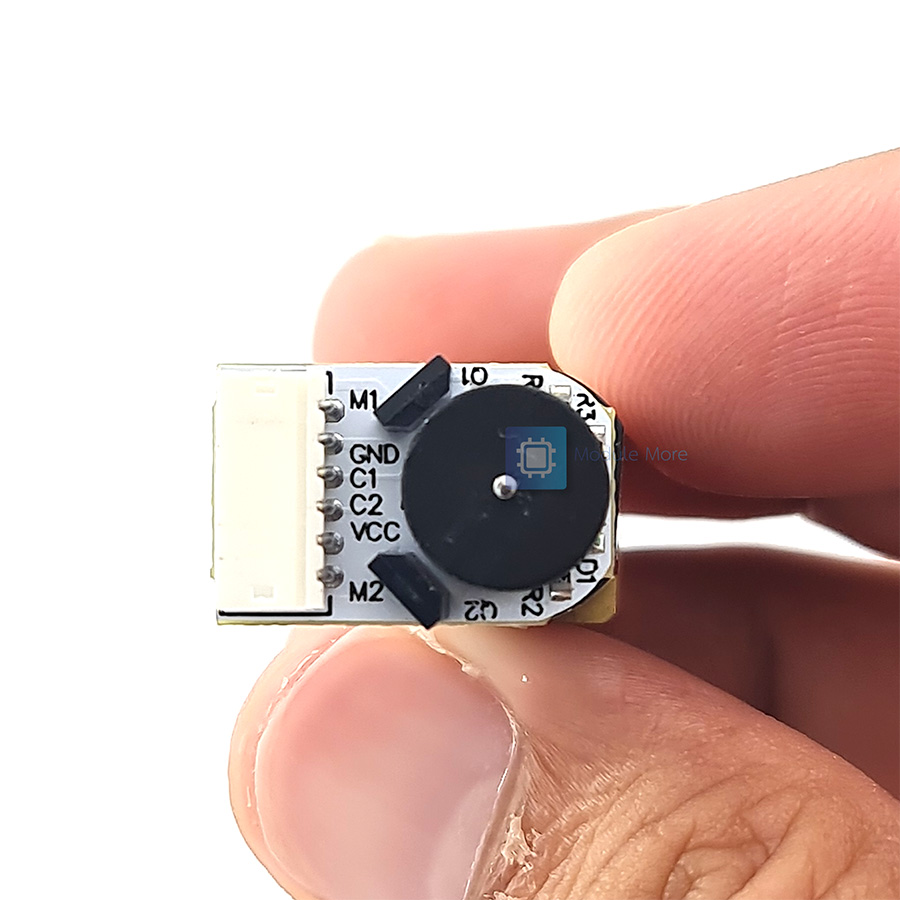

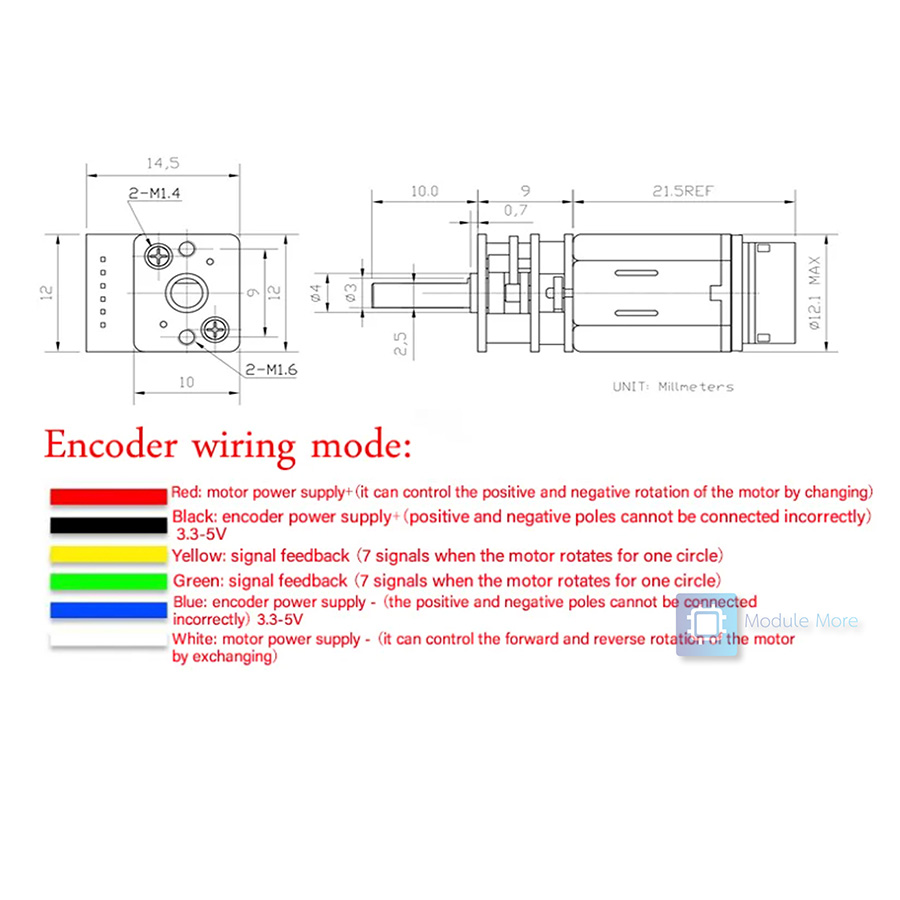

It outlines the connections for the motor power (red/white for positive/negative, reversible) and encoder power/feedback (black/blue for positive/negative, yellow/green for signal feedback), noting voltage requirements and signal type.



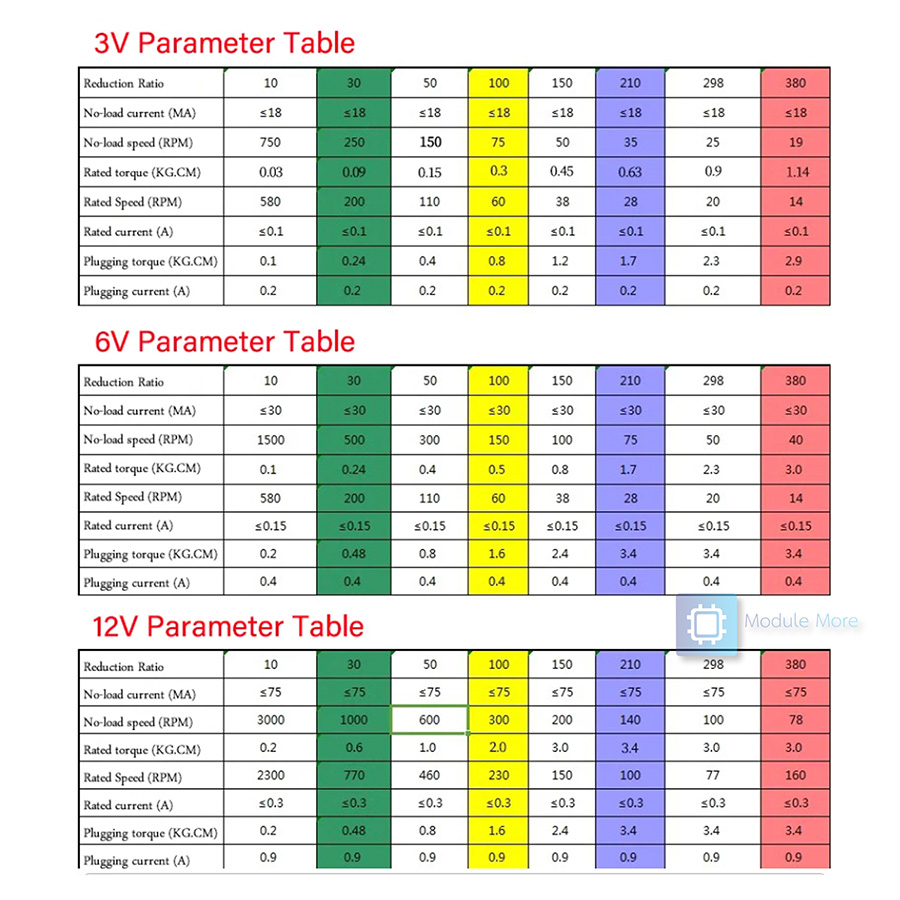

Key specifications include the motor type (N20 DC geared motor),
output signal (square wave AB phase),
encoder voltage (5V/3.3V),
operating temperature range (-40℃~120℃),
Hall response frequency (100KHz), and basic pulse count (7ppr).



Power & Overload: Ensure correct voltage and sufficient current, and avoid exceeding rated torque or shaft load to prevent damage and motor burnout.

Environment & Handling: Do not store or operate in high temperature, humid, or corrosive environments. Avoid abnormal knocking when installing transmission parts like gears or pulleys.

Soldering & Installation:
When soldering power leads, use controlled iron temperature and heating time to prevent plastic deformation or wire breakage. Ensure screws are not too long during installation to avoid damaging internal components.
