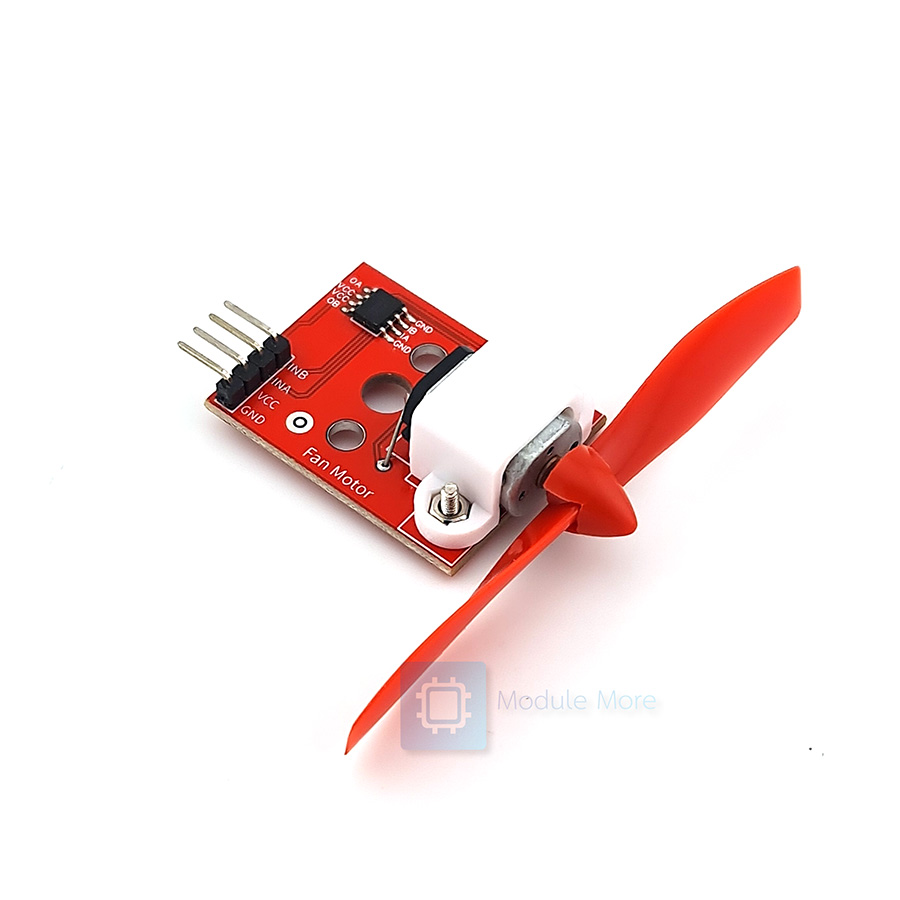

โมดูลพัดลม 5V L9110 Fan module Fire extinguishing robot

Features:

• Voltage DC 5V
• Propeller diameter 7mm
• Bridge drive 9110 H
• Application DIY project
• Propeller diameter 75mm
• Size 50*26*15mm
• Weight 12g
• Color Red + white + black
• Material FR4, ABS

Specifications:

• Use L9110 driver module for speed control
• With mounting holes
• Screw compatible steering gear
• Can easily blow out lighter flame 20 cm away
• Can be used for fire fighting robots, robot design and development
• Working voltage: 5V

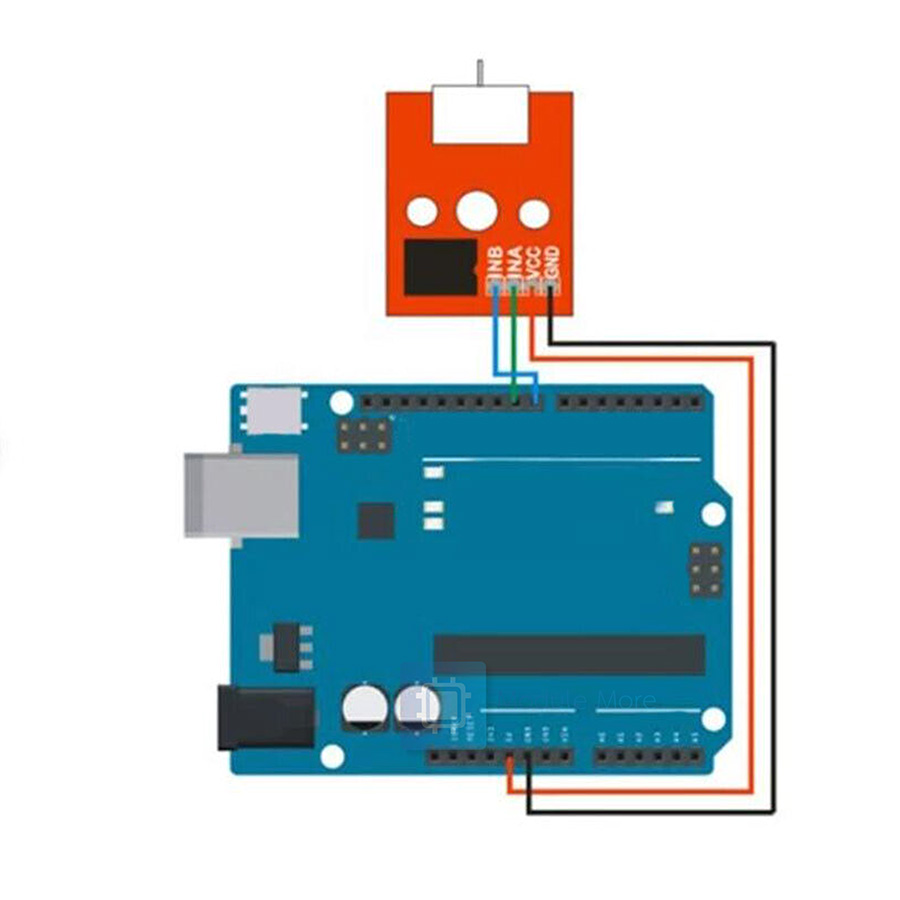

L9110 drive, can control forward and reverse rotation with mounting holes, compatible with servo and rudder control, high-quality propeller, high efficiency. It can easily extinguish lighter flames 20cm away and can be used for the production of firefighting robots. The necessary modules for robot design and development are connected to the development board. The VCC of the module is connected to 5V, GND is connected to GND, INA is connected to digital interface 9, and INB is connected to digital interface 8.

Package Includes:

• 1 x L9110 Fan Motor Module with Fan Propeller for Firefighting Robot Design Arduino
