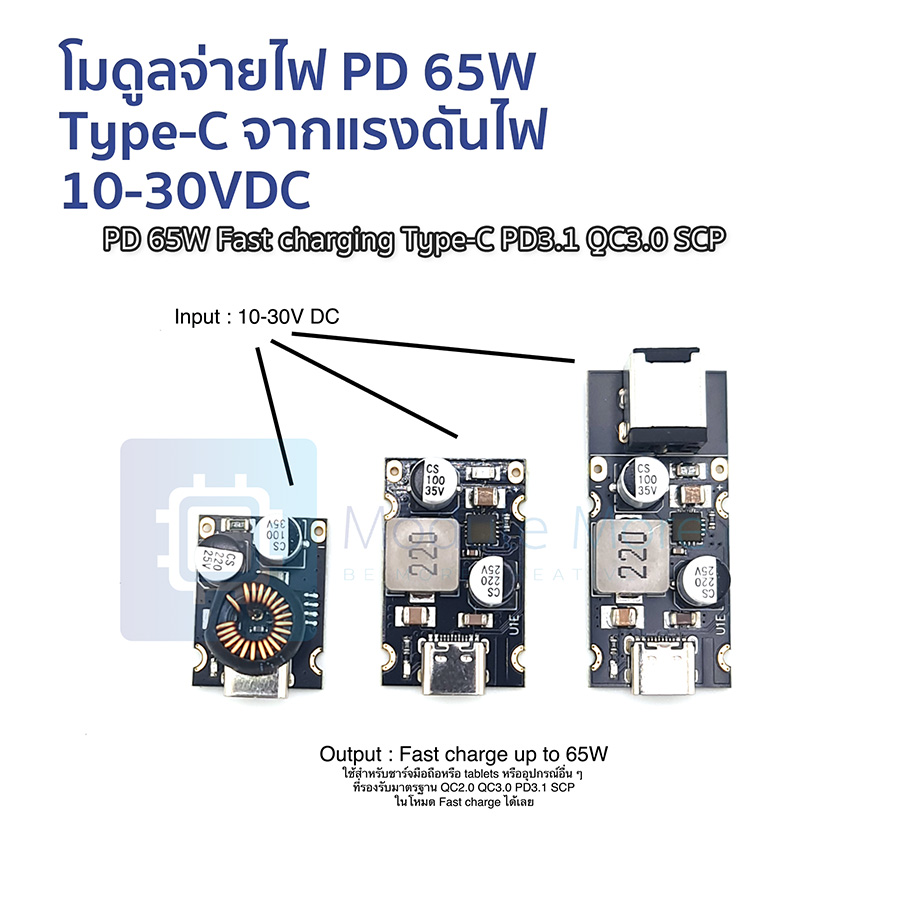

โมดูลจ่ายไฟ ชาร์จเร็ว PD 65W Type-C จากแรงดันไฟ 10-30VDC High-Efficiency DC-DC Fast charging PD module

Product Description

High-Efficiency DC-DC Converter with Multiple Charging Protocols

Overview: This high-efficiency DC-DC converter is designed to provide reliable and versatile power conversion for a wide range of devices. It supports multiple fast-charging protocols, including PD3.1 (PPS), QC3.0, and SCP, ensuring compatibility with various devices. The converter features comprehensive protection mechanisms to safeguard both the converter and connected devices.

Key Features:

• Fast Charging Protocols: Supports PD3.1 (PPS), QC3.0, and SCP for rapid charging.
• Protection Mechanisms: Includes input over-voltage/under-voltage protection, input over-current protection, output over-current/short-circuit protection, and over-temperature protection.
• High Output Power: Maximum output of 20V 3.25A.
• Wide Input Voltage Range: Accepts input voltages from 8V to 30V (step-down only).
• High Efficiency: Conversion efficiency ranges from 92% to 97%.
• Low Ripple: Output voltage ripple is less than 200mV.
• Low Standby Current: Idle current is less than 3mA.

Specifications:

• Input Voltage: DC 8V to 30V (ทดลองแล้วต้องมากกว่า 10V)
• Output Voltage: Automatically adjusts between 3.3V and 21V when connected to a compatible Type-C device (input voltage must be higher than output voltage; for 20V fast charging, input voltage must exceed 20V)
• Output Power: Maximum 65W (supports 5V 3A, 9V 3A, 12V 3A, 20V 3.25A)
• Maximum Output: 20V 3.25A
• Conversion Efficiency: 92% to 97%
• Output Voltage Ripple: <200mV
• No-Load Current: <3mA
• Protection Features: Input over-voltage/under-voltage protection, input over-current protection, output over-current/short-circuit protection, over-temperature protection
• Supported Charging Protocols: PD3.1 (PPS), QC3.0, SCP, BC1.2, Apple protocol, Qualcomm QC2.0 and QC3.0

Product Dimensions:

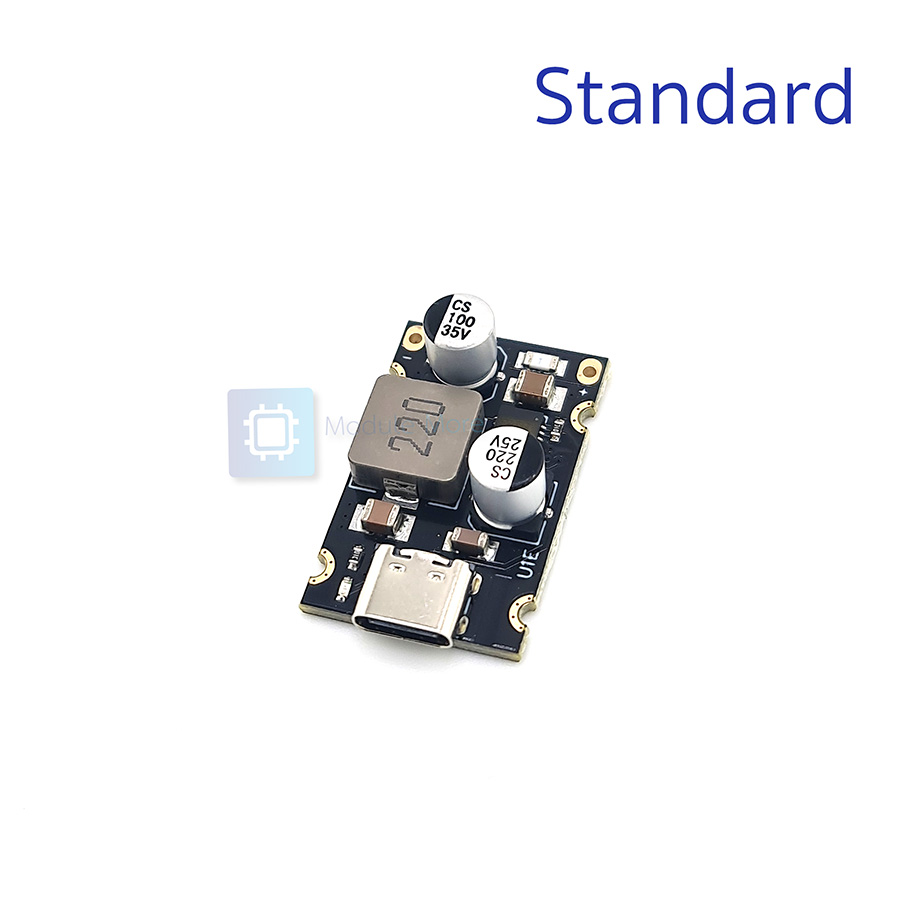

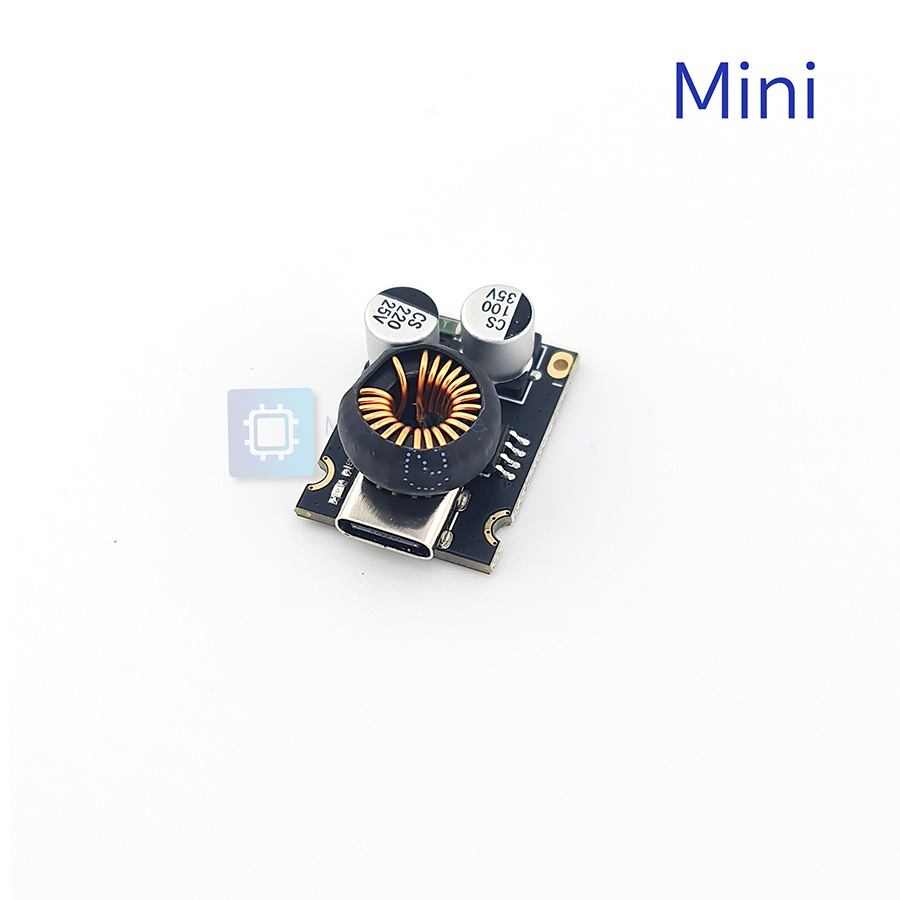

• Standard Version: 32mm x 20mm x 10mm (excluding the protrusion of the Type-C female connector by 1mm)

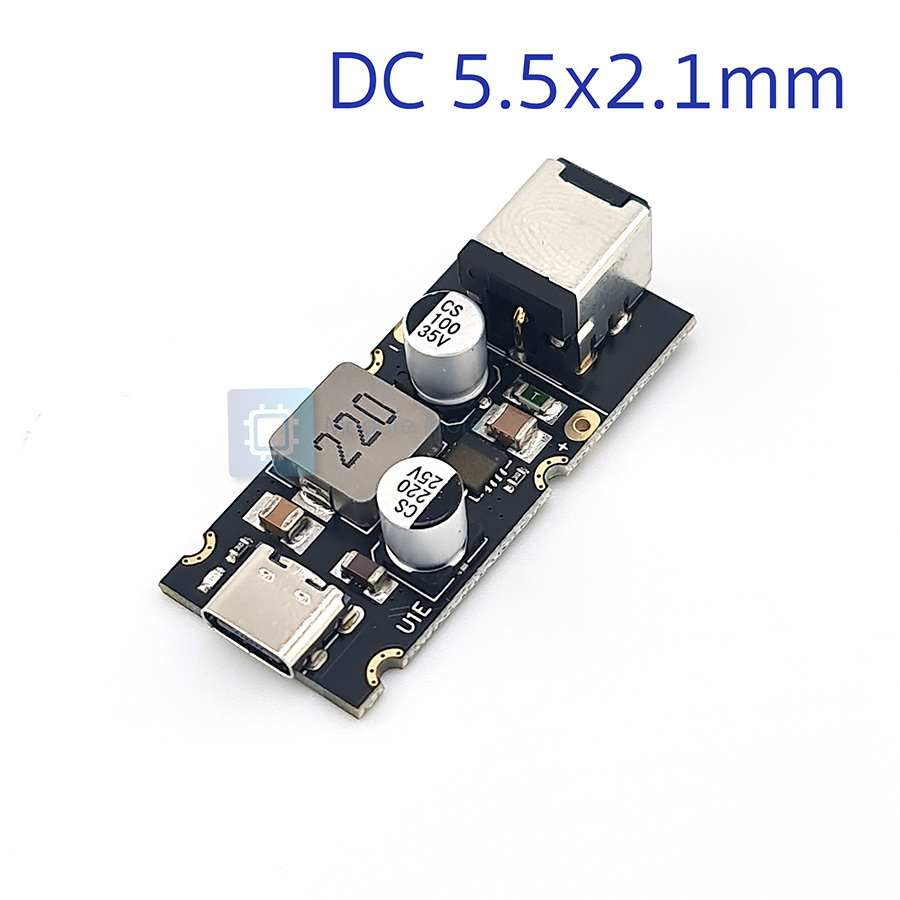

• With DC Jack: 44mm x 20mm x 10mm (excluding the protrusion of the Type-C female connector by 1mm)

Applications: Ideal for use in various electronic devices requiring efficient and reliable power conversion, including laptops, smartphones, tablets, and other Type-C compatible devices.

Package Includes:

• 1 x DC-DC Converter

Note: Ensure that the input voltage is higher than the desired output voltage for proper operation. For triggering 20V fast charging, the input voltage must exceed 20V.
