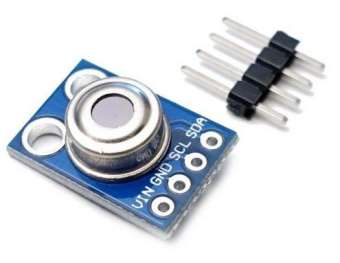

โมดูลวัดอุณหภูมิแบบไม่สัมผัส infrared temperature GY-906 Infrared Temperature Sensor Module (GY-906 MLX90614ESF)

โมดูลวัดอุณหภูมิแบบไม่ต้องสัมผัส วัดได้ในช่วง -70 ถึง 380 องศาเซลเซียส ใช้ I2C ในการสื่อสารกับ microcontroller มีความละเอียดถึง 0.02 องศาเซลเซียส



ใช้แรงดันไฟ 3.3V - 5V



This is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface.

Features



    Small size, low cost

    Mounted on a breakout board with two types of pins

    10k Pull up resistors for the I2C interface with optional solder jumpers

    Easy to integrate

    Factory calibrated in wide temperature range:-40…+125°C for sensor temperature and -70…+380°C for object temperature.

    High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration

    Measurement resolution of 0.02°C

    Single and dual zone versions

    SMBus compatible digital interface

    Customizable PWM output for continuousreading

    Simple adaptation for 8-16V applications

    Sleep mode for reduced power consumption

    Different package options for applications andmeasurements versatility

    Automotive grade







    High precision non-contact temperature measurements

    Thermal Comfort sensor for Mobile AirConditioning control system

    Temperature sensing element for residential,commercial and industrial building airconditioning

    Windshield defogging

    Automotive blind angle detection

    Industrial temperature control of moving parts

    Temperature control in printers and copiers

    Home appliances with temperature control

    Healthcare

    Livestock monitoring

    Movement detection

    Multiple zone temperature control – up to 127sensors can be read via common 2 wires

    Thermal relay / alert

    Body temperature measurement
