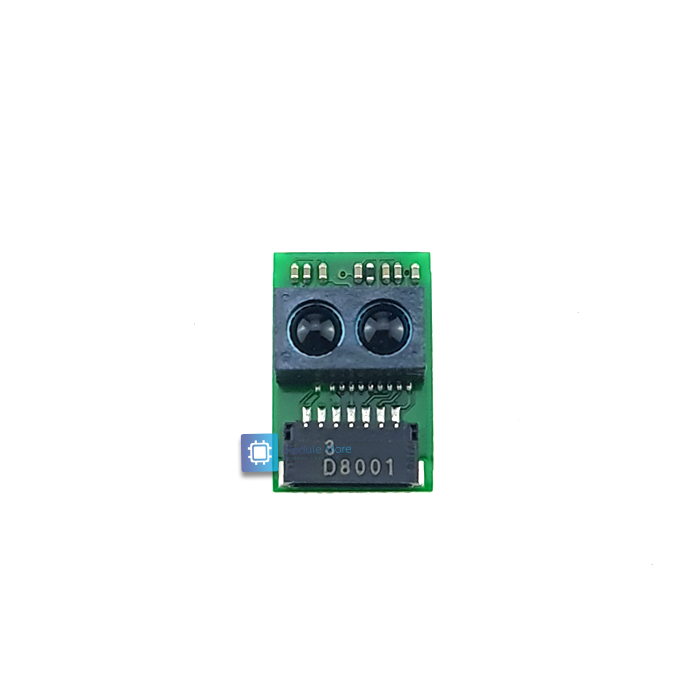

เซนเซอร์วัดระยะทาง 4-50cm GP2Y0E03 Infrared Rangefinder module

เซนเซอร์วัดระยะทาง 4-50cm GP2Y0E03 Infrared Rangefinder module

ใช้สำหรับวัดระยะทางช่วง 4-50cm ใช้ไฟเลี้ยง 2.7-5V ให้สัญญาณเอาต์พุตแบบ analog และ digital สื่อสารแบบ I2C

Specification:

• Measuring distance: 4 to 50 cm
• Output: Digital (I/C) / Analog Output
• Sensor: Infrared LED and CMOS image sensor
• Built-in signal processing circuit
• Voltage operation: 2.7V-5V

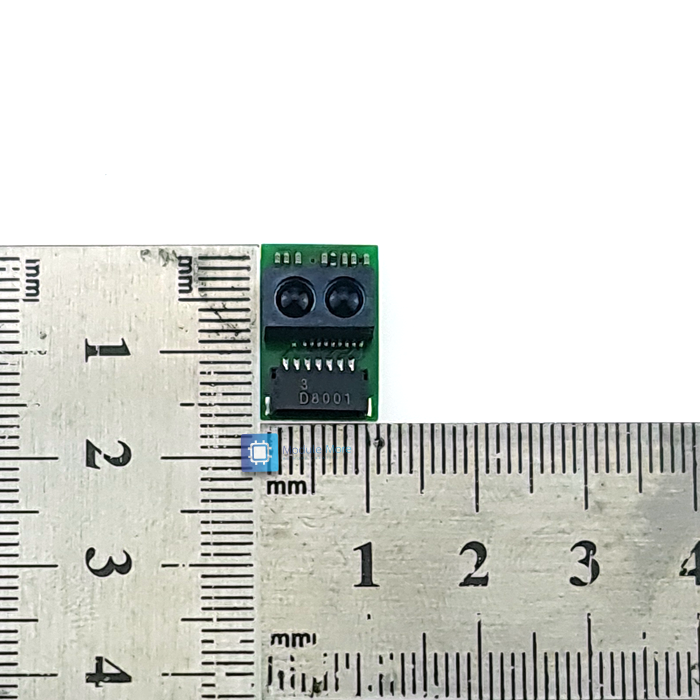

• Size: 16.7 × 11 × 5.2mm

Features:

• High precision measurement
• Digital (I/C) / analog output type
• CMOS integrated combination
• Image sensor and infrared LED.
• The change in the reflectivity of the object, the ambient temperature, and the running time are not easily affected by the distance detection.
• Due to the triangulation method, the device output corresponds to the detected distance and digital (I2C) data. Therefore, the sensor can also be used as a proximity sensor.

Applications:

1. Cleaning robot
2. Humanoid robot
3. Non-contact switch (sanitary equipment, illuminance control, etc.)
4. Energy-saving sensors (ATM, copiers, LCD monitors, etc.)
5. Amusement equipment (robot, game console, etc.)
