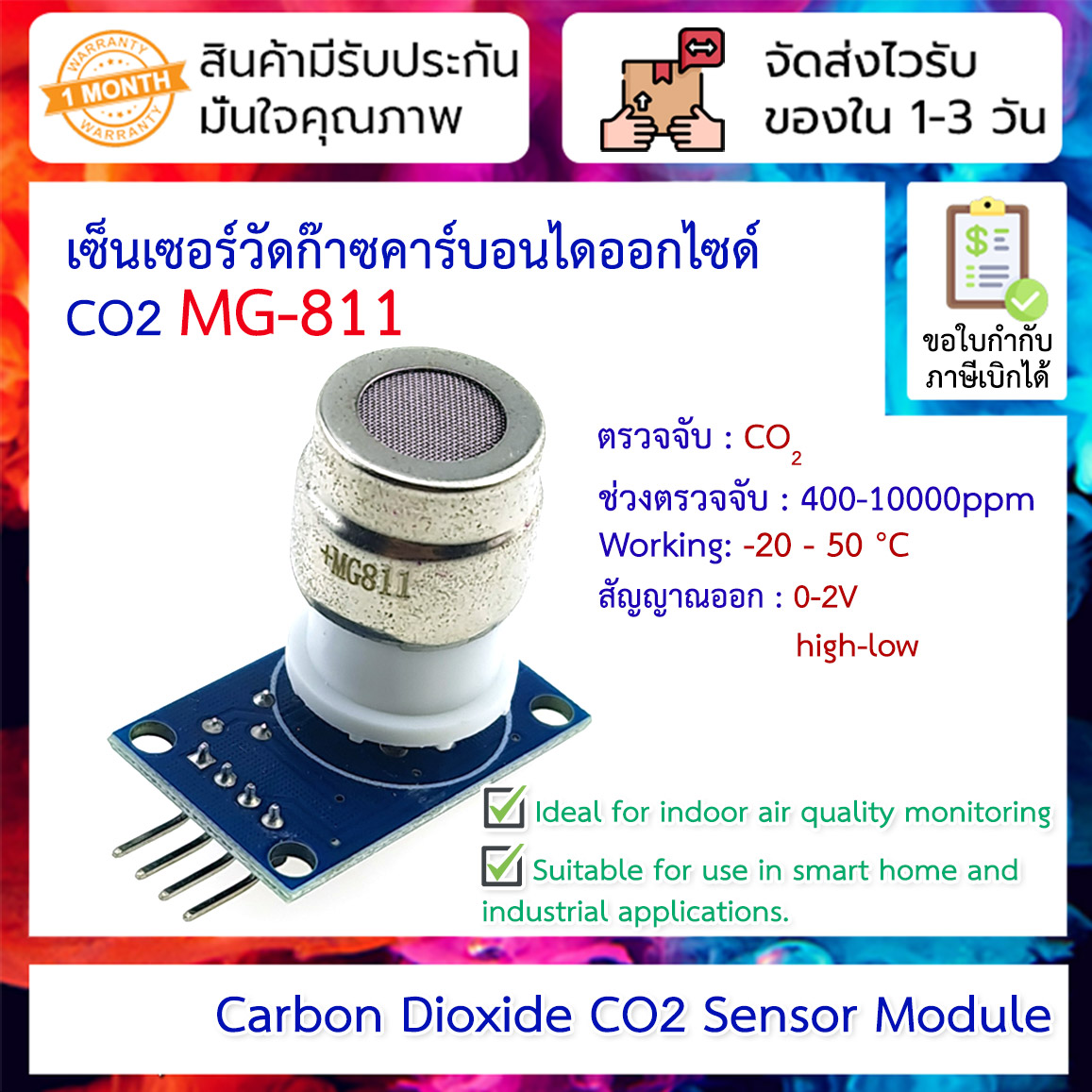

เซ็นเซอร์วัดก๊าซคาร์บอนไดออกไซด์ CO2 MG-811 Carbon Dioxide CO2 Sensor Module

เซ็นเซอร์วัดก๊าซคาร์บอนไดออกไซด์ CO2 MG-811 Carbon Dioxide CO2 Sensor Module
About this product
This sensor module has an MG-811 on-board as the sensor component. There is an on-board signal conditioning circuit for amplifying output signal and an on-board heating circuit for heating the sensor. The MG-811 is highly sensitive to CO2 and less sensitive to alcohol and CO. It could be used in air quality control, ferment process, in-door air monitoring application. The output voltage of the module falls as the concentration of the CO2 increases.



Specification

• Signal output indication
• Dual signal output (analog output and TTL) Flat output
• TTL output valid signal is low
• One digital output
• Output: 0-2V
• Operating Voltage: 5V
• Interface: Gravity Analog
• High quality connector
• High sensitivity and good selectivity to carbon dioxide
• Size: 32mm X22mm X30mm
• Working Voltage: DC 6V
• Main Chip: LM393, carbon dioxide gas sensing probe
• MG-811 Carbon Dioxide Sensor Module datasheet

ตัวอย่างโค้ด MG-811
https://sandboxelectronics.com/?p=147


ตัวอย่างผลการทดสอบ
