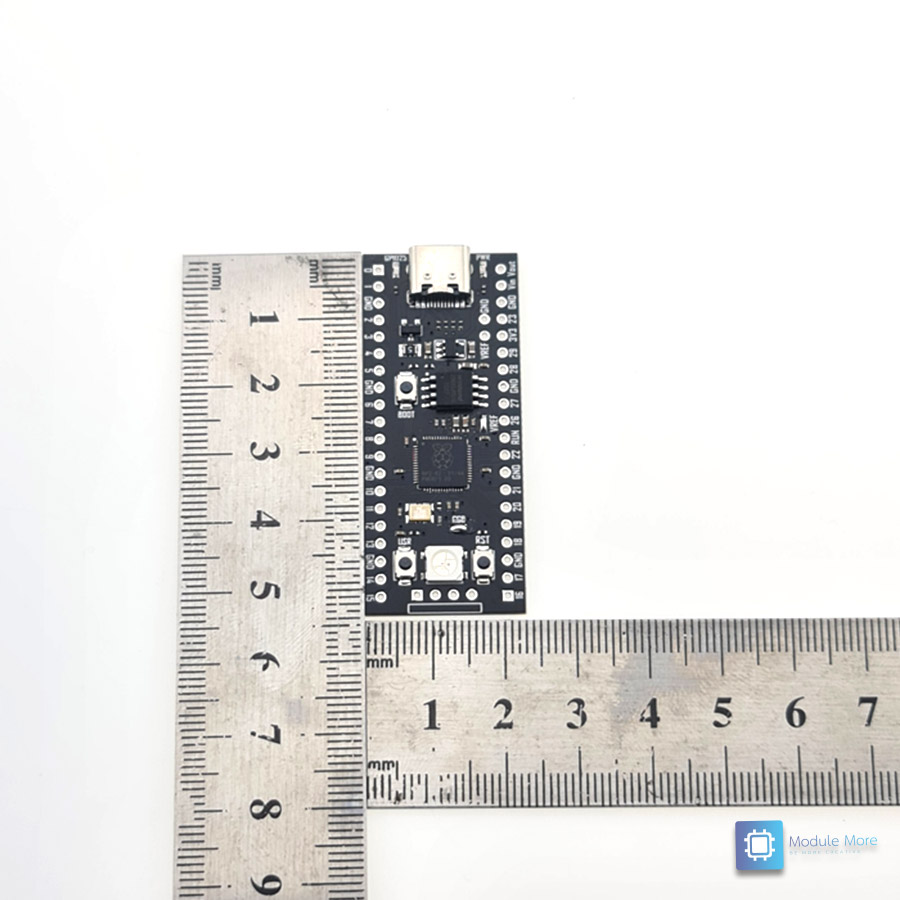

YD-RP2040 Raspberry Pi core board is compatible with RP2 Raspberry Pi Pico Micropython

Note: 1. Download micropython firmware by default
2. Support micropython, C/C++, for ardniuo

วิดิโอตัวอย่างการสั่ง led

วิดิโอตัวอย่างการสั่ง PWM, i2c, adc ...

Introduction:

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It is designed as a low cost, high performance microcontroller board with flexible digital interface. The Raspberry Pi Pico features two ARM Cortex-M0+ cores running at up to 133MHz; 256KB of memory; 30 GPIO pins; and extensive interface options. This is paired with 2MB/4MB/8MB/16MB of onboard QSPI flash for code and data storage. (ตัวนี้เป็น version 4MB)

Specification:

• RP2040 microcontroller chip designed by Raspberry Pi
• Dual-core Arm Cortex M0+ processor with flexible clock running up to 133 MHz

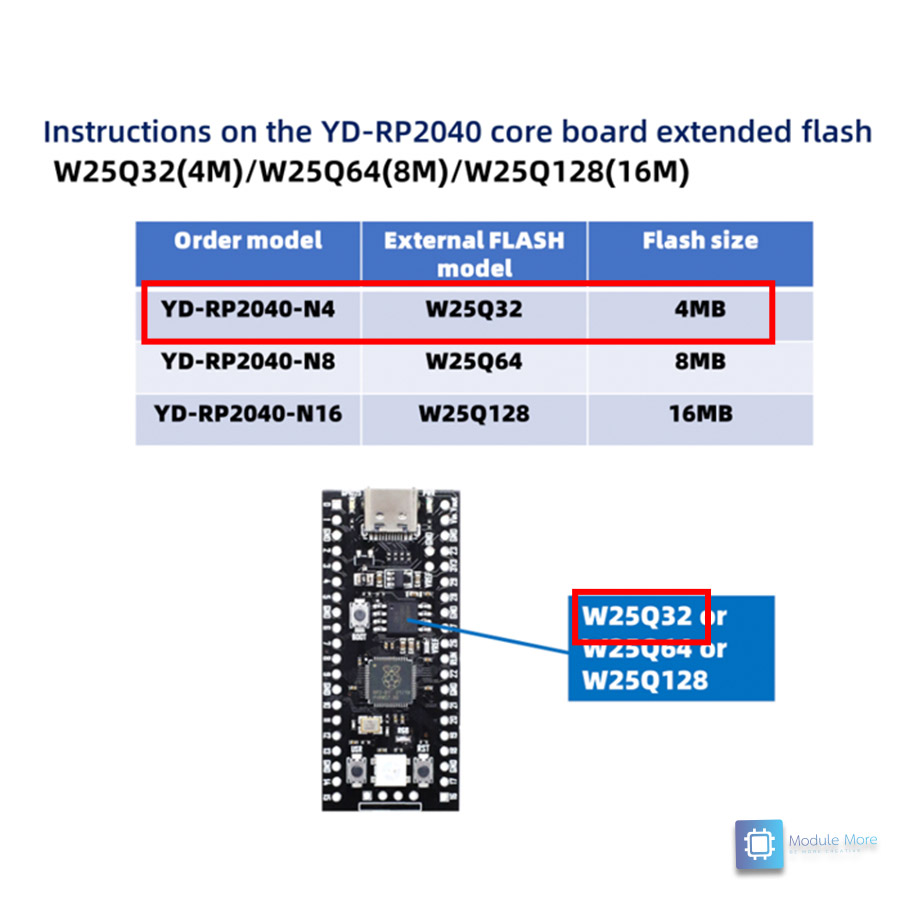

• 264KB SRAM, and 2MB/4MB/8MB/16MB onboard flash (4MB)
• USB 1.1 supported device and host
• Low-power sleep and hibernate modes
• Drag-and-drop programming via USB with mass storage

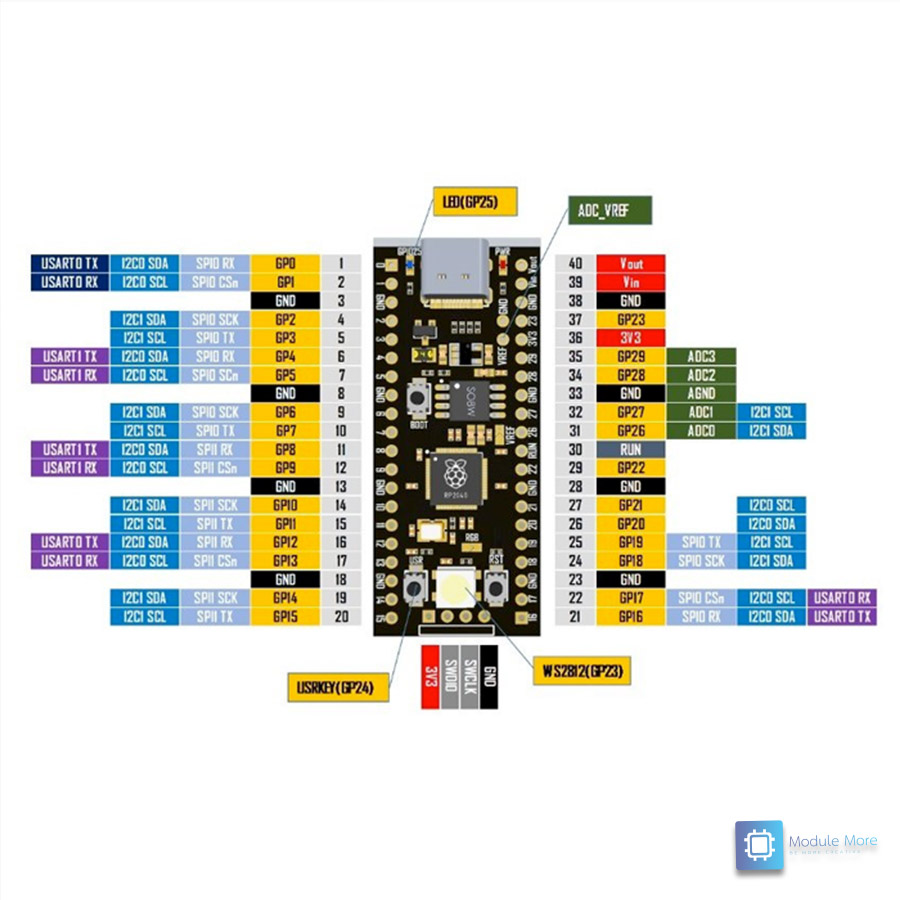

• 26 multi-function GPIO pins
• 2 SPI, 2 I2C, 2 UART, 3 12-bit ADCs, 16 controllable PWM channels
• On-chip precise clocks and timers
• Temperature Sensor
• On-chip accelerated floating-point library
• 8 programmable I/O (PIO) state machines for custom peripheral support

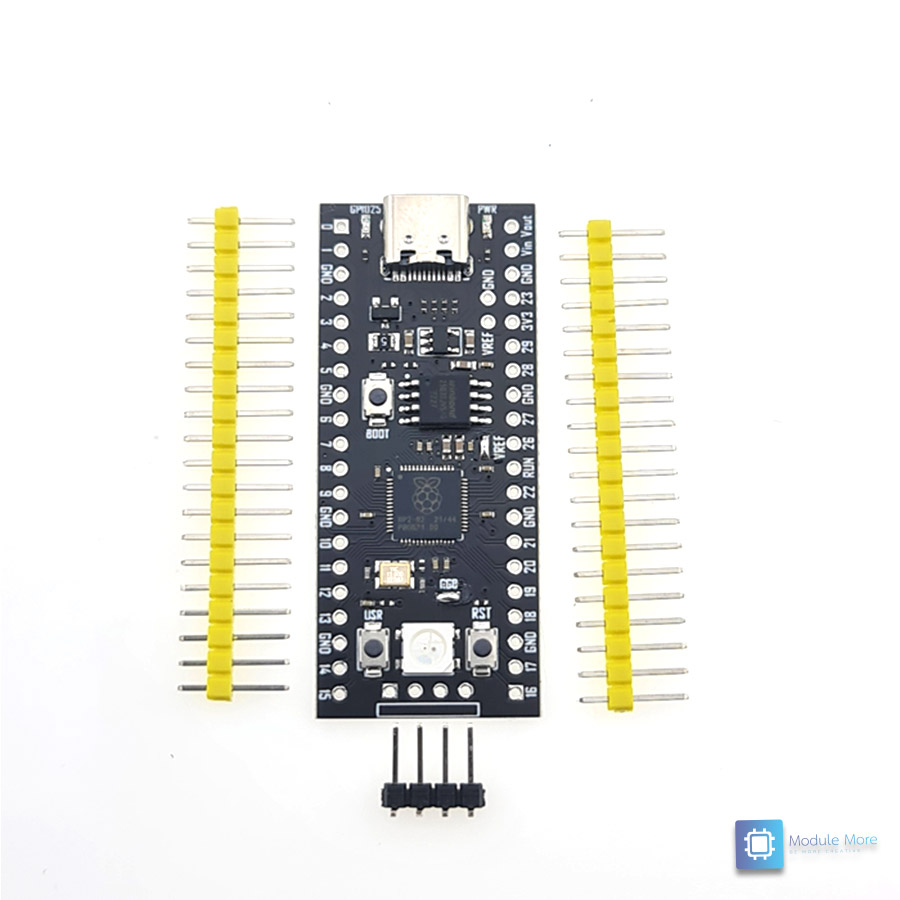

Packing list:

1*RP2040 development board
2*Single row needle
1*Single row looper
