ชุด smart farm ตรวจวัดความชื้นและรดน้ำต้นไม้แบบอัตโนมัติ แบบไม่ต้องเขียนโปรแกรม

Automatic Watering Irrigation Module Water Pump DIY Set Soil Moisture Detection Intelligent Watering Pumping



วิธีการต่อฉบับภาษาไทย (ขอลิ้งใน inbox)


Feature:
About each part of the test:
1. Test the relay module: connect the relay module VCC to 5V, connect GND to ground, connect IN to GND, the relay jumps, and when IN is suspended, the relay recovers, so you can repeatedly hear the "card" sound of the relay;
2. Test the soil moisture sensor module: connect the fork probe and the transmitter module with two DuPont wires, the transmitter module VCC is connected to 5V, GND is grounded, the red power indicator is always on, and the green (blue Color) The color indicator light flashes once; the fork probe is inserted directly into the water, and the green (blue) indicator light is on;
3. Connect the red wire of the pump to 5V, the black wire is grounded, the pump works, pay attention to the test for 1 second, and it is not allowed to work in the air for a long time;

Specification:
Material: PC+ABS
Packing size: 150*100*50mm/5.91*3.94*1.97"

Remark:
1. This product can be soldered free, but you need to strip the wires, twist the copper wires together, and protect them with black tape;
2. The pump cannot run in the air for a long time;
3. After the system is connected, turn on the pump, the pump has been working, this is correct, because in the air, the probe can not detect humidity, so the pump has been working, correctly installed in the pot without problems.
Be careful not to pour water directly on the probe. Many people do not know that the moisture of the water will quickly rust and destroy.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

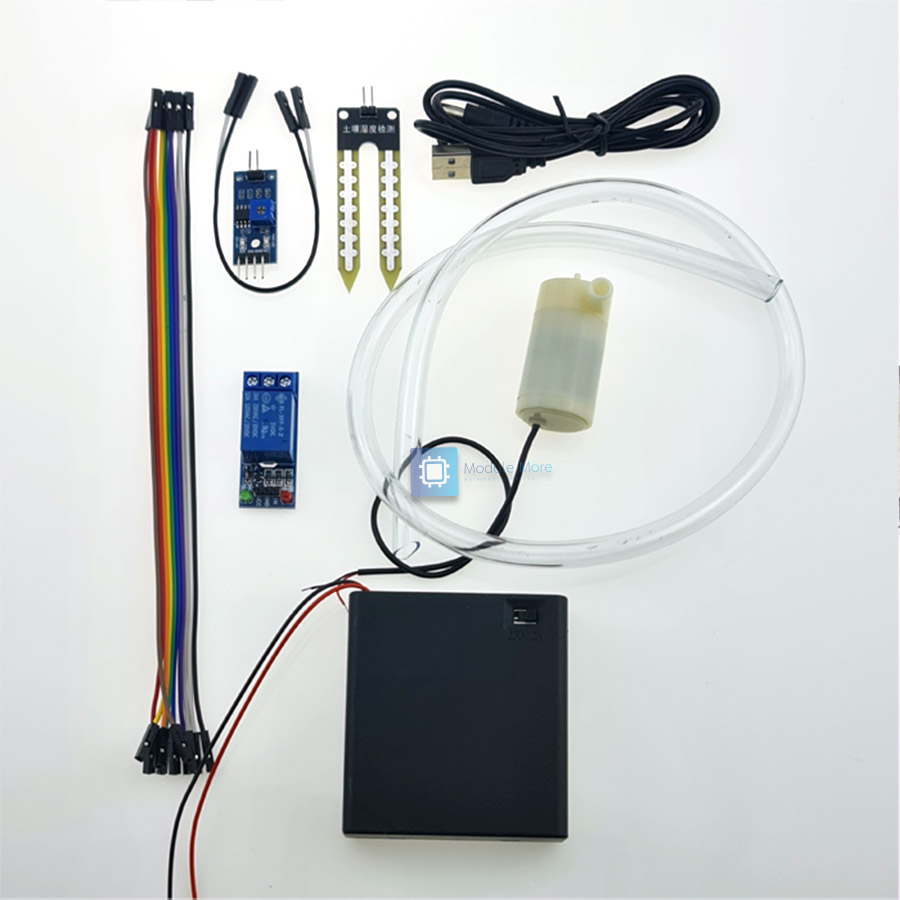

Included
1 X Relay Module
1 X Soil Moisture Probe + Comparison Module
1 X Small Water Pump
1 X Battery Case
1 X USB Power Cord
10 X 20cm Dupont Line (F-F)
1 X 50cm Silicone Water Pipe
