Overview

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.

Package includes: Nextion Display, connecting wire, a power supply test board.
Go Shopping: NX4832T035 (IM150918001)

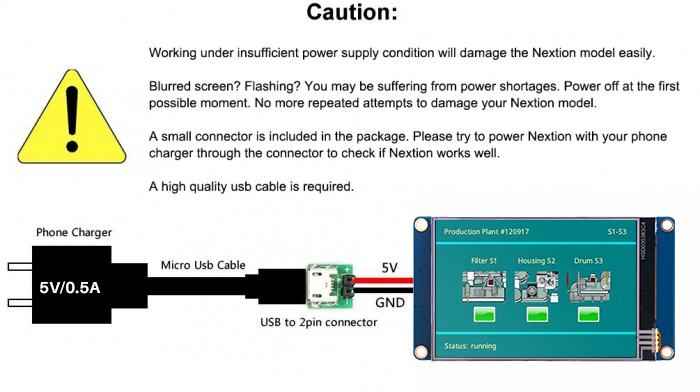

Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Specifications

  Data Description
Color 64K 65536 colors 16 bit 565, 5R-6G-5B
Layout size 100.5 (L)×54.94 (W)×4.25 (H) NX4832T035_011N
100.5 (L)×54.94 (W)×5.45 (H) NX4832T035_011R
Active Area (A.A.) 85.50mm(L)×54.94mm(W)
Visual Area (V.A.) 73.44mm(L)×48.96mm(W)
Resolution 480×320 pixel Also can be set as 320×480
Touch type Resistive
Touches > 1 million
Backlight LED
Backlight lifetime (Average) >30,000 Hours
Brightness  200nit (NX4832T035_011N) 0% to 100%, the interval of adjustment is 1%
180 nit (NX4832T035_011R) 0% to 100%, the interval of adjustment is 1%
Weight 38.2g (NX4832T035_011N)
48.2g (NX4832T035_011R)



Product Dimensions

3.5”_Nextion_Dimension

Product Certificates

CE-EMCRoHS

Nextion NX4832T035 - Generic 3.5" TFT LCD Touch Display
Nextion NX4832T035 - Generic 3.5" TFT LCD Touch Display
