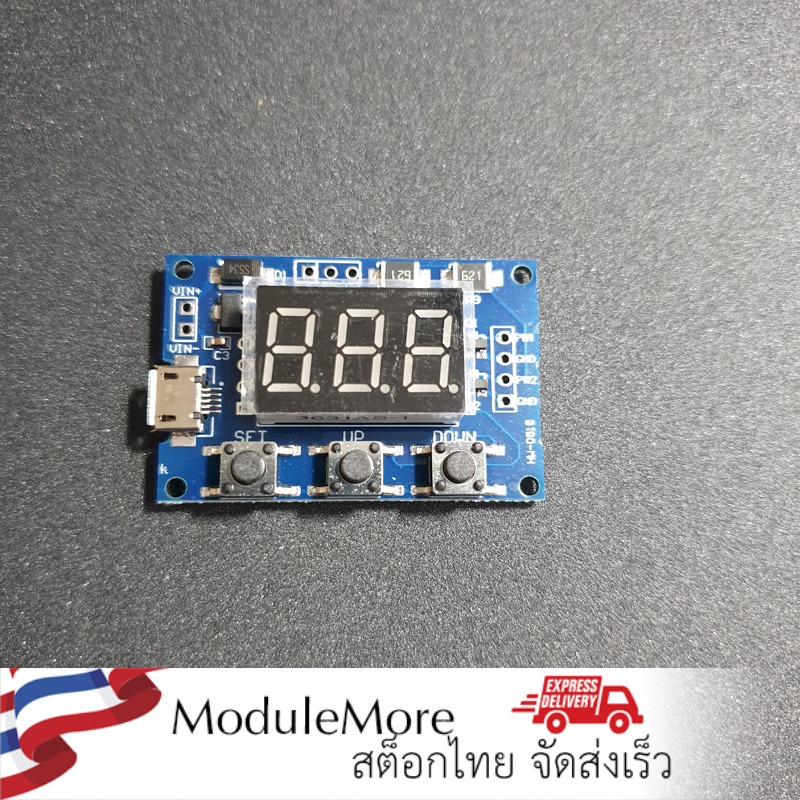

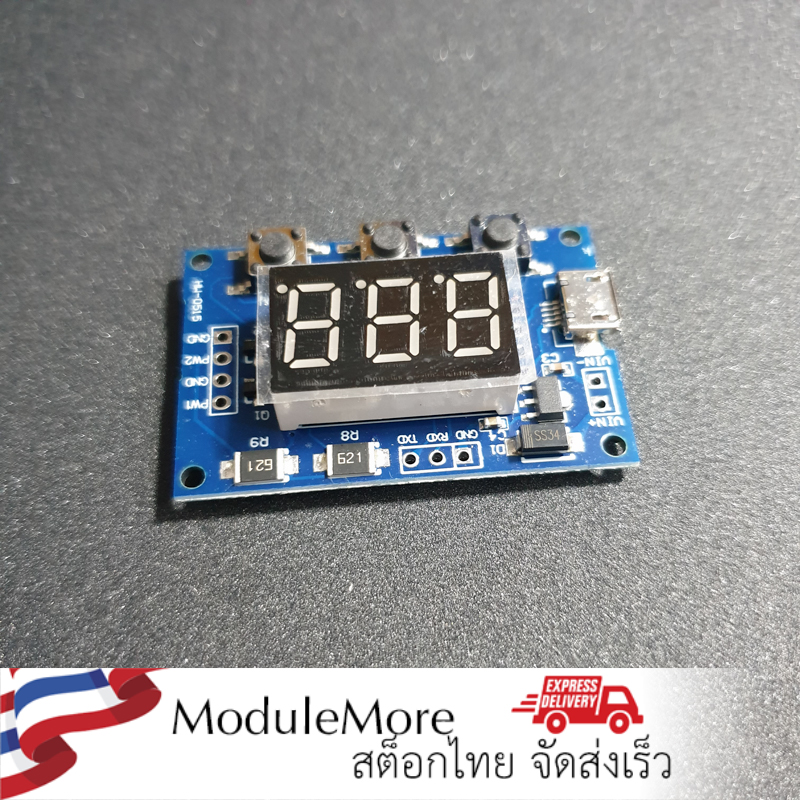

โมดูลสร้างสัญญาณ PWM สัญญาณสี่เหลี่ยม 2 ช่อง 2-channel PWM pulse frequency duty cycle adjustable module square wave rectangular wave signal generator stepper motor drive

โมดูลสร้างสัญญาณ PWM สัญญาณสี่เหลี่ยม 2 ช่อง 2-channel PWM pulse frequency duty cycle adjustable module square wave rectangular wave signal generator stepper motor drive



บทความสอนใช้งานที่น่าสนใจ https://www.electroschematics.com/dual-channel-pwm-module/



1. Two independent PWM outputs, the frequency and duty cycle can be set separately;



2. Wide frequency range and high precision;



3. Serial communication possible

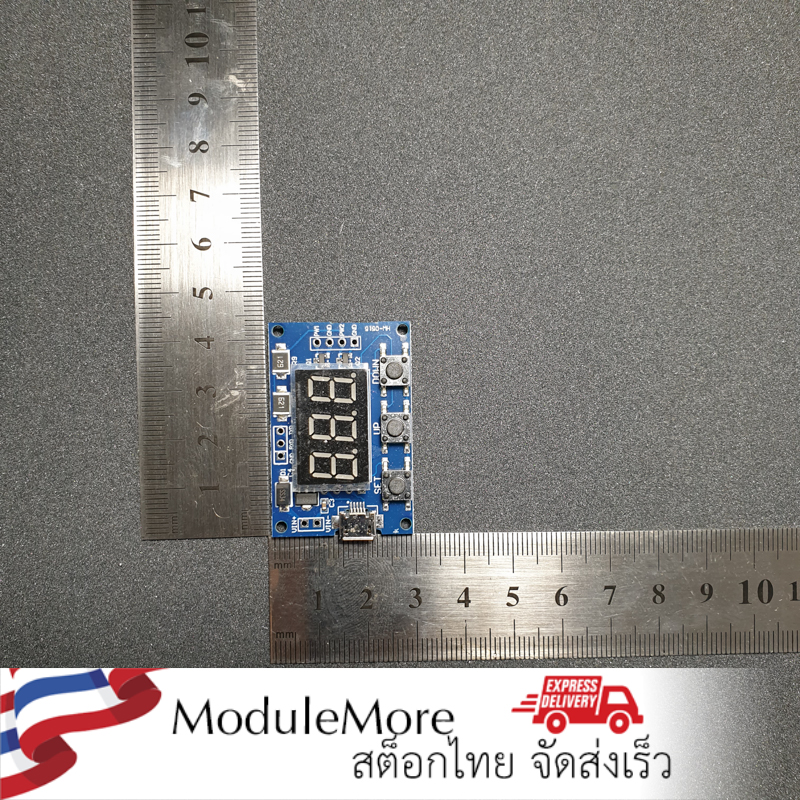

Dimensions: 41*28mm Thickness: 1.6mm





Two independent PWM outputs, the frequency and duty cycle can be set separately;



It is divided into three frequency ranges :



1.  XXX ( no decimal point ) : the smallest unit is 1Hz , and the value range is 1Hz~999Hz ;



2.  XX.X (the decimal point is in the tens place ) : the smallest unit is 0.1Khz ; the value range is 0.1 K H z~99.9K H z



3.  XXX ( three digits have a decimal point ) : the smallest unit is 1Khz ; the value range is 1K H z~150K H z



eg  Frequency display: 100  means PWM output 100Hz pulse;



54.1  represents the PWM output 54.1K H Z pulse;



1.2.4.  Represents a PWM output 124K H Z pulse



Duty cycle value range: 0 ~ 100 ;



The three frequency ranges share a duty cycle, and all setting parameters are saved after power-off.
