กลอนแม่เหล็กไฟฟ้า XG-07C จ่ายไฟปลดล็อค 12V 2 สาย Express cabinet lock small cabinet door electromagnetic lock 12v
Details:

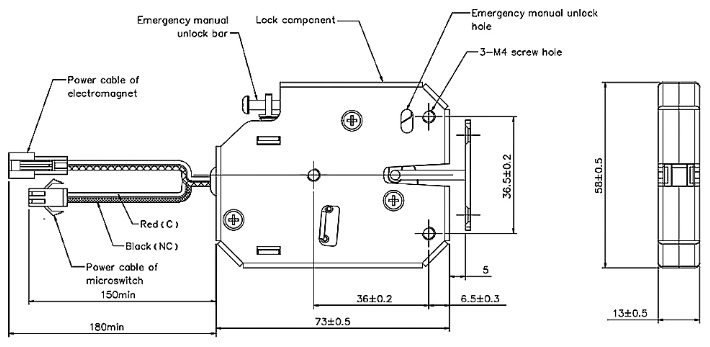

1. Size: 73 * 58 * 13mm, small size can be customized.
2. Working method: independent function. (Lock when power off, unlock immediately when power on)
3.Voltage: 12V 1.8A
4. Machine life: more than 500,000 times
5. Electromagnetic life: more than 1,000,000 times under rating condition
6. Unlock test: Build-in test
7. Can be used for self-bounced off. (Customizable)
8. Material: Aluminum
9. Surface: Color, power coated. (Toxic smoke test time: over 48 hours)
10, Safety: The hook can withstand 150kg of stress without obvious permanent deformation,
has anti-shock and tamper-proof function.
11. Ambient temperature: can work in the range of 60 degrees to 10 degrees below zero
12. Installation: easy locking mechanism unlocking position, easy to install.
Rated Voltage DC12V
Resistance 9 Ω ± 10% @ 20 ° C
Currency 1.333A
Power 16W
Dielectric Withstand 600VAC / 1Sec
Insulation Resistance 500VDC / 100M Ω
Energize Rate 15% (conduction time: 8s Max)
Insulation Grade Class B (130 ° C)
Attractive Force
DC12V Stroke: 5mm
(รูปใช้อ้างอิงขนาดเท่านั้น สายมีแค่ 2 เส้น คือไฟเลี้ยง) ![]() ![]() ![]() ![]() |
