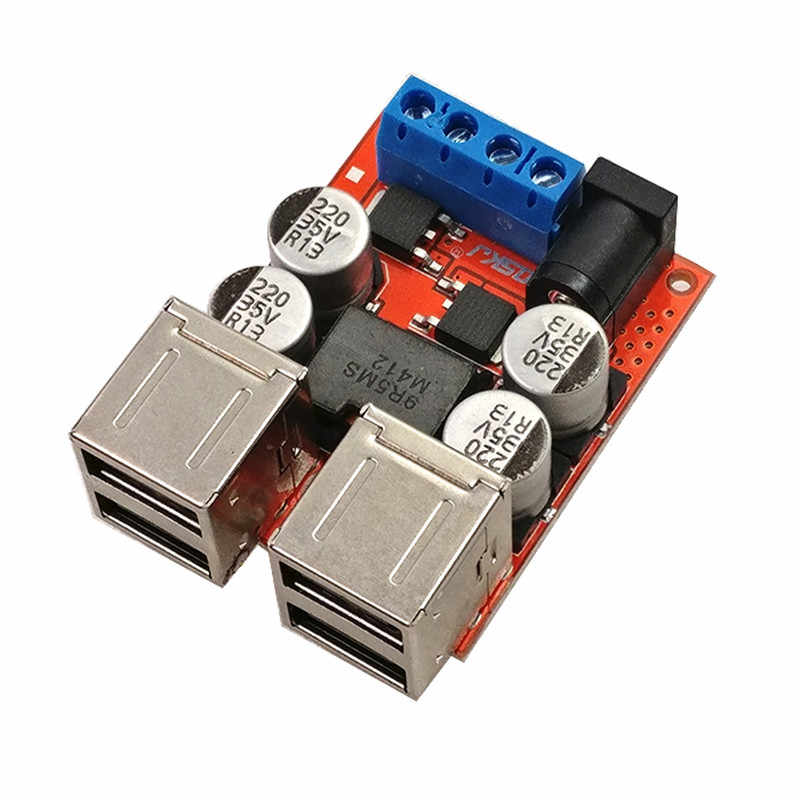

Product characteristics:
1. 4 independent dedicated charge management IC, can effectively support a variety of mobile phones for maximum current charging, charging fast, safe and reliable.
2. Charge Recognition IC is compatible with Apple's Android line of products, most mobile phones can achieve the fastest charging speed.
3. support 4 way USB at the same time 2A current charging, large current charge fast, the total output current can reach 8A.
4. MOS input reverse connection protection is adopted to maximize conversion efficiency and reduce wastage.
5. output with overvoltage protection to see effective protection of mobile phones.
6.8-35V ultra wide input voltage, 12V 24V car can be perfectly supported.
7. synchronous rectification scheme can effectively reduce calorific value and increase efficiency, and the highest efficiency can reach 96%.
8. the industry has advanced flat line high current inductance, high current heating and high conversion efficiency.
9.4 high quality chip capacitors, and then increase the capacity of MLCC capacitors. The output ripple is lower and the interference is smaller.
10. high quality double-layer gold plated USB port, life expectancy is 2 times that of ordinary USB.
11. default delivery is output voltage of 5.2V.
Module parameters:
Input voltage: DC 8-35V
Input current: 5.5A
Output voltage: 5.2V
Output current: the total maximum 8A, the current is adaptive, and the maximum charge of the mobile phone is 2A.
Dynamic response speed: 300US (load flow variation 5%)
Conversion efficiency: 95% (12V 5.2V3.5A measured, efficiency and pressure difference and load size).
Load adjustment rate: 0.2-0.3% (10%-50% load 12V input measured)
Ripple & noise: 120mVP-P (20MHz bandwidth 12V to 5.2V3A)
Switching frequency: 100KHz
No load current: 18mA (measured by 12V car 5V)
Connection mode: IN input OUT input terminal DC block.
Fixed mode: M3*1 M2*2
Net weight: about 36 grams.
Support equipment:
Mobile phones, digital cameras, tablet computers, navigators, traffic recorder, and other devices that need USB power supply. It can charge 4 phones at the same time, with a total current of 4 8A.
Multiple input and output modes, support terminal input, DC seat input, output support 4 * USB output, terminal output 5V.
Appearance size:
54 (long) *39 (wide) *21 (high) mm (containing USB port)

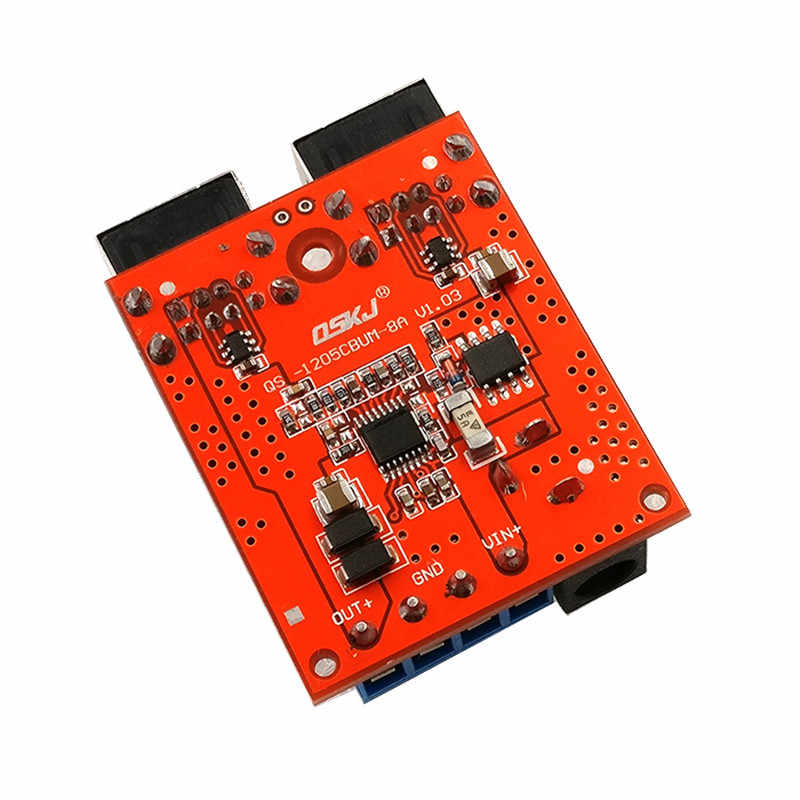

Pin mode:
V + input positive pole, GND common ground, outt + output positive pole
Matters needing attention:
(1) do not use overvoltage and overload, otherwise the battery and power will be damaged.
(2) the module can only reduce the voltage, not boost, and can not supply the electrical equipment which is higher than the input voltage.
(3) In order to prolong the service life of the power supply, it is necessary to pay attention to ventilation and heat dissipation when working with large current and high power for a long time.
(4) do not work at a full load for a long time. Please keep 20% allowance for continuous work and pay attention to ventilation and heat dissipation. ![]() ![]() ![]() |
