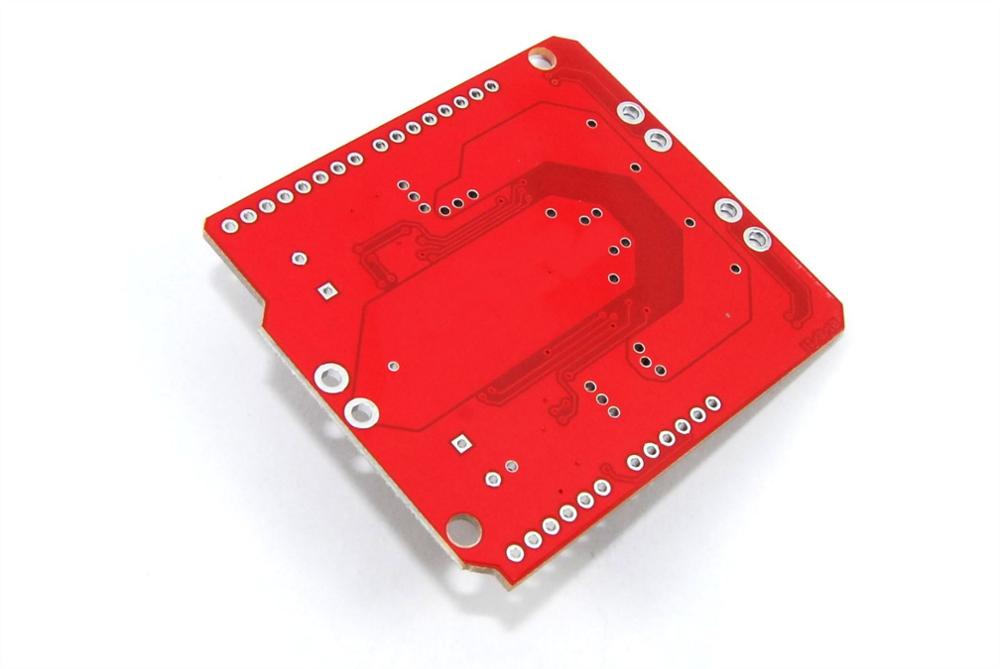

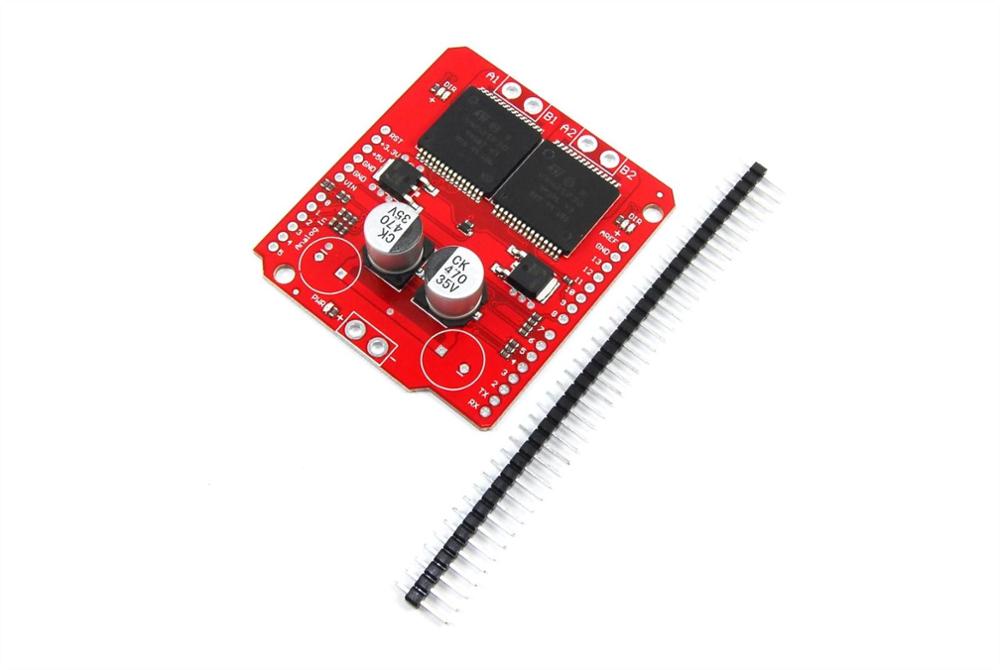

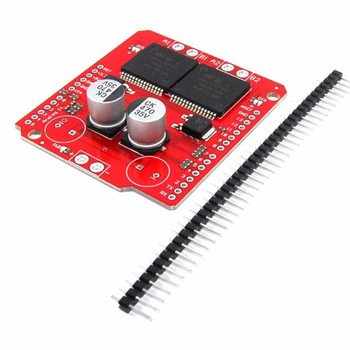

บอร์ดขับมอเตอร์ 30A Monster Moto Shield VNH2SP30 stepper motor driver module 30A for arduino

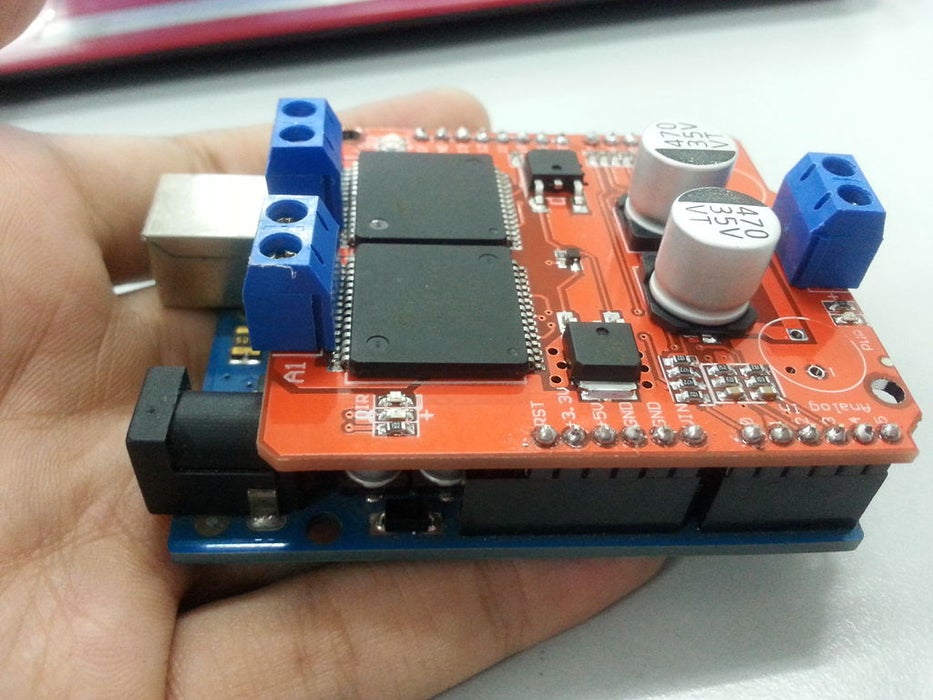

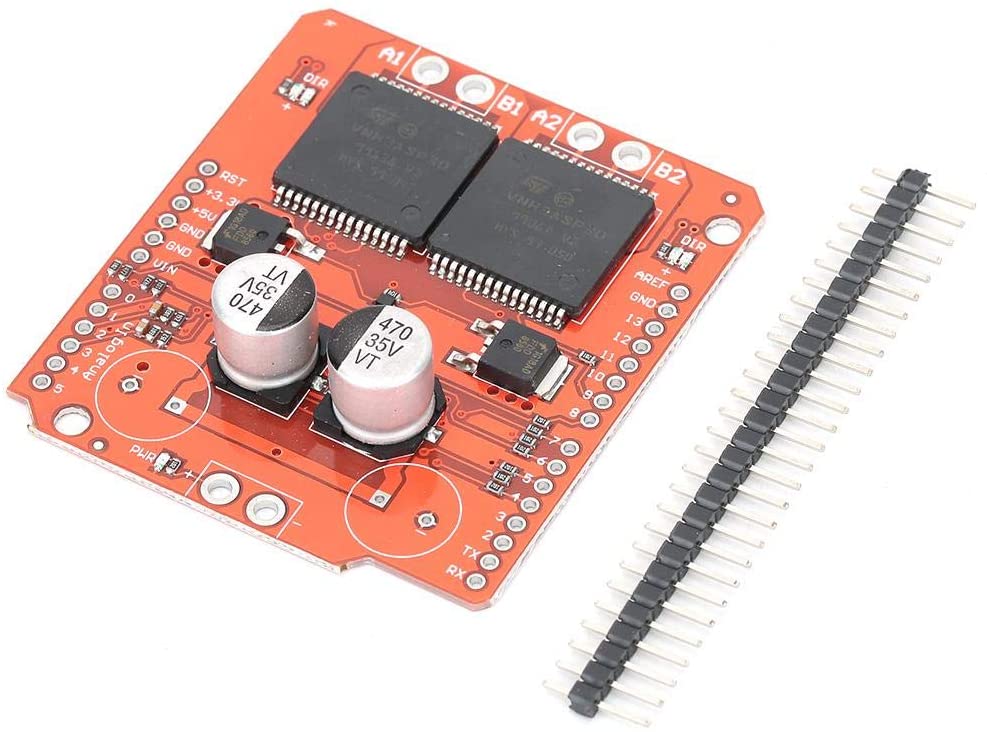

พินต่างๆบนบอร์ด Monster Moto Shield VNH2SP30

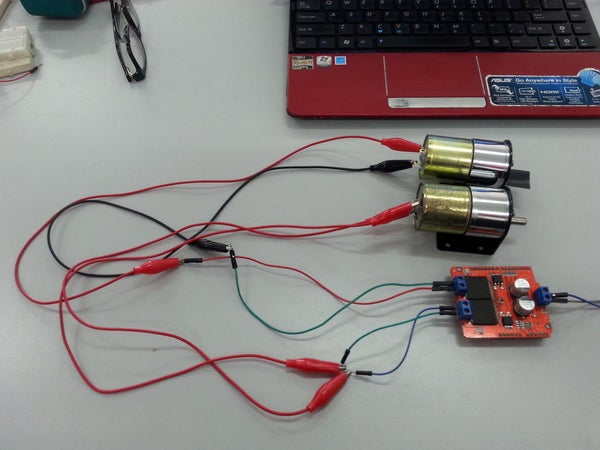

ตัวอย่างวิดีโอการใช้งาน Monster drive VNH2SP30 กับมอเตอร์ 2 ตัว





ข้อมูลเพิ่มเติม

Datasheet
Schematic


รายละเอียดเพิ่มเติม

High current 30A VNH2SP30 stepper motor drive module High current 30A stepper motor drive

• Maximum input voltage: 16V
• Peak drive current: 30A
• Sustainable start current: 14A
• Maximum PMW frequency: 20 kHz
• The output impedance is only 19m Ω
• Current can be detected by arduino analog input pin
• With over temperature protection, over voltage and under voltage protection

/*  MONSTER MOTOR SHIELD TEST CODE
  www.14core.com /
*/

#define MtrBrake 0
#define ClockWise   1
#define CClockWise  2
#define GndBreak 3
#define CounterSenseThresHold 100

/*  VNH2SP30 pin definitions
  xxx[0] controls '1' outputs
  xxx[1] controls '2' outputs */


int inApin[2] = {7, 4};  // INA Clockwise Controll
int inBpin[2] = {8, 9}; // INB Counter-clockwise Controll
int pwmpin[2] = {5, 6}; // PWM (Pulse with modulation ) Input
int cspin[2] = {2, 3}; // CS Current sense for analog input
int enpin[2] = {0, 1}; // EN Status of switches output (Analog pin)

int statpin = 13;

void setup()
{
 Serial.begin(9600);

 pinMode(statpin, OUTPUT);

 // Initialize digital pins as outputs
 for (int i = 0; i < 2; i++)
 {
   pinMode(inApin[i], OUTPUT);
   pinMode(inBpin[i], OUTPUT);
   pinMode(pwmpin[i], OUTPUT);
 }
 // Initialize braked
 for (int i = 0; i < 2; i++)
 {
   digitalWrite(inApin[i], LOW);
   digitalWrite(inBpin[i], LOW);
 }
 // motorGo(0, ClockWise, 255);
 // motorGo(1, CClockWise, 255);
}

void loop()
{
 motorGo(0, ClockWise, 255);
 motorGo(1, CClockWise, 255);
 delay(500);

 motorGo(0, CClockWise, 255);
 motorGo(1, ClockWise, 255);
 delay(500);

 if ((analogRead(cspin[0]) < CounterSenseThresHold) && (analogRead(cspin[1]) < CounterSenseThresHold))
   digitalWrite(statpin, HIGH);
}

void motorOff(int motor)
{
 // Initialize the brake
 for (int i = 0; i < 2; i++)
 {
   digitalWrite(inApin[i], LOW);
   digitalWrite(inBpin[i], LOW);
 }
 analogWrite(pwmpin[motor], 0);
}

/* Monster Motor will set a motor going in a specific direction
  the motor will continue turns in that direction, at that speed
  until told to do otherwise.

  Motor: this should be either 0 or 1 will selet which of the two motors to be controlled

  Direct Should be between 0 and 3, with the following result

  0 - Brake to VCC
  1 - Clock wise
  2 - Counter Clockwise
  3 - Brake to GND

  PWM (Pulse with Moduleation) should be a value between 0and 1024, higher the number, the faster turns

*/

void motorGo(uint8_t motor, uint8_t direct, uint8_t pwm)
{
 if (motor <= 1)
 {
   if (direct <= 4)
   {
     // Set to INA[motor]
     if (direct <= 1)
       digitalWrite(inApin[motor], HIGH);
     else
       digitalWrite(inApin[motor], LOW);

     // Set to INB[motor]
     if ((direct == 0) || (direct == 2))
       digitalWrite(inBpin[motor], HIGH);
     else
       digitalWrite(inBpin[motor], LOW);

     analogWrite(pwmpin[motor], pwm);
   }
 }
}
