Category | Temperature / Humidity sensor |
Type | New item |
Condition | |
Type | Pre-owned Items |
Condition | |
Item status | |
Prepare duration | |
Join promotions | |
Information |
Item weight
Barcode
Created time
Last updated on
|
Item description |
เซนเซอร์วัดอุณหภูมิและความชื้น ทำงานที่แรงดัน 1.8 - 6.0 V วัดความชื้นด้วยความละเอียด 0.024% และอุณหภูมิด้วยความละเอียด 0.01 องศาเซลเซียส ให้สัญญาณออกเป็น I2C

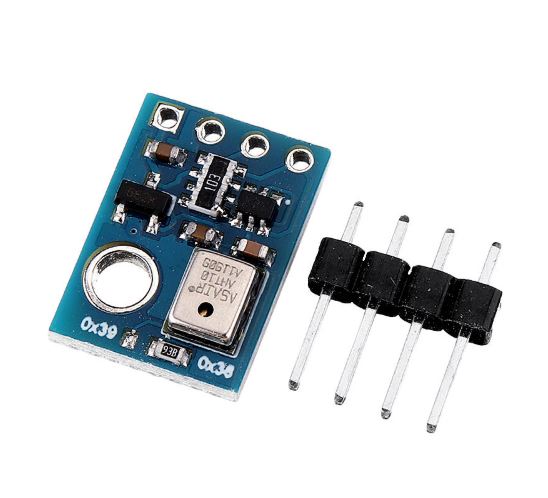

Introduction: The AHT10, a new generation of temperature and humidity sensors, sets a new standard in size and intelligence: it is embedded in a dual-row flat leadless SMD package for reflow soldering with a 4 x 5mm bottom and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I 2C format. The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors. The first generation of temperature and humidity sensors have been improved to make them more stable in harsh environments.
Characteristic:
1. Module size: 16*11 mm
2. Interface type: I2C
3. Working voltage: 1.8 - 6.0 V
4. Interface size: 4*2.54mm pitch
5. Humidity accuracy: typical ± 2%
6. Humidity resolution: 0.024%
7. Temperature accuracy: typical ± 0.3 ° C
8. Temperature resolution: Typical 0.01 °C
9. Working temperature: -40°C--85°C
![]() ![]() ![]() ![]() |
Conditions |
|
Tags |
Every item comes with a 30-day warranty. However, there are certain conditions that apply:
The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).
The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).
The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.
Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:
Please note that the store reserves the right to make the final decision regarding product replacement or refund.
