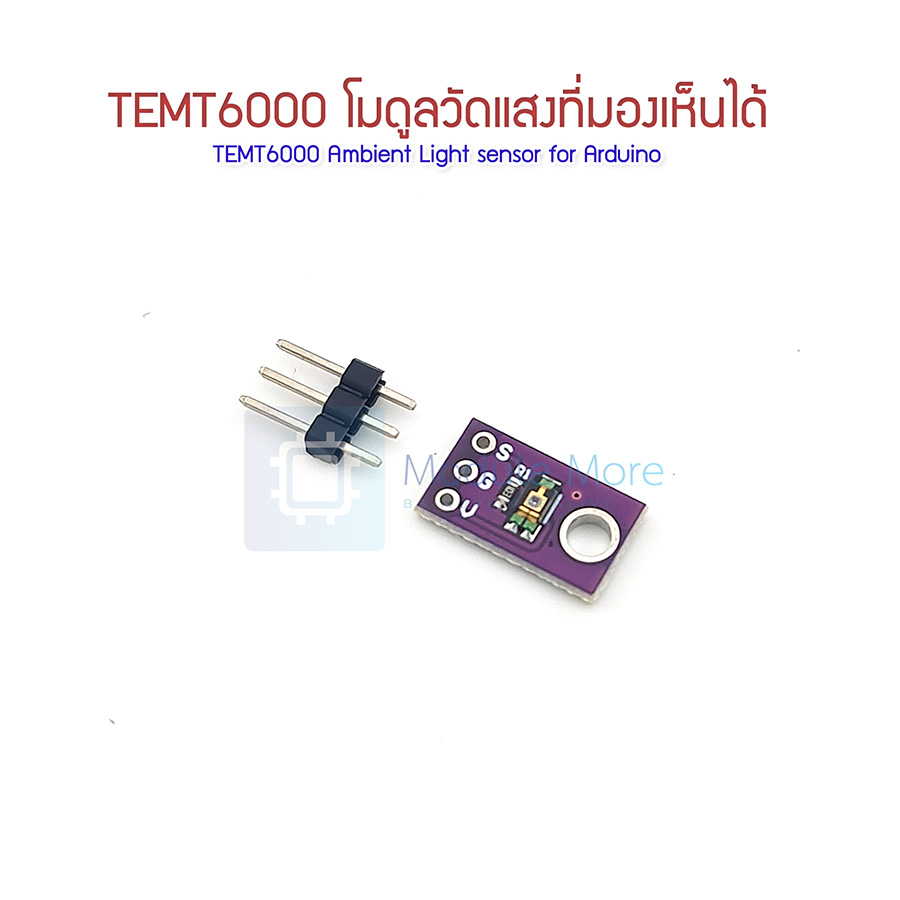

เซนเซอร์วัดแสง TEMT6000 เป็นเซนเซอร์วัดแสงที่วัดได้สูงสุด 570nM ซึ่งครอบครุมแสงที่มองเห็น (visible light) เกือบทั้งหมด เซนเซอร์นี้จะไม่ตอบสนองต่อแสง infrared ดังนั้นเหมาะกับการใช้วัดแสงที่เราเห็นจริงๆ
เซนเซอร์นี้ให้สัญญาณออกเป็น analog ง่ายต่อการใช้งานกับ Arduino สามารถใช้คำสั่ง analogRead รับค่าได้ทันที ตัวอย่าง Code Arduino uno และ tempt6000 /** * www.arduinoNa.com * Arduino uno - TEMPT6000 * VCC - 5v * GND - GND * A0 - OUT */ int temt6000Pin = A0; void setup() { Serial.begin(9600); Serial.println("ArduinoNa TEMPT6000 test start"); } void loop() { int value = analogRead(temt6000Pin); Serial.print("Light out = "); Serial.println(value); delay(100); } TEMT6000 highest sensitivity sensor is 570nm, which has a wide ± 60 ° angle of half sensitivity. Although the device is very sensitive to ambient light, but it can inhibit the infrared (IR) spectrum, which can provide a similar "eye" of the spectral response of greater visibility. - Max.sensitivity: 570 nm
- Semi sensitivity angle: +/-60 degree
- Could restrain infrared (IR) spectrum
