DY-AP3015 Introduction: Dual 30W stereo digital power amplifier board, low noise, wide voltage power supply, reverse connection, short circuit, overheating multiple protection mechanism, with volume switch, 3.5mm audio input hole and KF301 5.0mm terminal block for easy wiring. Modified DIY amplifier.

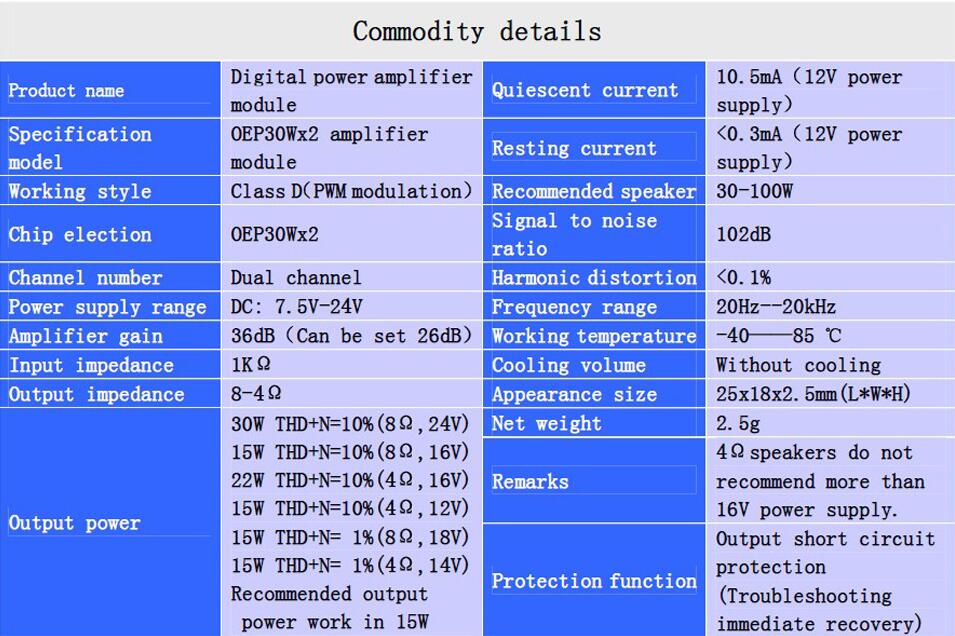

Parameter:
Work Voltage:DC 8V-24V
Work Mode:Class D(PWM)
Channel:Dual channel

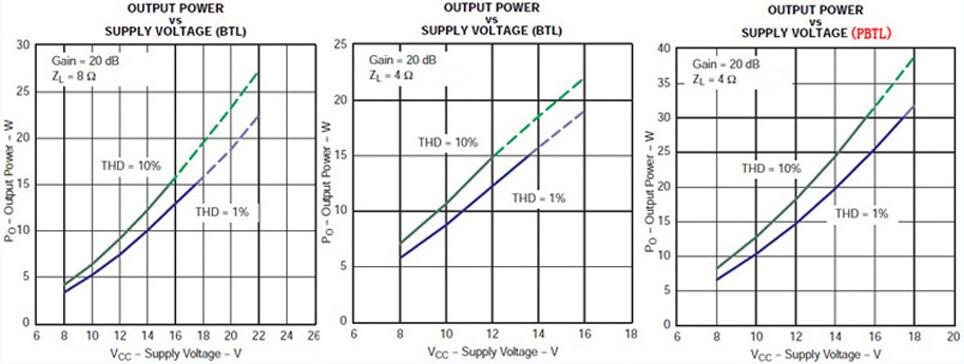

Output Power:
Output power 18W*2 at 12V 4ohm
Output power 10W*2 at 12V 8ohm
Output power 15W*2 at 16V 8ohm
Output power 20W*2 at 20V 8ohm
Output power 30W*2 at 24V 8ohm(Need add extra heat sink!)
Match speaker(30W~150W):4ohm at 8V~12V; 8ohm at 8V~24V
Module protection mechanism:Reverse power protection; short circuit protection; self-recovery overheat protection

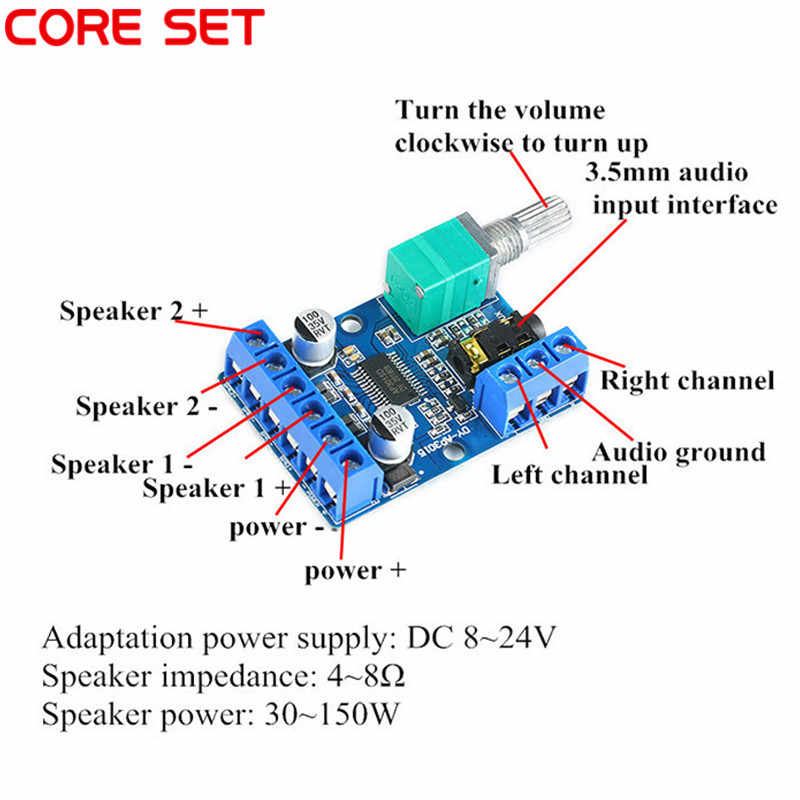

ตำแหน่งขาสัญญาณ ![]() รายละเอียดเพิ่มเติม ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
