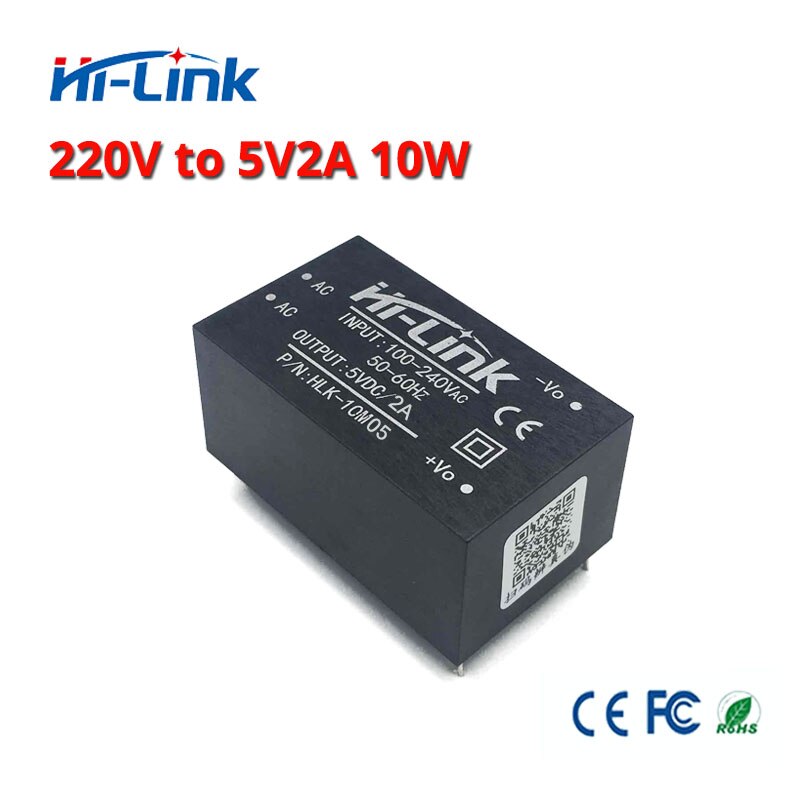

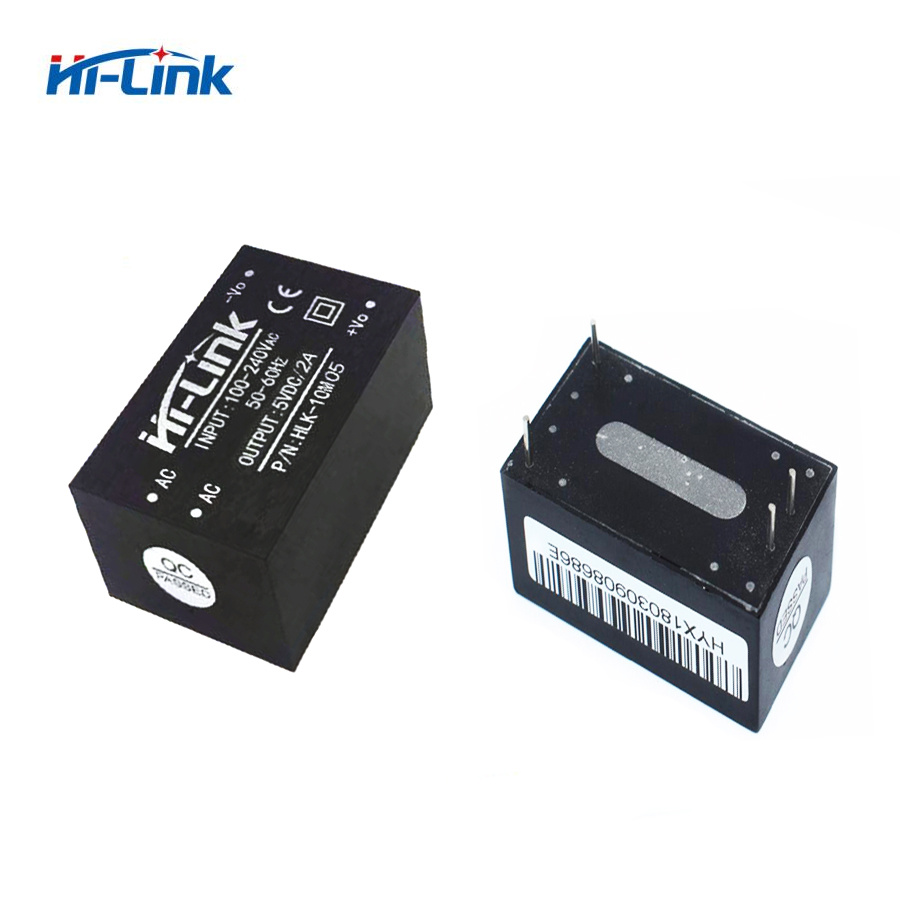

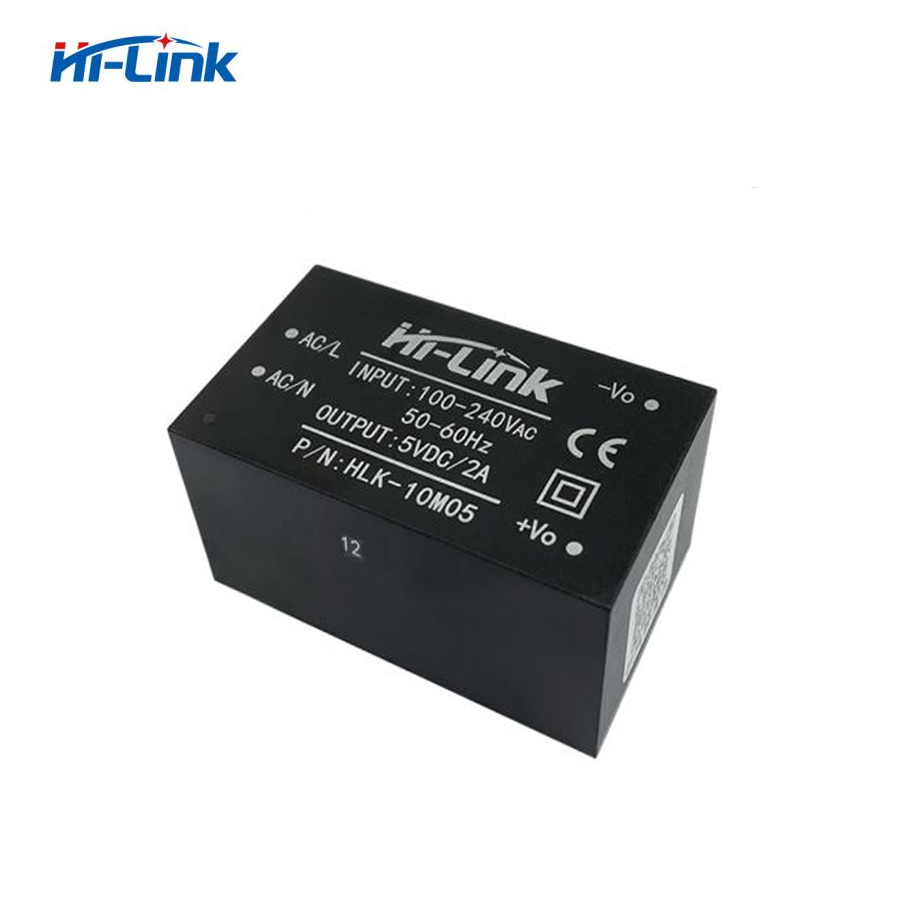

โมดูลแปลงไฟ 220v เป็น 5v 2A Hi-link HLK-10M12 Power supply 220v to 5V AC-DC ultra-small isolated
1. Product features:
2. Environment Condition
3.Electrical Characteristic 1. Input characteristics (test at room temperature 20 C).
2. Output characteristics (test at room temperature 20 C). 4.Safety Characteristics: 4.1 Products designed to meet UL, CE safety certification requirements. 4.2 Safety and electromagnetic compatibility Designed with the input of 2A UL certified insurance; PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level; Safety standards: Compliance with UL1012, EN60950, UL60950 Insulation voltage: I / P-O / P: 2500VAC Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 C 70% RH Conduction and radiation :comply with EN55011, EN55022 (CISPR22) Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV RF radiation Immunity: IEC / EN 61000-4-3 See Application Note 4.3 Temperature safety design At room temperature, the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90 C; Shell maximum surface temperature does not exceed 60 C      |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Conditions |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tags |
Exchange or return policy
Every item comes with a 30-day warranty. However, there are certain conditions that apply:
-
The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).
-
The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).
-
The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.
Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:
- Provide a detailed description of the damaged item(s).
- Mention any tests or experiments conducted by the customer.
Please note that the store reserves the right to make the final decision regarding product replacement or refund.
