Item description

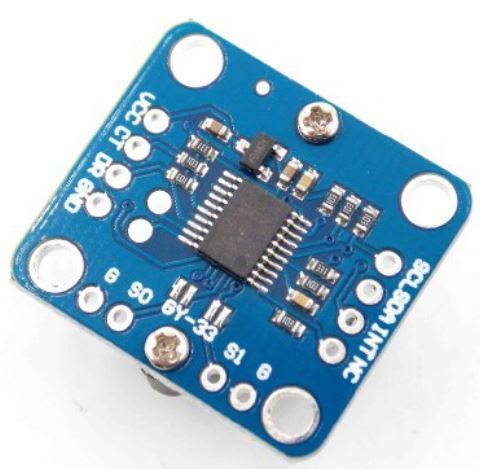

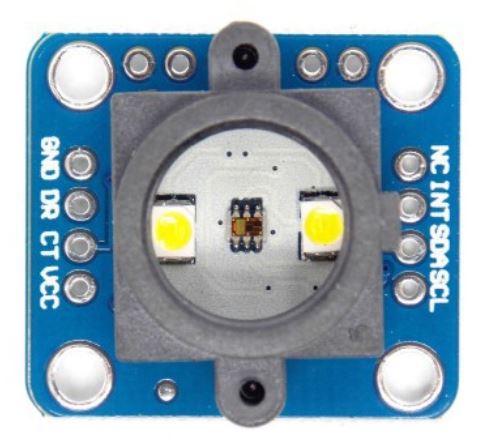

It is a low-cost color identification module; Working voltage is 3~5V; Lower power consumption, small size and easy installation; Working principle: LED light on the object that to be tested and then light return for filter test to know the color according to RGB ratio value. Data reading mode: UART (TTL level) or IIC (2 wire); Baud rate of serial port: 9600bps / 115200bps; Output modes: continuous and check; With power off memory; Can identity 7 kinds of colors without calculating RGB value; Suitable for different working environment and connect to MCU or computer; Can set independent sensor chip mode as a simple sensor module, MCU does not deal with data.

Features:
high performance
built-in MCU calculating color
IIC, serial port communication mode
LED light is adjustable
Equipped with related upper computer software

Application:
smart robot, teaching lab instrument, production line product test, colorimeter,  LED color test

Specification:
Measuring range: RGB 0~255
Response Frequency: 10Hz
Working voltage: 3~5V
Working temperature: -20~85'C
Storage temperature: -40~125C
Dimensions 1.02 in x 0.98 in x 0.51 in (2.6 cm x 2.5 cm x 1.3 cm)
Weight 0.18 oz (5 g)
