Features:

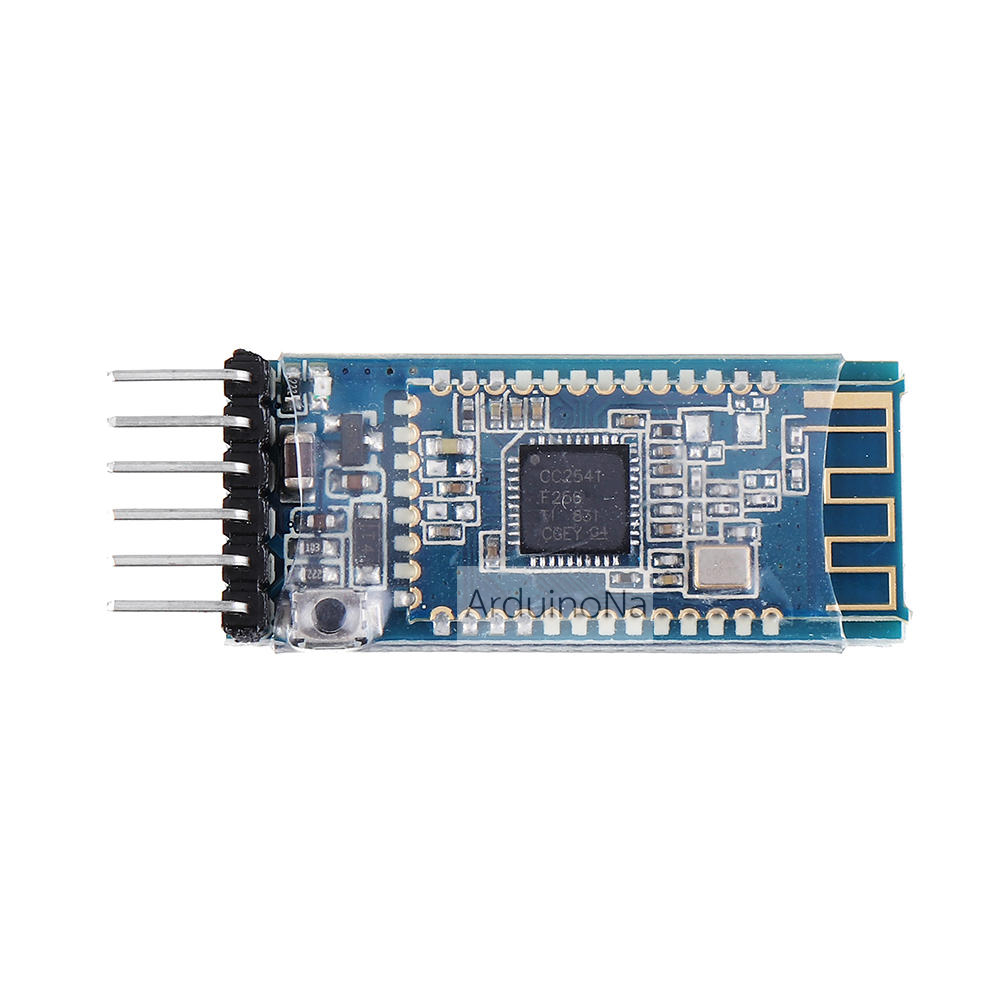

- Bluetooth 4.0 module Serial port extraction bluetooth BLE CC2540 CC2541
- The bluetooth module has a backplane, and the HM-10 module is used on this module.
- 5V power supply or 3.3V power supply. The serial port level is the same as the power supply voltage.
- Built-in level shifting function.

Specifications:

- Input voltage: 3.3V/5V
- If a 5.0V MCU is used to communicate with the bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V.
- If a 3.3V MCU is used to communicate with the bluetooth module, the 3.3V power port is powered, and the RX TX logic level is 3.3V.


  • Chipset based on CC2541
  •  Bluetooth Class 2
  •  Industrial level Bluetooth module SPP
  •  Flash 256Kb
  •  Integrated chip antenna
  •  Power supply: + 3.3 VDC 50 mA
  •  Working temperature: ‑5 C to + 60 C
  •  Frequency of operation: 2.4 GHz ISM Band
  •  Modulation method: GFSK (Gaussian Frequency Shift keying)
  • 40 channels, 2MHz, 3 fixed transmission channels, 37 automatic frequency adaptation channels through data channels;
  •  Output power adjustment (-23dBm ~ 6dBm); command AT +
  •  Transfer speed: asynchronous: 6 kbps synchronous: 6kbps
  •  Security features: authentication and encryption
  •  Power consumption: automatic sleep mode, standby current 90uA, transfer of 8.5mA

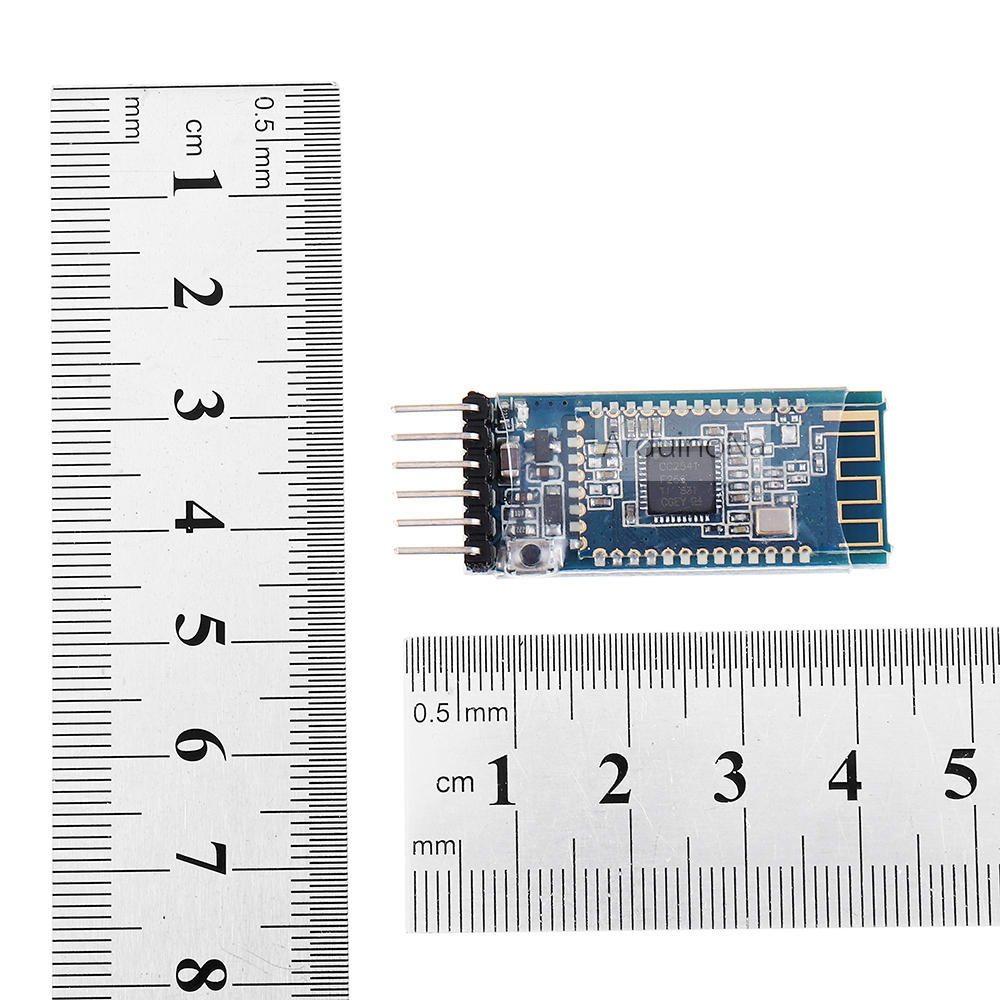

  •  PCB size: 37x16mm
  •  The default baud rate is 9600
  •  The default PIN is 000000
  •  AT commands require end-of-line characters (\ r \ n)
  •  Firmware is reported as Firmware V3.0.6, Bluetooth V4.0 LE
  •  The firmware is from Bolutek
  •  AT + HELP — list of available commands
  •  The modules report themselves as BT05
  •  The status pin is normally LOW and turns HIGH when the device is connected
  •  Pin EN does not seem to do anything

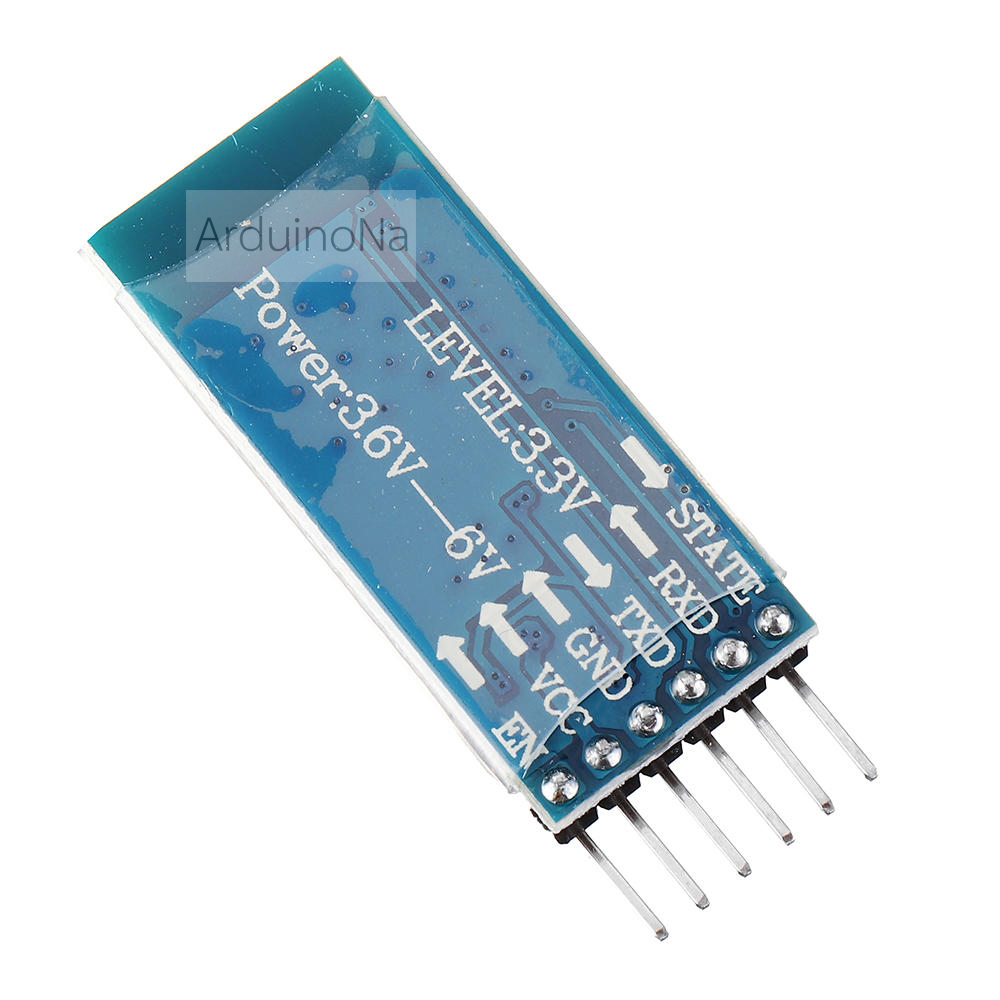

Pin:

RX, the serial port receiving end of the bluetooth module is connected to the TXD of the MCU.

TX, the serial port sender of the bluetooth module is connected to the RXD of the MCU.

GND, ground terminal negative

3.3V, 3.3V power supply at the power supply

5V, power supply 5V power supply
