Features:

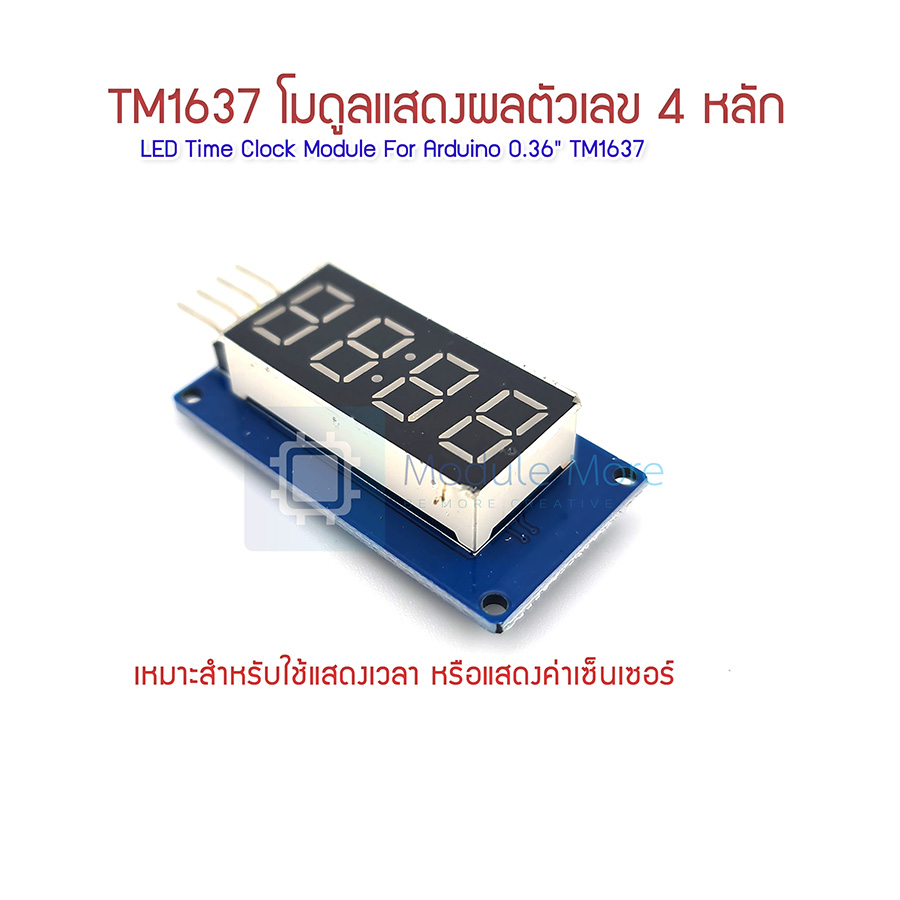

This is a 0.36 inches 4-digit common anode red display module with TM1637 driver chip.
It just need 2 signal wire to be controlled by single-chip microcomputer.
Digital tube has 8 adjustable grey levels.
The voltage of control interface can be 5V or 3.3V.

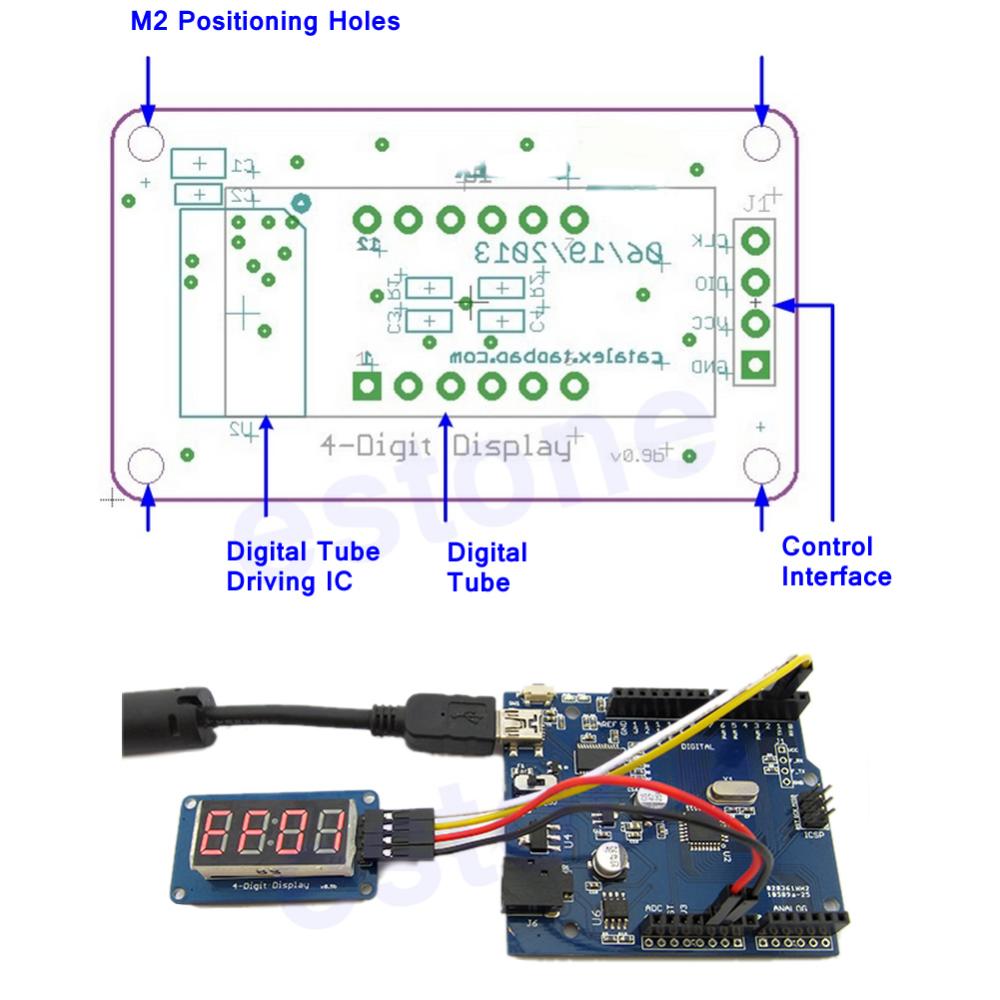

Designed with 4 mounting holes, it is convenient to install.

Specifications:
Voltage: 3.3V~5.5V (5V is recommended)
Current: 30A~80A
Size: 47 x 24 x 12mm / 1.85 x 0.94 x 0.47"

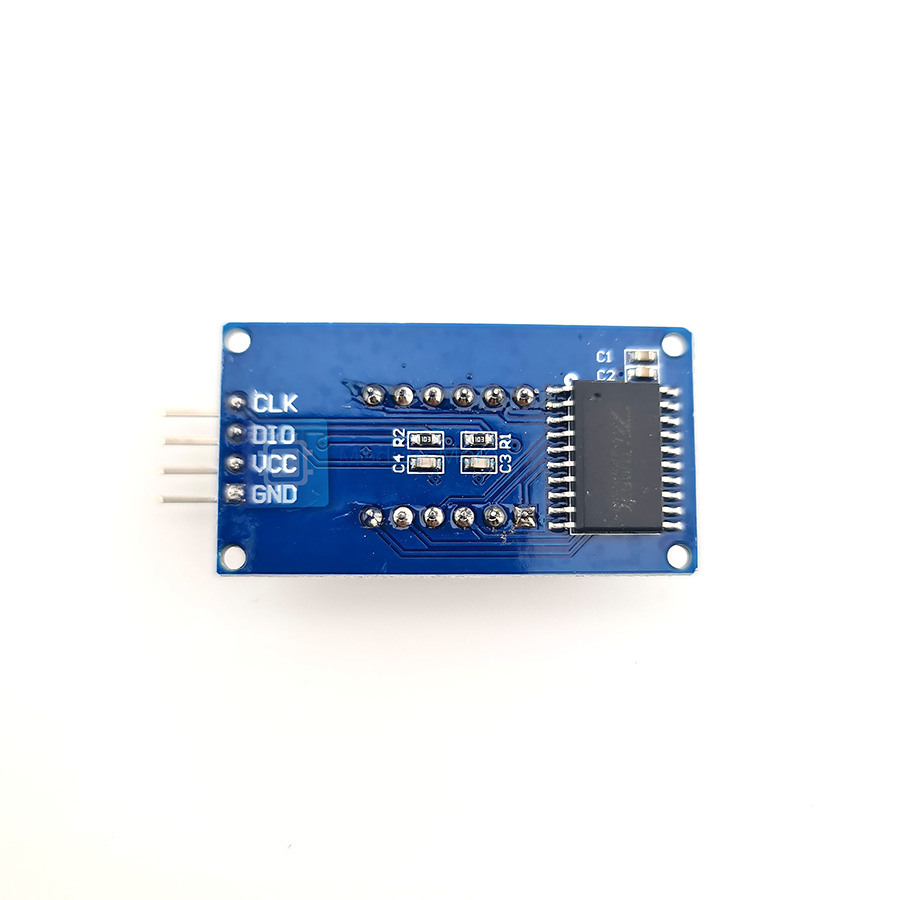

GND: Ground
VCC: Power supply
DIO: Data input/output
CLK: Clock signal


ตัวอย่างวิธีการใช้งาน โมดูลแสดงผลตัวเลข 4 หลัก





วิธีการติดตั้ง Library TM1637 สำหรับแสดงผลตัวเลข LED แบบ 7segment 4 ตัว
Library ของคุณ Avishay Orpaz ซึ่งสามารถเพิ่มได้จาก
Arduino IDE -> Tools -> Manage Libraries -> พิมพ์ว่า TM1637
เลือก TM1637 by Avishay Orpaz

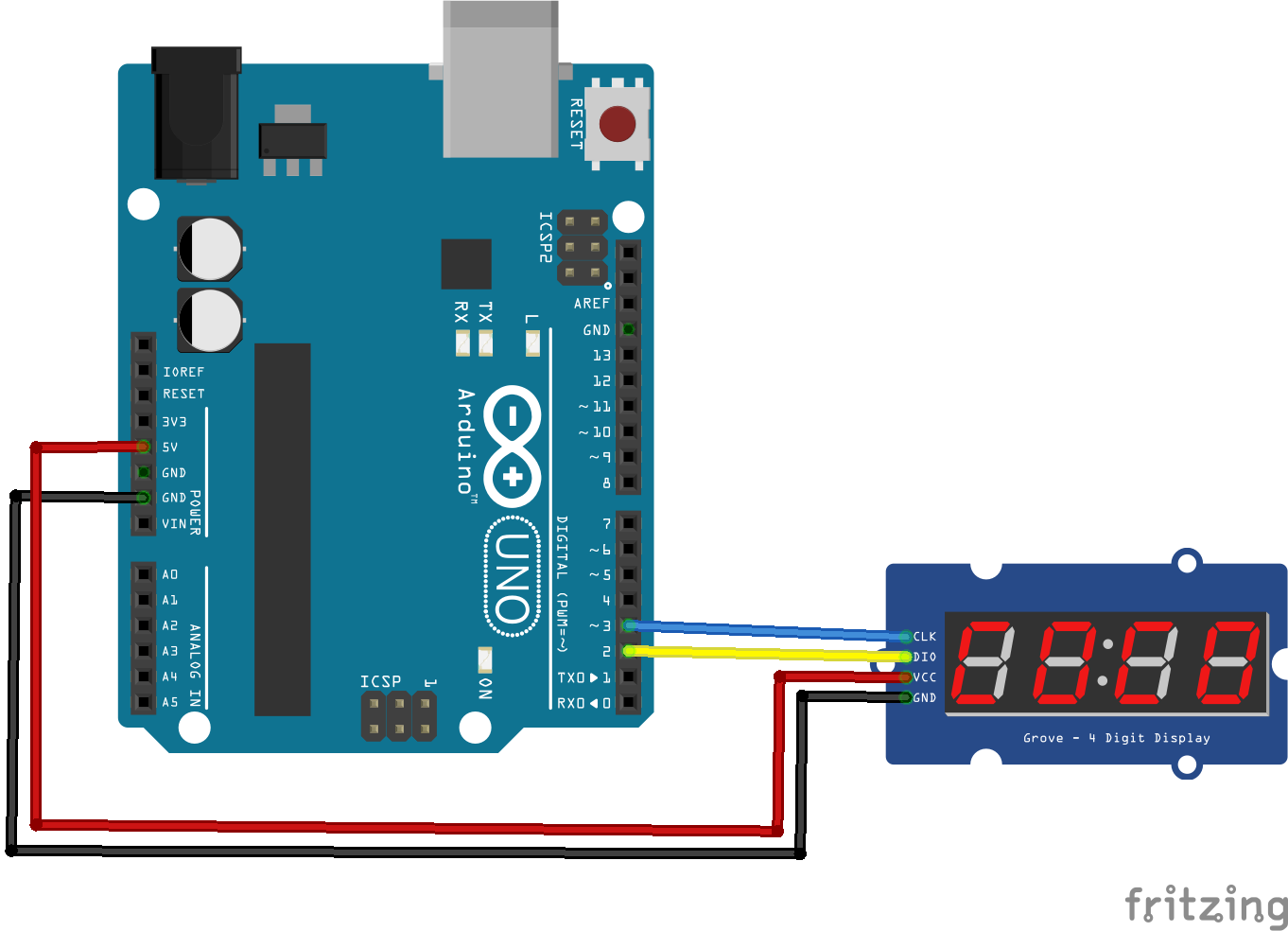

วิธีการต่อโมดูล TM1637 (Wiring) เข้ากับ Arduino Uno

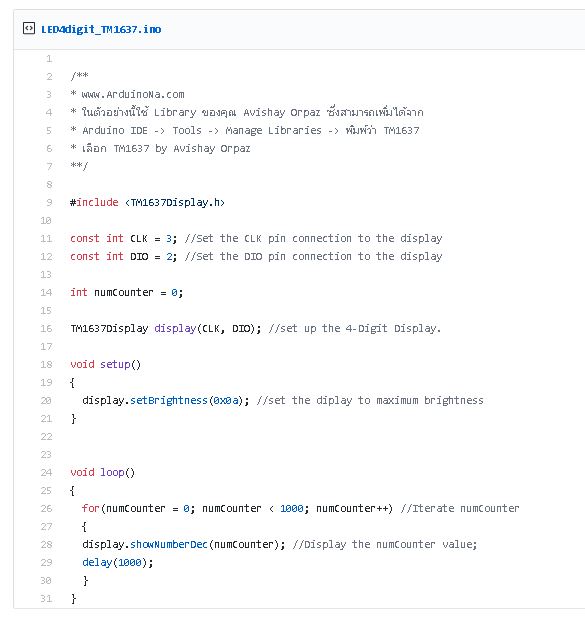

ตัวอย่าง Code สำหรับ TM1637



หากต้องการปรับระดับความสว่างหน้าจอ หรือเลือกแสดงเฉพาะส่วน สามารถศึกษาได้จากตัวอย่างแบบ Advance นี้
