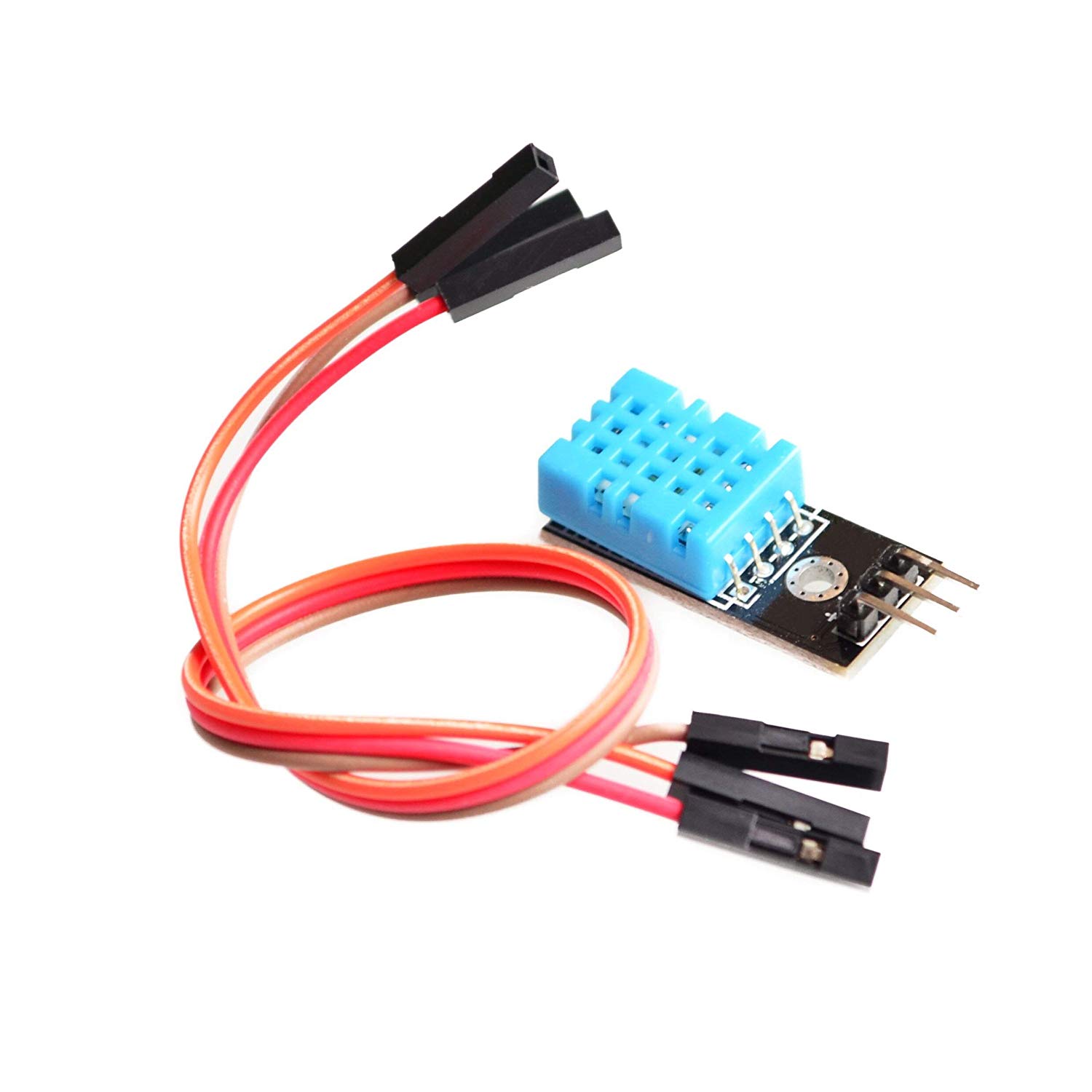

Single-bus digital temperature and humidity sensor DHT11 module electronic building blocks
1. Size: Length 28mmX Width 12mmX Height 7.2mm
2. Sensor Model: Aosong DHT11 Temperature and Humidity Sensor
3. Working Voltage: DC 5V
Characteristics:
1. Humidity measurement range: 20 --- 90% RH
2. Humidity measurement accuracy: ± 5% RH
3. Temperature measurement range: 0 --- 50 ℃
4. Temperature measurement accuracy: ± 2 ℃
5. Working voltage: DC5V / 3.3V
6.Digital signal output
7.Data port with pull-up resistor
8. With 3mm fixing screw holes for easy installation
Wiring method: VCC → 3.3V / 5V positive pole
GND → power negative
DATA → Single chip IO port
Reminder: Do not connect VCC to GND, it will burn if connected. ![]() |
