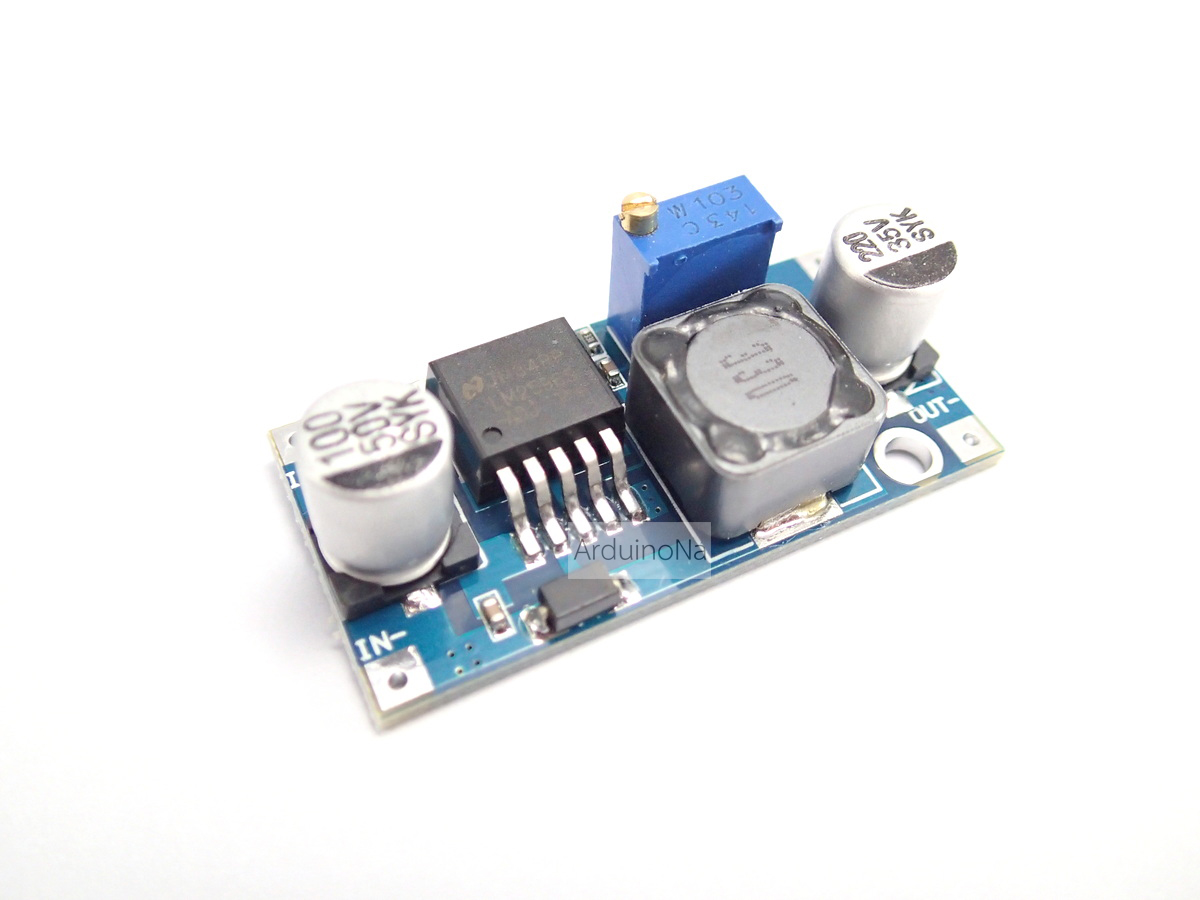

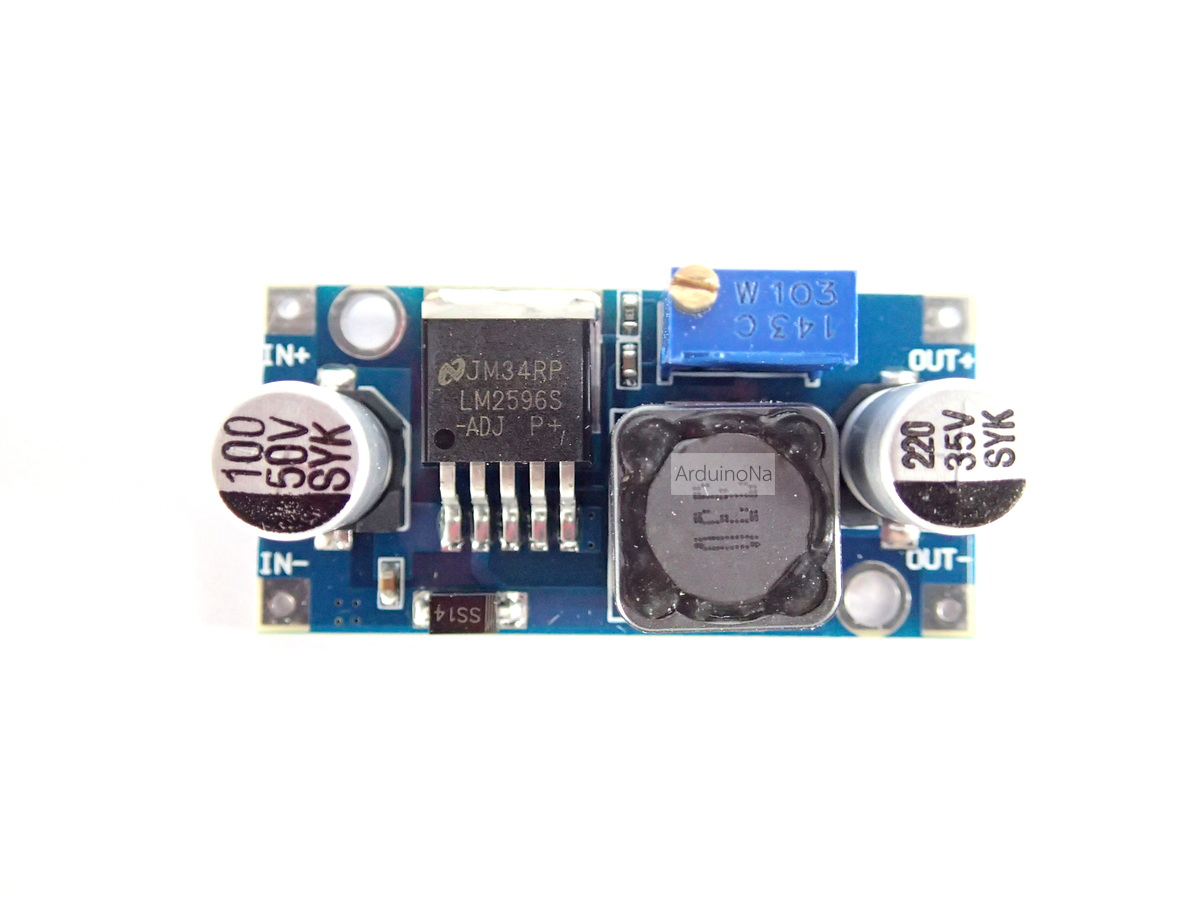

LM2596S DC-DC adjustable step-down power Supply module โมดูลลดแรงดันไฟ
สามารถลดแรงดันไฟจากแรงดันขาเข้า 3-40V เป็น 1.5-35V โดยให้กระแสต่อเนื่องถึง 2A  (สูงสุด 3A)

ปรับแรงดันขาออกได้ด้วยการหมุนตัวต้านทานปรับค่าได้ด้วยไขควงขนาดเล็ก
หมุนตามเข็มนาฬิกา : ปรับแรงดันขึ้น
หมุนทวนเข็มนาฬิกา : ปรับแรงดันลง

Datasheet

Description :
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Dynamic response speed: 5% 200uS
Specification:
Input voltage:3-40V
Output voltage:1.5-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:45*20*14mm(L*W*H)
