Category | Relay switch |
Type | New item |
Condition | |
Type | Pre-owned Items |
Condition | |
Item status | |
Prepare duration | |
Join promotions | |
Information |
Item weight
Barcode
Created time
Last updated on
|
Item description |
Specification:

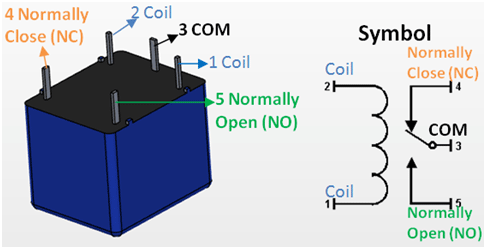

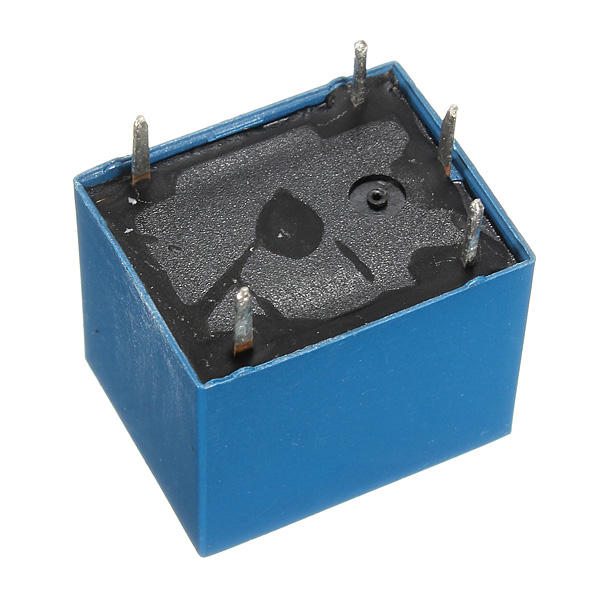

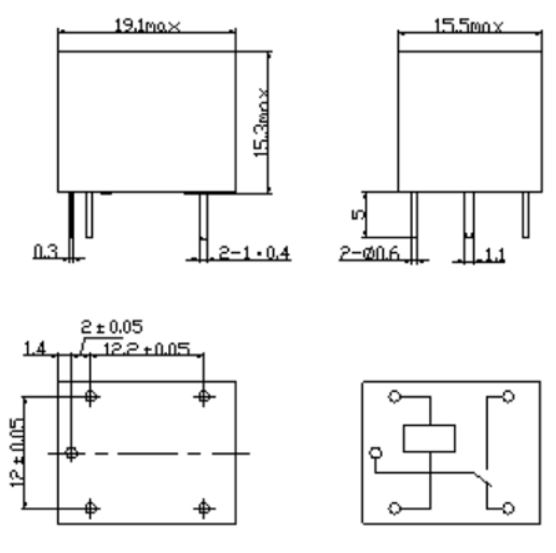

Model: SRD-5VDC-SL-C Coil voltage: DC 5V Coil resistance: 70Ω ~ 80Ω Contact resistance: 100Ω Max Operation time: 10msec Max Release time: 5msec Max Ambient temperature: -25°C to 70°C Operating humidity: 45 to 85%RH Operating current: 43mA ~ 46mA Release current: 15mA ~ 18mA Pin: 5Pin Insulation resistance: ≥100M (Ohm) Dielectric strength: Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min Between contacts: AC 1000V 50HZ ~ 60HZ/min Rated load:: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC Size: 1.8 x 1.5 x 1.6cm (L x W x H) ![]() ![]() ![]() ![]() |
Conditions |
|
Tags |
Every item comes with a 30-day warranty. However, there are certain conditions that apply:
The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).
The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).
The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.
Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:
Please note that the store reserves the right to make the final decision regarding product replacement or refund.
