รายละเอียดสินค้า

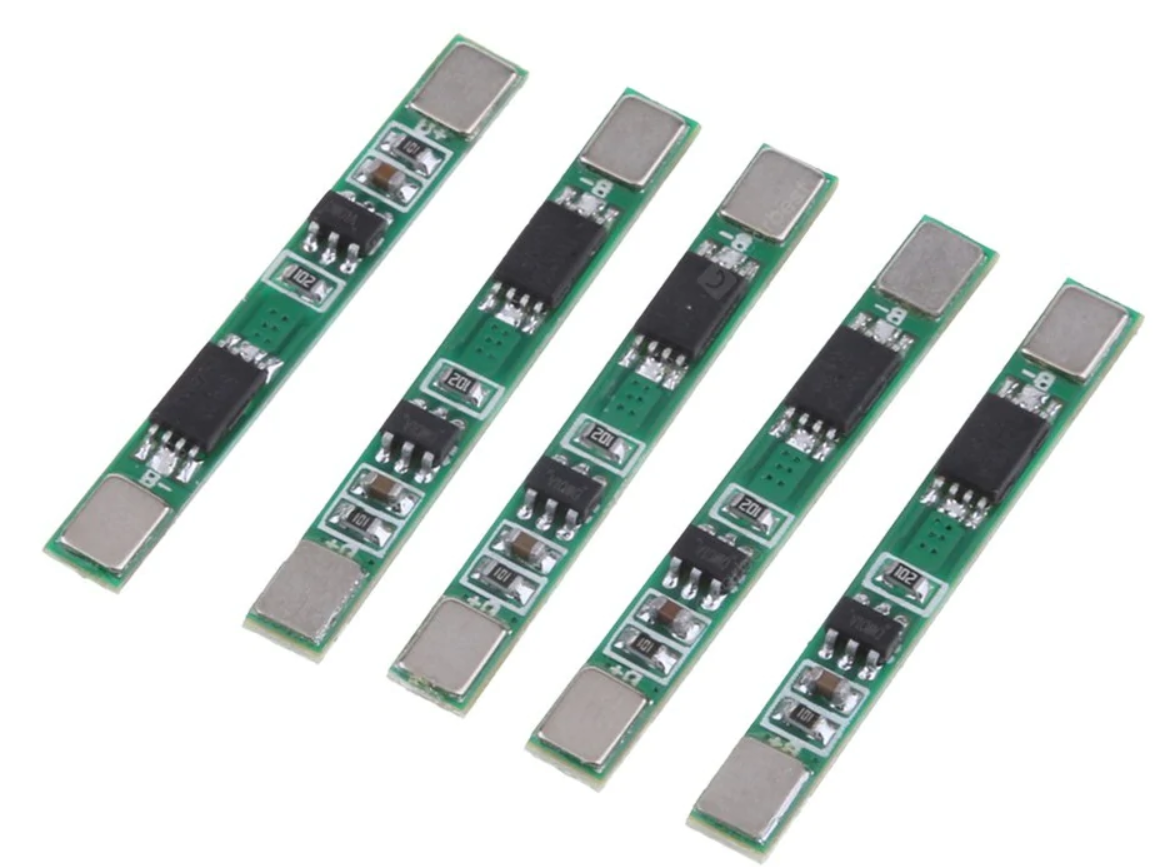

บอร์ดป้องกันไฟเกิน และไฟต่ำ สำหรับแบตเตอรี่ตระกูล Lithium ทั้ง LiPo และ Li-ion เหมาะกับแบตโดยเฉพาะแบบ 18650 บอร์ดจะทำการตัดไฟทันทีที่มีการชาร์ตเกิน หรือมีการจ่ายกระแสเกิน เพื่อป้องกันแบตเตอรี่เสียหายถาวรจากการใช้งานที่ไม่ถูกต้อง

วิธีการต่อกับแบตเตอรี่

   The main IC uses original Fujing imported components. With over-charge, over-discharge, over-current, short circuit and other protection functions, it is used for 3.7V lithium batteries with various capacities and shapes. Rich crystal protection IC, VISHAY, AOS, IR and other high-quality MOSFET, FR-4 low-temperature coefficient plate, well-designed, fine workmanship, comprehensive testing. The small size is suitable for many occasions requiring high integration and low cost. It can meet various performance requirements and ensure the absolute safety and reliability of the battery pack.

Technical Parameters:
  • Overcharge detection voltage: 4.25 ± 0.05V
  • Overcharge release voltage: 4.23 ± 0.05V
  • Overdischarge detection voltage: 2.54 ± 0.1V
  • Overcurrent detection current: 1-3A
The main function:

  Overcharge protection function, overdischarge protection function, short circuit protection function, overcurrent protection function.

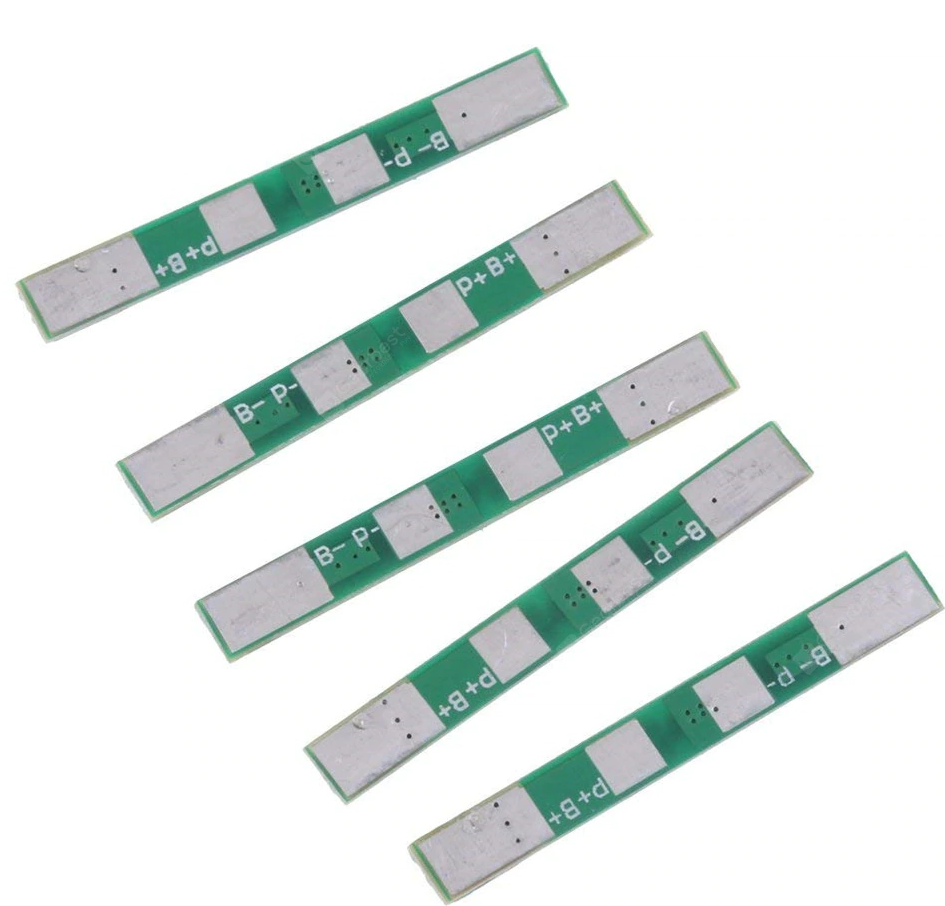

Wiring instructions:

B + is connected to the positive electrode of the battery.
B- Connect the battery negative.
P + is battery output input positive
P- for battery output input negative
