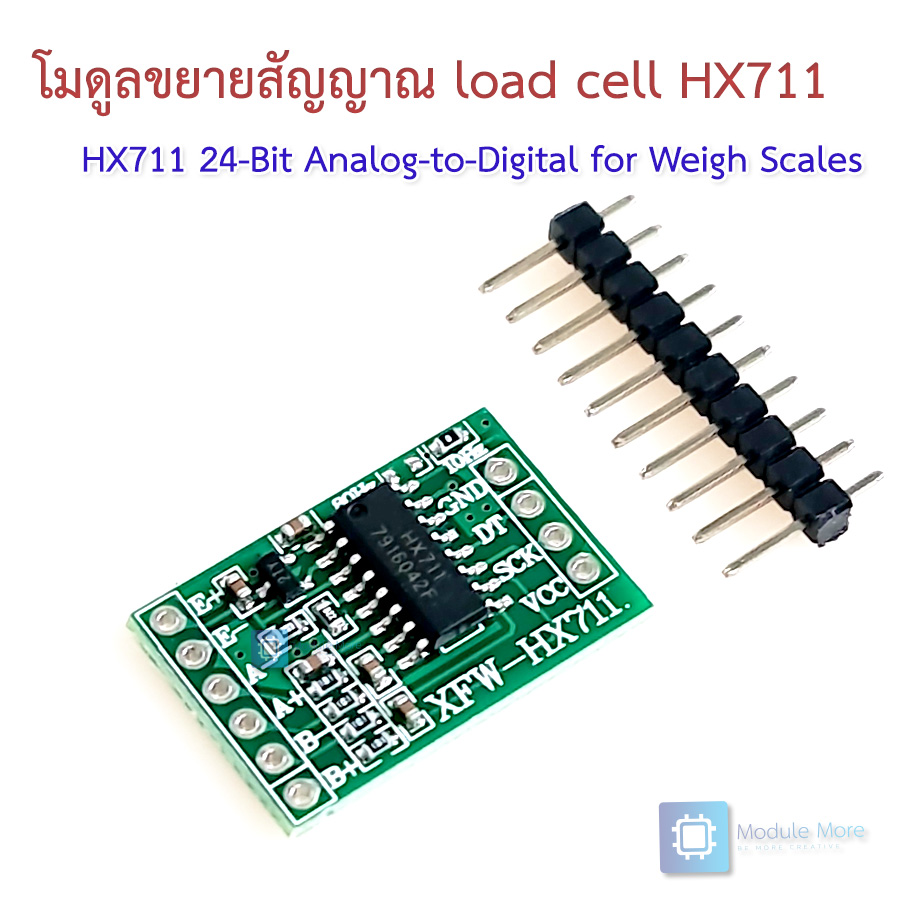

HX711 Load Cell Amplifier Description :

This module uses 24 high-precision A / D converter. This chip is designed for high-precision electronic scale and design, has two analog input channels, programmable gain of 128 integrated amplifier. The input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, load) sensor model is an ideal high-precision, low-cost sampling front-end module.

HX711 Load Cell Amplifier Specification :
Two selectable differential input channels
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Data Accuracy: 24 bit (24 bit analog-to-digital converter chip)
Refresh Frequency: 10/80 Hz
Operation supply voltage range: 4.8 ~ 5.5V
Operation supply Current: 1.6mA
Operation temperature range: -20 ~ +85℃

HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
HX711 24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales Load cell
Conditions
Tags

Exchange or return policy



Every item comes with a 30-day warranty. However, there are certain conditions that apply:

  1. The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).

  2. The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).

  3. The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.

Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:

  1. Provide a detailed description of the damaged item(s).
  2. Mention any tests or experiments conducted by the customer.

Please note that the store reserves the right to make the final decision regarding product replacement or refund.
