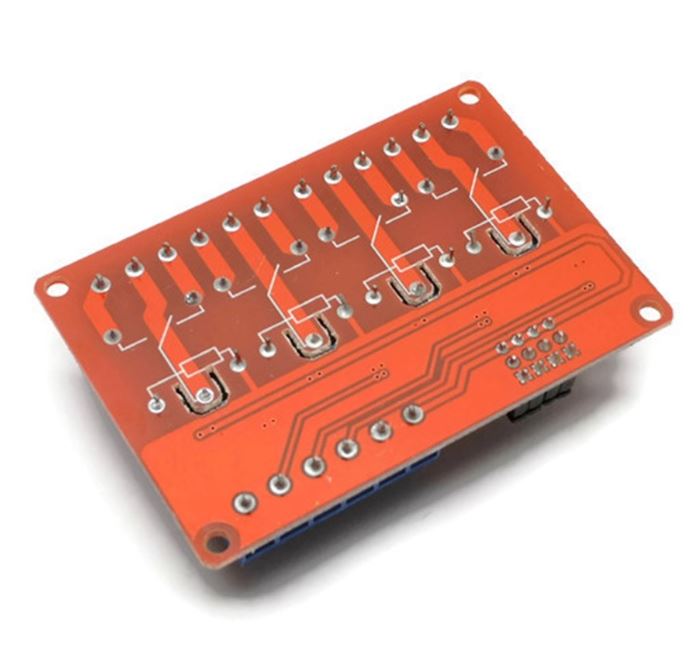

รีเลย์แบบ 4 ช่อง 5V relay module optocoupler isolation high and low level trigger MCU red board

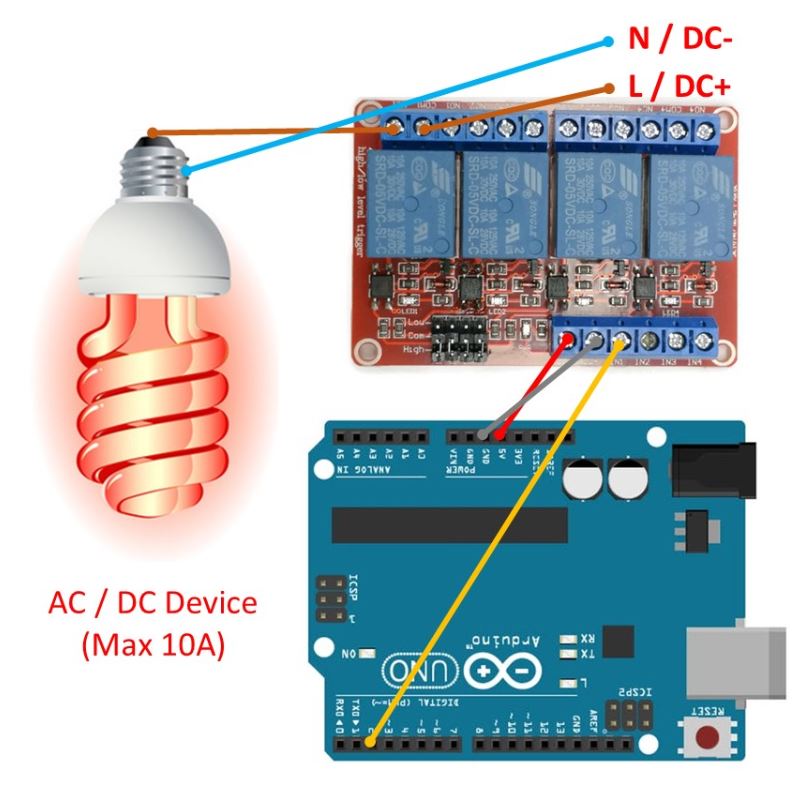

โมดูลรีเลย์บอร์ดแดง ที่ใช้ตัดต่อไฟเลี้ยงแบบ AC ได้ถึง 250V 10A หรือ DC ได้ถึง 30V 10A ตัวอย่าง Code Relay 4 ช่อง ด้วย Arduino
ตัวอย่าง Code Relay 4 ช่อง ด้วย ESP8266
Module description: 1. the module adopts good quality relay, which often opens the maximum load of interface: AC 250V/10A, DC 30V/10A;
2. using the patch optocoupler isolation, the driving ability is strong, the performance is stable, the trigger current 5mA;
3. The operating voltage of the module is 5V, 9V, 12V and 24V.
4. the module can be triggered by high level or low level by the jump line.
5. Fault-tolerant design, even if the control line is broken, the relay will not move.
6. power indicator light (green), relay status indicator (red)
7. The interface design is humanized. All interfaces can be connected by connection terminals directly. It is very convenient.

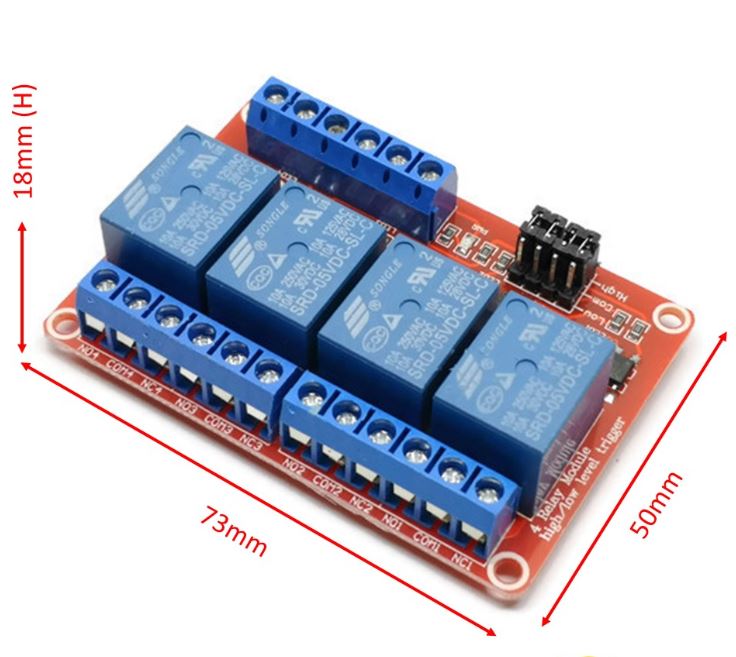

8. Size: 73x50x18mm
9. Weight: 60g
High and low level trigger selection end:
1. S1 is the selection of high and low level triggering for 1 - way relay.
2. S2 is the selection of high and low level triggering for 2 - way relay.
3. com and low short connection, the corresponding relay is low level trigger, COM and high end short connection is high level trigger ![]() ![]() ![]() ![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
