Item description
รายละเอียดสินค้า

ใช้วัดความเร็วรอบรถ Smart car โดยใช้ลำแสงยิงไปยังตัวรับ ใช้คู่กับเฟือง Encoder ที่แถมมากับรถ Smart car หรือจะทำฟันเฟืองเองก็ได้เช่นกัน

Datasheet trigger
Datasheet reader

ตัวอย่าง Code

สามารถเขียนโปรแกรมได้ทั้งแบบอ่านตรงๆด้วย digitalRead หรือ Interrupt (แนะนำ) โดยตัวอย่างนี้จะเสนอวิธีการเขียนแบบ Interrupt ครับ

CODE arduino interrupt encoder

  int U_Pin = 2;
  float Val = 0;
  float time;
  float Speed;

  void setup(){

  Serial.begin(9600);
  attachInterrupt(0,count,CHANGE);
  }

  void loop(){

  time = millis();
  Speed = (Val/40)/(time/60000) ;
  Serial.println(Speed);
  }

  void count(){
  Val += 1;
  }

รายละเอียดเพิ่มเติม

Features:

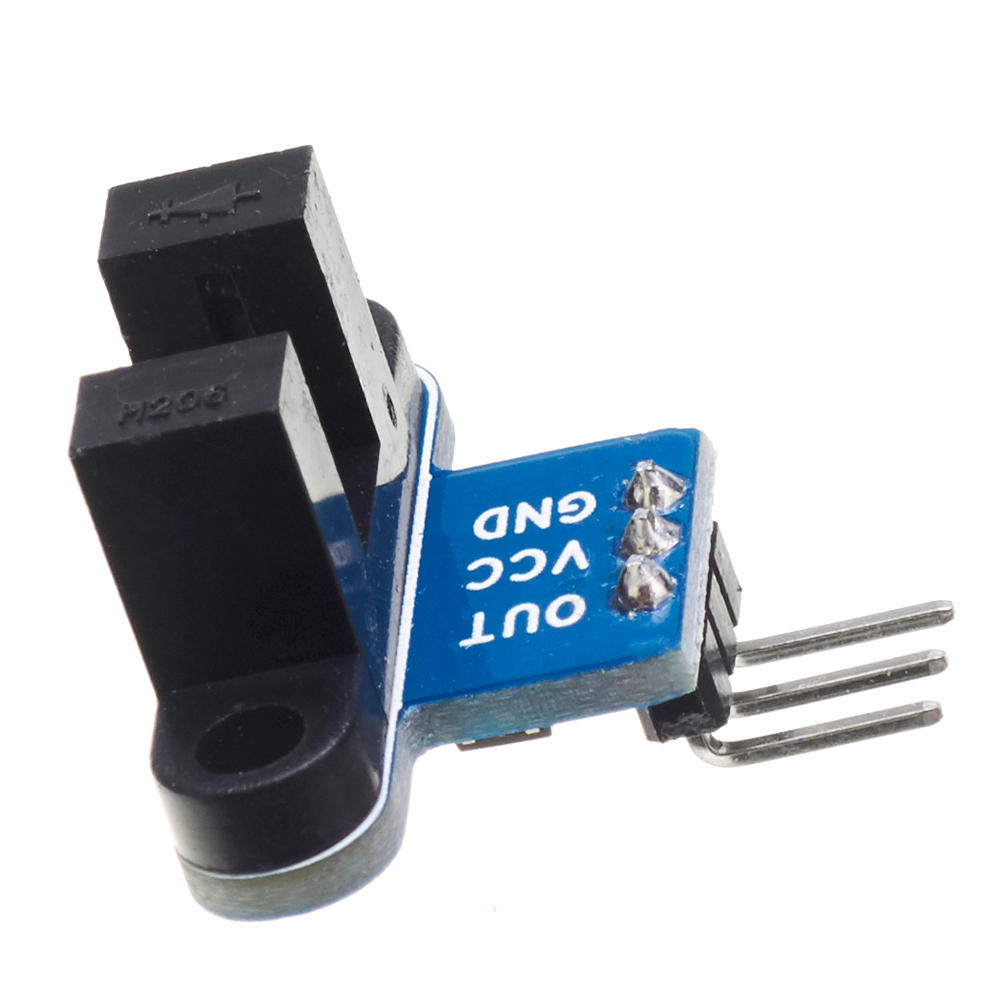

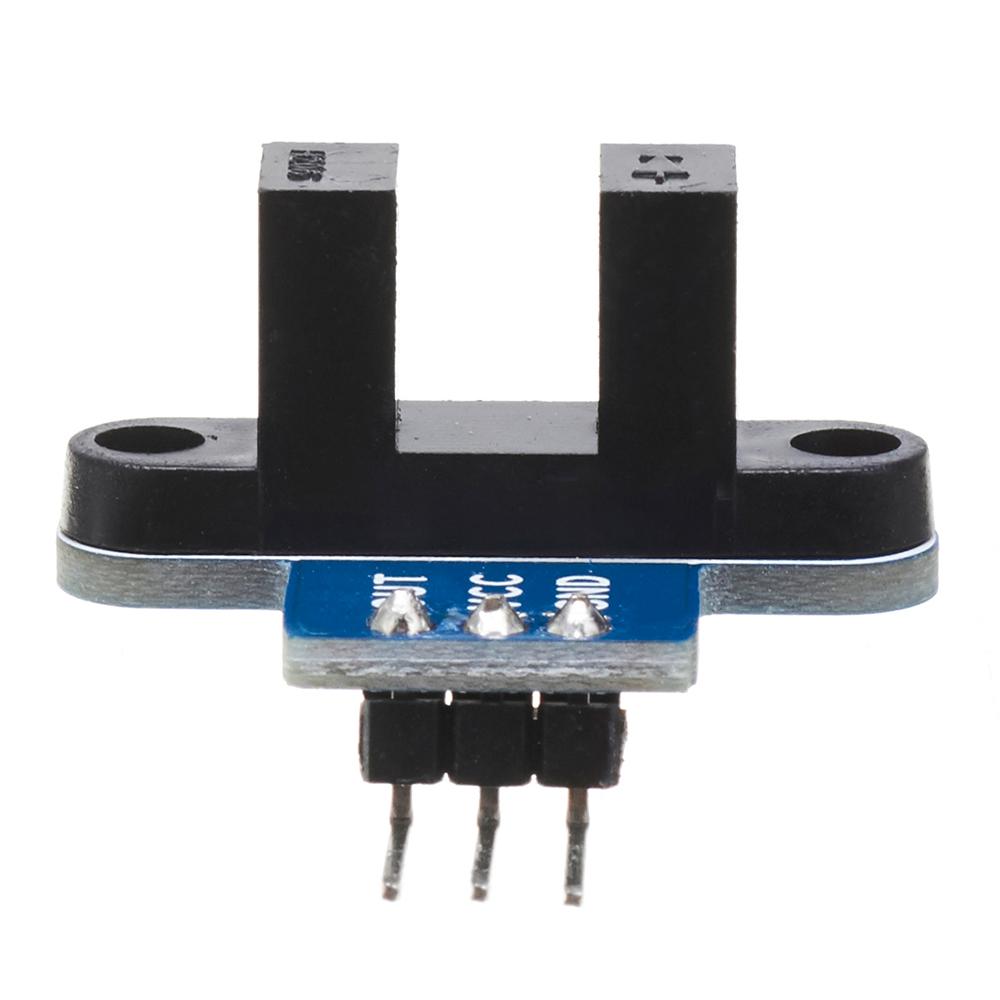

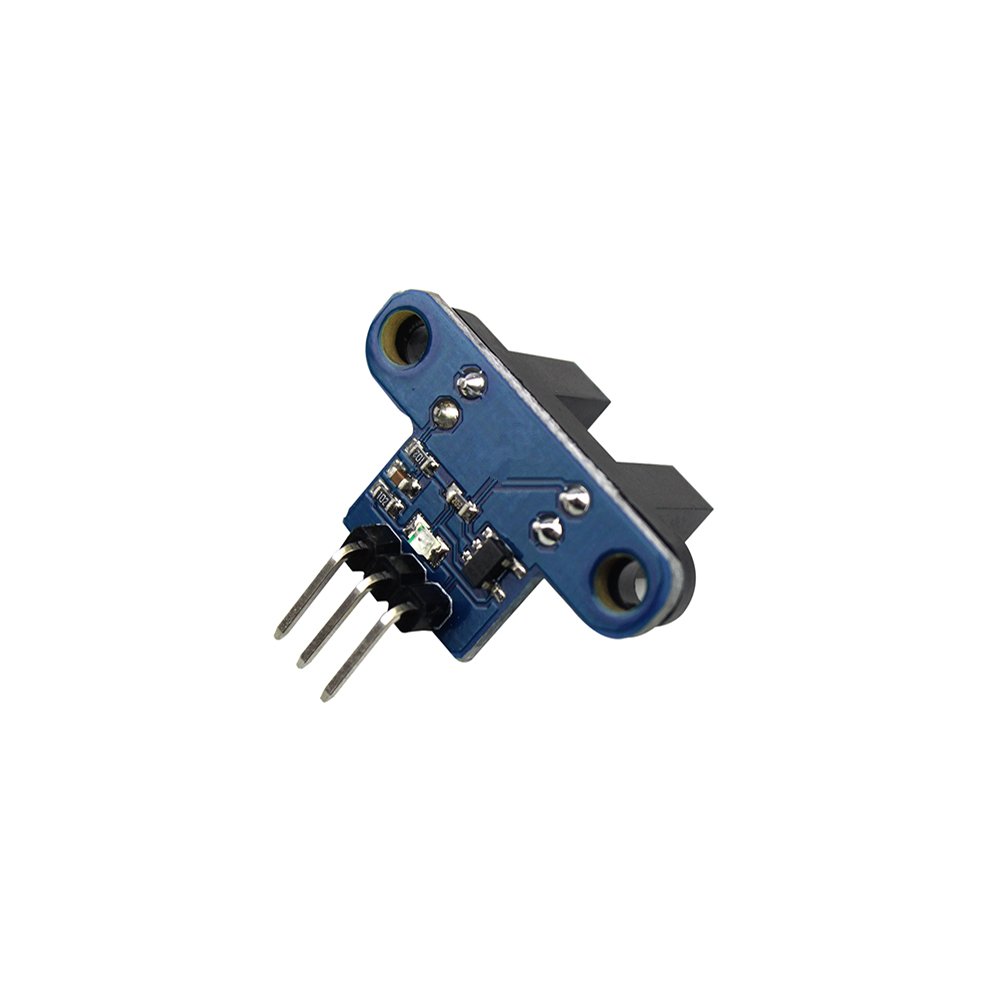

The slot type photoelectric sensor is composed of an infrared light emitting diode and an NPN phototransistor with a groove width of 5.9 mm. As long as the non-transparent object passes through the slot type, it can be triggered (used with our car code wheel) to output TTL low level. The Schmitt trigger is used to shake the pulse, which is very stable and can be used for measuring the speed of the car, measuring the distance and the like! M3 screw mounting holes at both ends.

Specifications:

Working voltage: 3.3V-5V
Output form: digital switch OUT output (0 and 1)

Instructions for Use:

1. Connect VCC and GND, the module signal indicator will light up.
2. When there is no occlusion in the module slot, the receiving tube is turned on, and the module OUT outputs a high level; when occluding, the OUT output is low, and the signal indicator is off.
3. The module OUT can be connected to the relay to form a limit switch and other functions. It can also be connected to the active buzzer module to form an alarm.
4. The OUT output interface can be directly connected to the IO port of the MCU. Generally, it is connected to an external interrupt to detect whether the sensor has a occlusion. If the motor code plate is used, the motor speed can be detected.

Note:

1. Correct wiring! Never reverse the positive and negative, causing the board electronics to burn out.
2. Arduino players should set the MCU's I/O port to input mode/receive mode, otherwise they will not be available. Other MCUs, or more advanced control boards such as ARM, must be set to input mode/receive mode if the I/O port needs to be set to input/output mode, otherwise it cannot be used.
3.The 51 series MCU can be used directly without setting the input/output mode.
