Item description

Overview

SPL06-001 is a miniaturized digital barometric pressure and temperature sensor with very high resolution, designed for altitude measurement and indoor navigation. It features a pressure range of 300–1100 hPa, relative accuracy down to a few centimeters in altitude and ultra-low current consumption, making it ideal for drones, wearables, weather stations and IoT nodes.

Introduction

โมดูล SPL06-001 Barometric Pressure / Height Sensor (บอร์ดสีม่วง) ใช้ชิปวัดความกดอากาศความละเอียดสูง สามารถคำนวณความสูงแนวตั้งของ Drone หรือหุ่นยนต์ได้ละเอียดระดับ ประมาณ 5cm* ในโหมดความละเอียดสูง เชื่อมต่อแบบ I2C / SPI กับบอร์ด Arduino, ESP32, ESP8266, STM32, Raspberry Pi ได้โดยตรง เหมาะสำหรับงาน Altitude Hold, Indoor Navigation, Weather Monitor และ IoT ที่ต้องการความเสถียรของค่าความกดอากาศ

Features

  • Digital Barometric Pressure + Temperature Sensor ในตัวเดียว
  • Pressure Range 300–1100 hPa ครอบคลุมระดับสูง +9000m ถึง -500m (โดยประมาณ)
  • Relative Pressure Accuracy ประมาณ ±6Pa และ Absolute Accuracy ประมาณ ±1hPa
  • Temp. Dependency < 0.5Pa/K ให้ค่าคงที่แม้เปลี่ยนอุณหภูมิ
  • รองรับ Interface แบบ I2C และ SPI เลือกใช้งานได้
  • Low Power: Current Consumption เพียง ~3µA ที่ 1Hz (low precision)
  • แพ็กเกจเซนเซอร์ขนาดเล็กมาก 2.0×2.5×0.95mm ติดบนโมดูลพร้อมใช้งาน
  • โมดูลบอร์ดสีม่วง มีรูยึด M2/M2.5 ใช้งานง่าย น้ำหนักรวมเพียง ~1.7g

Specification

  • Sensor Chip: SPL06-001 Digital Barometric Pressure Sensor
  • Package Size (chip): 2.0 × 2.5 × 0.95 mm
  • Absolute Pressure Range: 300 – 1100 hPa
  • Absolute Pressure Accuracy: ±1 hPa
  • Relative Pressure Accuracy: ±6 Pa (high resolution mode)
  • Noise: 0.6 Pa RMS
  • Temperature Coefficient (Temp. Dependency): <0.5 Pa/K
  • Current Consumption @1 Hz (low precision): typ. 3 µA
  • Supply Voltage (VDD): 1.7 – 3.6 V
  • IO Voltage (VDDIO): 1.2 – 3.6 V
  • Interface: I2C or SPI (24-bit digital output)
  • Operating Temperature: −40°C to +85°C
  • Module PCB Size (approx.): 27 × 20.9 mm, หนา ~1.6 mm
  • Module Weight: ประมาณ 1.7 g (บอร์ด 1.4 g + Pin Header 0.3 g)
  • Module Pinout: VCC, GND, SCK, SDI, CSB, SDD (ระยะขา 2.54mm)

Caution

โมดูลใช้แรงดันเลี้ยงสูงสุด 3.6V เท่านั้น แนะนำใช้กับระบบ 3.3V โดยต่อ VCC และ IO ทั้งหมดในช่วง 1.7–3.6V ห้ามต่อเข้ากับสัญญาณ 5V โดยตรง ควรหลีกเลี่ยงการสัมผัสตัวชิปโดยตรงด้วยมือเพื่อป้องกัน ESD และไม่กันน้ำ (Water proof level: N/A) ควรติดตั้งในตำแหน่งที่อากาศไหลเวียนดีและไม่โดนน้ำหรือละอองน้ำ.

Datasheet

SPL06-001 Digital Barometric Pressure Sensor Datasheet

Manual

Not valid (ใช้งานผ่าน I2C/SPI ร่วมกับไลบรารี Arduino/ESP32 ทั่วไป)

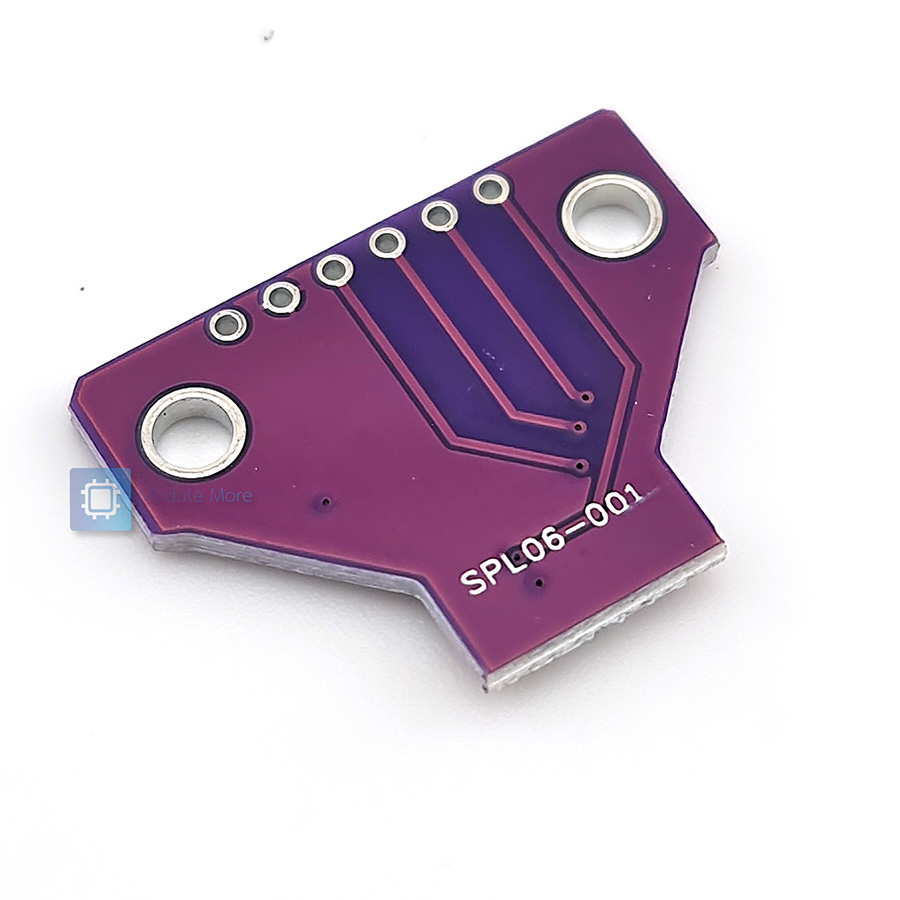

SPL06-001 Barometric Pressure & Height Sensor Module for Drone/ESP32

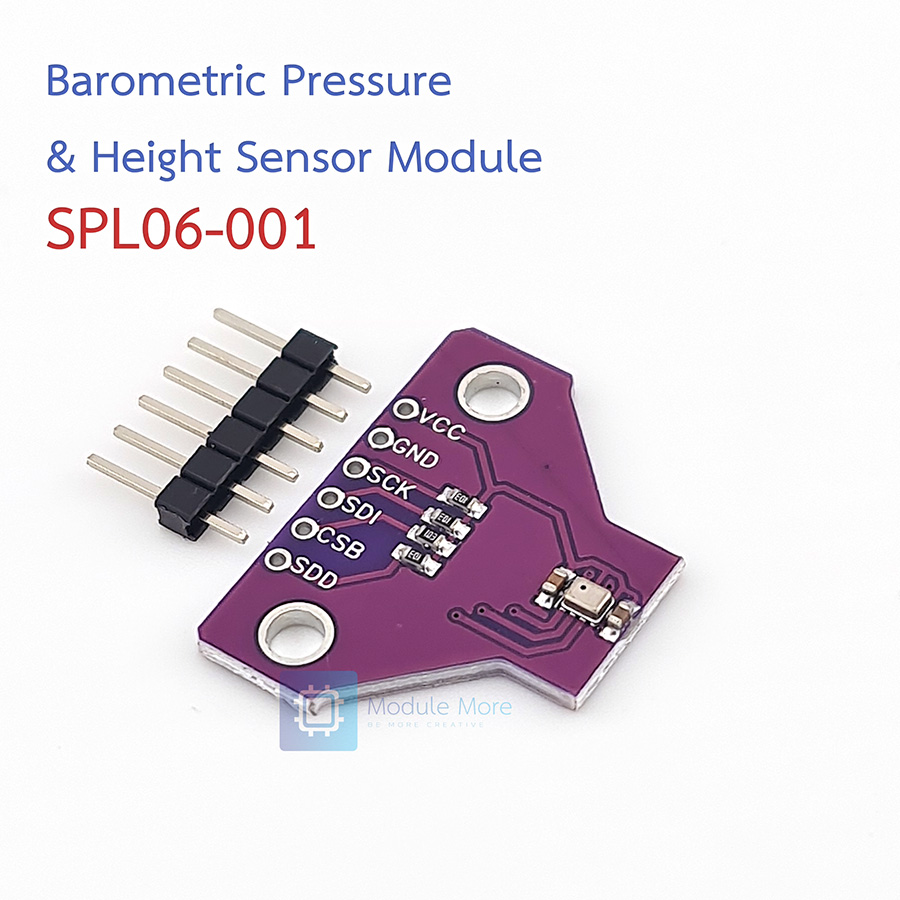

SPL06-001 Barometric Pressure & Height Sensor Module for Drone/ESP32

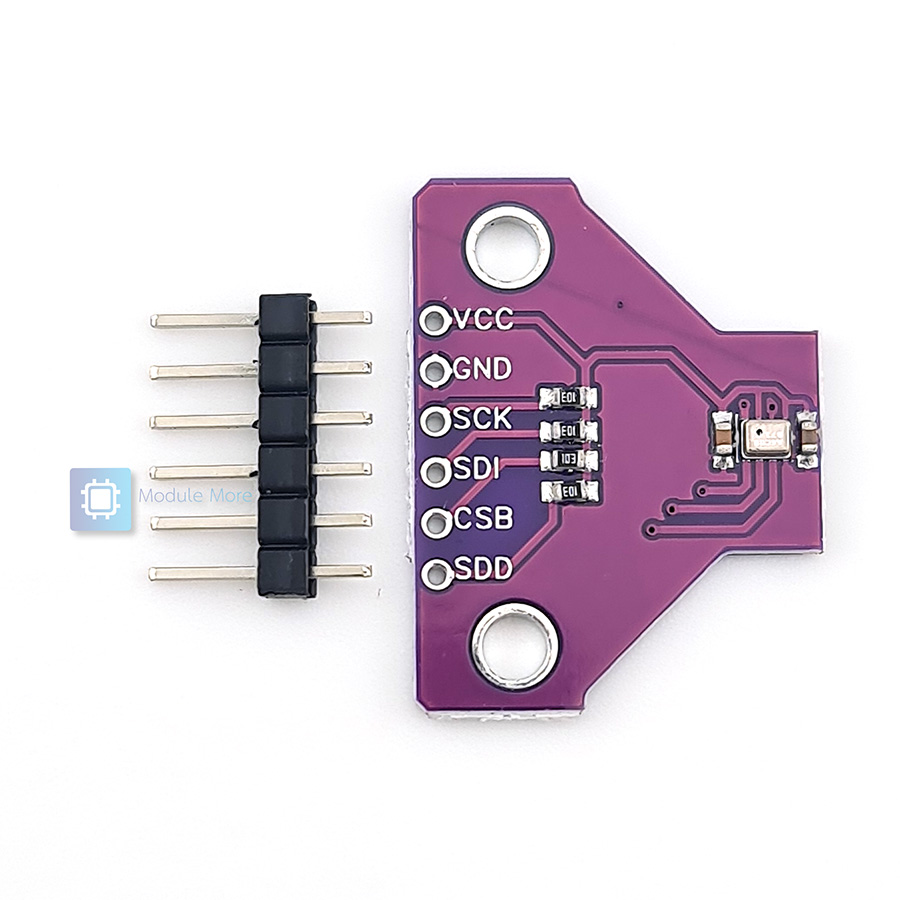

SPL06-001 Barometric Pressure & Height Sensor Module for Drone/ESP32
SPL06-001 Barometric Pressure & Height Sensor Module for Drone/ESP32
SPL06-001 Barometric Pressure & Height Sensor Module for Drone/ESP32
Conditions
Tags
diy SPL06-001 Barometric Sensor Pressure sensor Height Sensor Drone UAV arduino ESP32 esp8266 STM32 raspberry pi i2c SPI IoT เซ็นเซอร์ความกดอากาศ เซ็นเซอร์ความสูง

Exchange or return policy



Every item comes with a 30-day warranty. However, there are certain conditions that apply:

  1. The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).

  2. The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).

  3. The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.

Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:

  1. Provide a detailed description of the damaged item(s).
  2. Mention any tests or experiments conducted by the customer.

Please note that the store reserves the right to make the final decision regarding product replacement or refund.
