Item description

Overview

Industrial-grade Hall-effect turbine flow sensors (DN40 / DN50) designed for high-flow water measurement. The sensor outputs a digital pulse signal proportional to flow rate, providing stable, high-precision measurement with fast response and excellent sealing. Suitable for IoT, industrial equipment, agricultural irrigation, and automatic water control systems.

Introduction

เซนเซอร์วัดอัตราการไหลของน้ำแบบ Turbine Hall Sensor รองรับท่อน้ำ 1.5 นิ้ว (DN40) และ 2 นิ้ว (DN50) ให้สัญญาณออกเป็น Digital Pulse ง่ายต่อการอ่านผ่าน Arduino, ESP32, STM32, PLC หรือระบบ IoT ต่าง ๆ มีคุณสมบัติทนแรงดันน้ำสูง ไม่รั่วซึม วัสดุไนลอนแข็งแรง ได้มาตรฐาน ROHS พร้อมความไวสูง

Features

  • Digital Hall-effect Pulse Output — ต่อเข้ากับ Arduino/ESP32 ได้โดยตรง
  • รองรับแรงดันไฟกว้าง DC 3.5–24V
  • วัสดุ Nylon ทนกัดกร่อนและแรงดันน้ำสูง ≤1.75MPa
  • ค่าความไวสูง ให้สัญญาณ Pulse คงที่แม้ที่อัตราการไหลสูง
  • ได้มาตรฐาน ROHS, ความแม่นยำ ±3%–±5%
  • ใช้งานได้ช่วงอุณหภูมิกว้าง และผ่านการทดสอบความเย็น -20°C และความร้อน 85°C

Specification

DN40 (1.5-inch)

  • Model: YF-DN40
  • Rated Voltage: DC 5V
  • Working Voltage: DC 3.5–24V
  • Internal Diameter: In 36.5 mm / Out 33.5 mm
  • External Diameter: 46.5 mm
  • Screw Length: 22 mm
  • Material: Nylon
  • Water Pressure Resistance: ≤1.75 MPa
  • Flow Range: 5–150 L/min ±3%
  • Pulse Formula: f = 0.45 × Q (Q = L/min)
  • Calibration: 27 pulses ≈ 1 L
  • Insulation Resistance: >100 MΩ

DN50 (2-inch)

  • Model: YF-DN50
  • Rated Voltage: DC 5V
  • Working Voltage: DC 3.5–24V
  • Internal Diameter: In 46 mm / Out 43.6 mm
  • External Diameter: 58.8 mm
  • Screw Length: 22.7 mm
  • Material: Nylon
  • Flow Range: 10–200 L/min ±5%
  • Pulse Formula: f = 0.2 × Q (Q = L/min)
  • Calibration: 12 pulses ≈ 1 L
  • Output High Level: >4.7V (Input 5V)
  • Duty Cycle: 50% ±10%

Wiring

  • Red — IN (Power +)
  • Yellow — OUT (Pulse Signal)
  • Black — GND (Ground)

Caution

ห้ามใช้ในน้ำร้อนเกินสเปก และควรติดตั้งในแนวท่อแนวนอนเพื่อให้ใบพัดหมุนสม่ำเสมอ ควรใช้ฟิลเตอร์กันตะกอนเพื่อยืดอายุเซนเซอร์ ใช้แรงดันไฟไม่เกิน 24V และตรวจสอบขั้วสายก่อนใช้งาน.

Datasheet

YF-DN40 / YF-DN50 Water Flow Sensor Datasheet

Manual

Not valid (standard 3-wire connection)

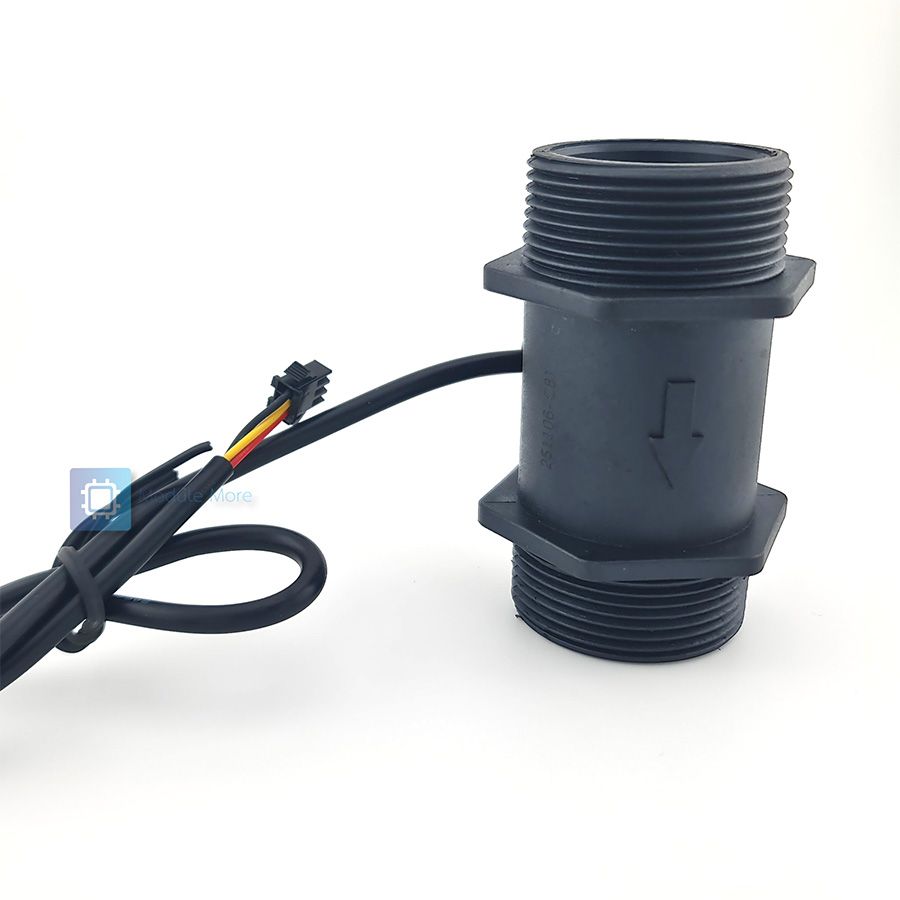

เซนเซอร์ วัดอัตราการไหลของน้ำ ขนาดท่อ 1.5 นิ้ว / 2 นิ้ว DN40 DN50 Water Flow Sensor Hall Turbine 1.5/2 inch

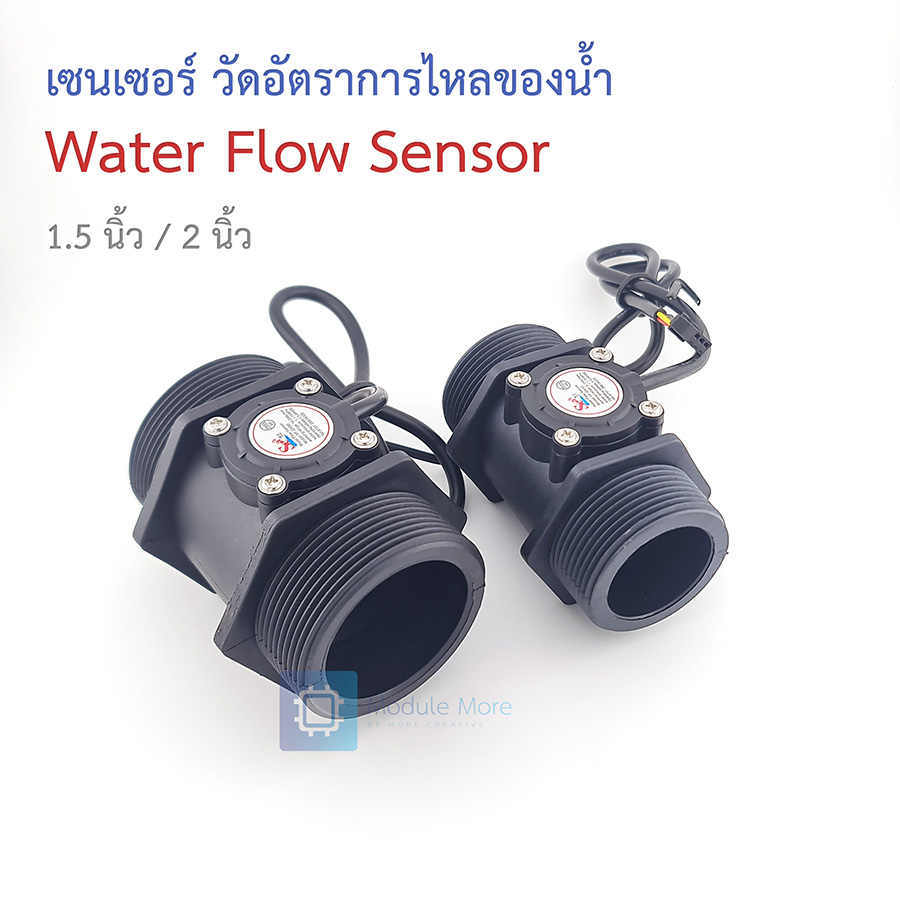

เซนเซอร์ วัดอัตราการไหลของน้ำ ขนาดท่อ 1.5 นิ้ว / 2 นิ้ว DN40 DN50 Water Flow Sensor Hall Turbine 1.5/2 inch

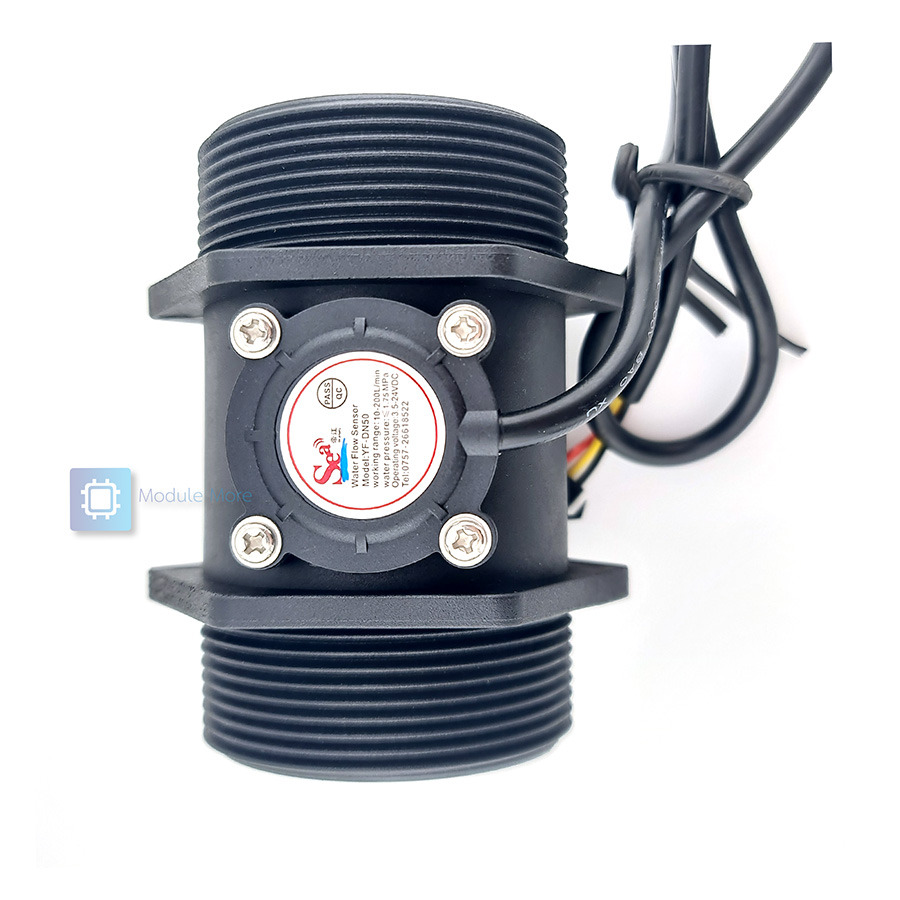

เซนเซอร์ วัดอัตราการไหลของน้ำ ขนาดท่อ 1.5 นิ้ว / 2 นิ้ว DN40 DN50 Water Flow Sensor Hall Turbine 1.5/2 inch

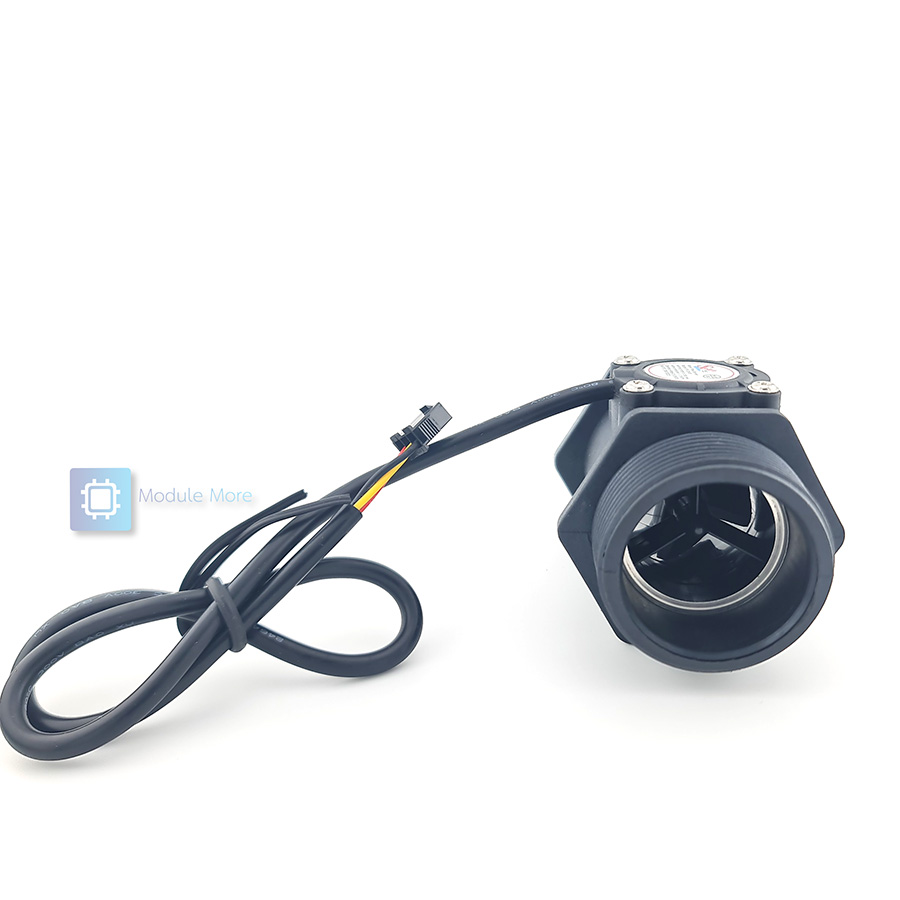

เซนเซอร์ วัดอัตราการไหลของน้ำ ขนาดท่อ 1.5 นิ้ว / 2 นิ้ว DN40 DN50 Water Flow Sensor Hall Turbine 1.5/2 inch
เซนเซอร์ วัดอัตราการไหลของน้ำ ขนาดท่อ 1.5 นิ้ว / 2 นิ้ว DN40 DN50 Water Flow Sensor Hall Turbine 1.5/2 inch
