Magnetic Encoder MT6701 Magnetic Induction Angle Measurement Sensor Module  | eBay

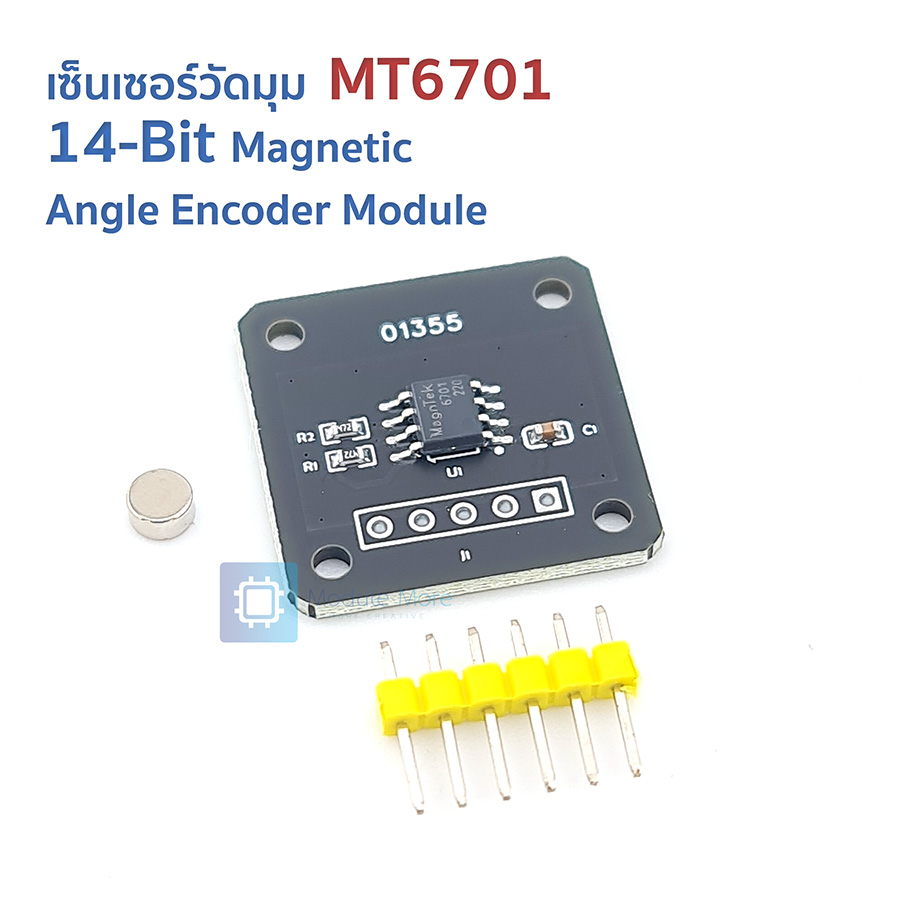

The MT6701 is a magnetic angle encoder IC that utilizes a differential Hall effect sensor to measure angular position. It's a versatile chip that can output absolute angle (0-360 degrees) with high accuracy using I²C or SSI interfaces, or provide incremental outputs like ABZ or UVW. It also features a "push" output for additional functionality like a single-chip button.


Here's a more detailed breakdown:
Key Features:
Differential Hall Effect:
The MT6701 relies on sensing the magnetic field component perpendicular to the chip surface, making it suitable for detecting the rotation of a radial magnet.
Absolute Angle Output:
It provides 14-bit absolute angle data via I²C or SSI interfaces, giving precise angular position information.

Incremental Output:
The chip can also output incremental signals (ABZ or UVW) which are commonly used in motor control applications, with user-programmable pulse counts.
Push Button Functionality:
The "push" output allows for the implementation of a button function alongside the angle measurement, enabling single-chip control.
Wide Operating Voltage and Temperature:
The MT6701 operates with a voltage range of 3.3-5.0V and can withstand temperatures from -40°C to 125°C.
High Speed and Low Delay:
It supports high rotational speeds (up to 55,000 RPM) with a low system delay (less than 5µs).

Applications:
Rotary Encoders:
The MT6701 is ideal for replacing traditional potentiometers in various applications, such as smart home devices, offering more reliable and robust solutions.
Motor Control:
The incremental outputs (ABZ/UVW) are commonly used in motor control systems for feedback and position sensing.

Robotics:
Magnetic encoders like the MT6701 are used in robotics for accurate joint position sensing and control.

Other Applications:
The MT6701 can be used in any application requiring precise rotational position measurement, including industrial automation and consumer electronics.
In essence, the MT6701 is a versatile and high-performance magnetic encoder chip suitable for a wide array of applications requiring accurate angular position sensing.
