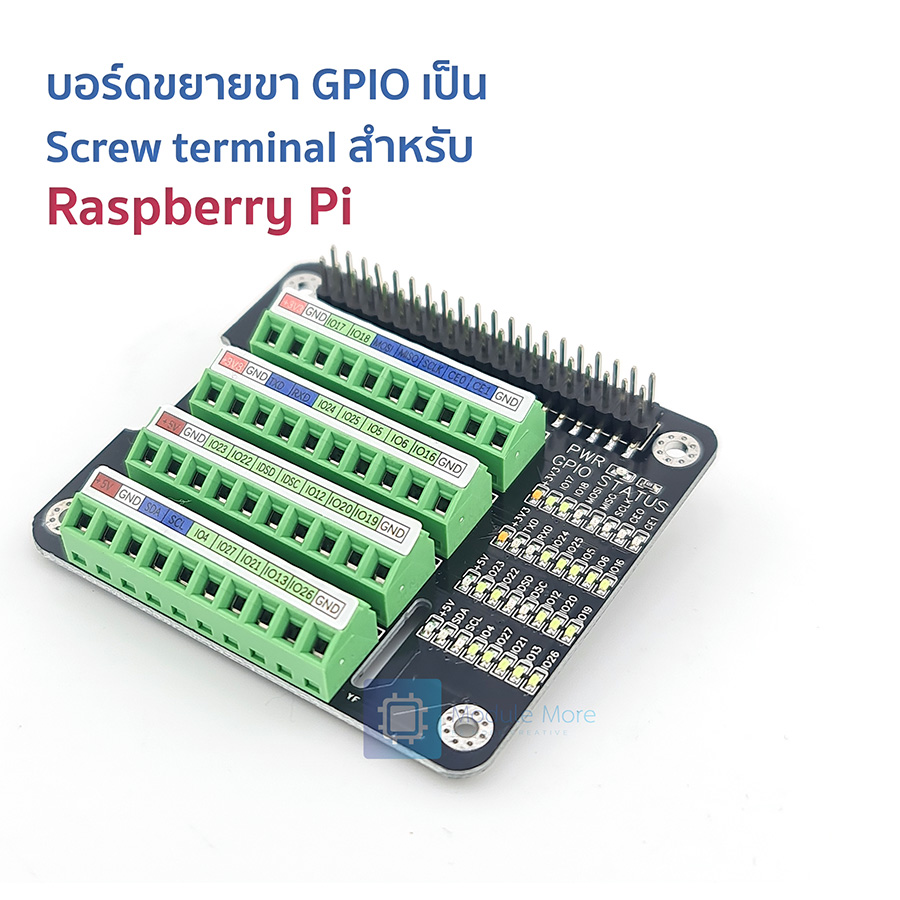

บอร์ดขยายขา GPIO เป็น Screw terminal Raspberry Pi GPIO Terminal Expansion Board Support Raspberry Pi 4B 3B 3B+ 2B ZERO series



Introduction



This GPIO terminal expansion board expands the 40Pin of the Raspberry Pi, providing a silk screen note and LED display on the side. There are 4 groups of wiring terminals on the left side of the board, which are fixed by screws. Notably, DuPont wires are not easy to fall off and very stable. Thus, with the pin-out information of the GPIO marked on the side of terminals, it is easy to wire components up when doing electronic experiments.
Also, we can know the state of pins from whether the LED is on, and know types of pins from different colors. For example, red stands for 5V power supply, while orange for 3.3V, blue represents for special function pins, and green for ordinary GPIO.
Therefore, we are able to judge whether one pin is valid or not via observation.




Parameters

Operating temperature: -10°C~50°C
Dimensions: 66*57 mm
Dimension of positioning holes: 2.845 mm
Weight: 38.8 g
