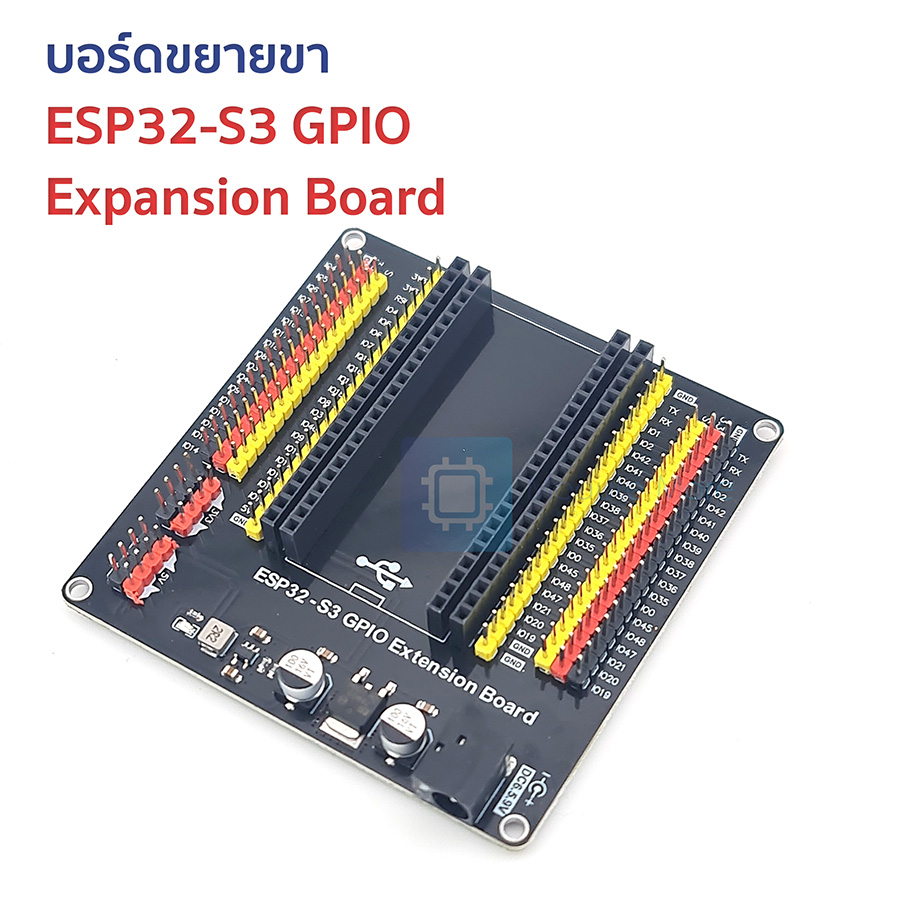

บอร์ดขยายขา ESP32-S3 GPIO Expansion Board



Features

1.This expansion board module is safe, reliable and expandable to various applications;
2. Compatible with ESP32-S3 or development boards with the same pinout;
3. The expansion board is made of high quality materials, good stability and high reliability;
4. DC power supply interface, support DC2.1 power supply 6.5-9V;
5. Strong applicability, very suitable for users to reuse all pins in DIY projects.

Specification
Name: ESP32-S3 GPI0 Expansion Board
Power supply interface: DC5.5*2.1
Supply Voltage: 6.5-9V
Size: 83*83mm
Fixed hole: 3mm
Hole Pitch: 3000*3000mil /76.2*76.2mm
Pin spacing: 1000mil/ 25.4mm

Attention:
The product does not include the development board included, only compatible with ESP32-S3 or the development board with the same pinout.

List
1 x Expansion Board
