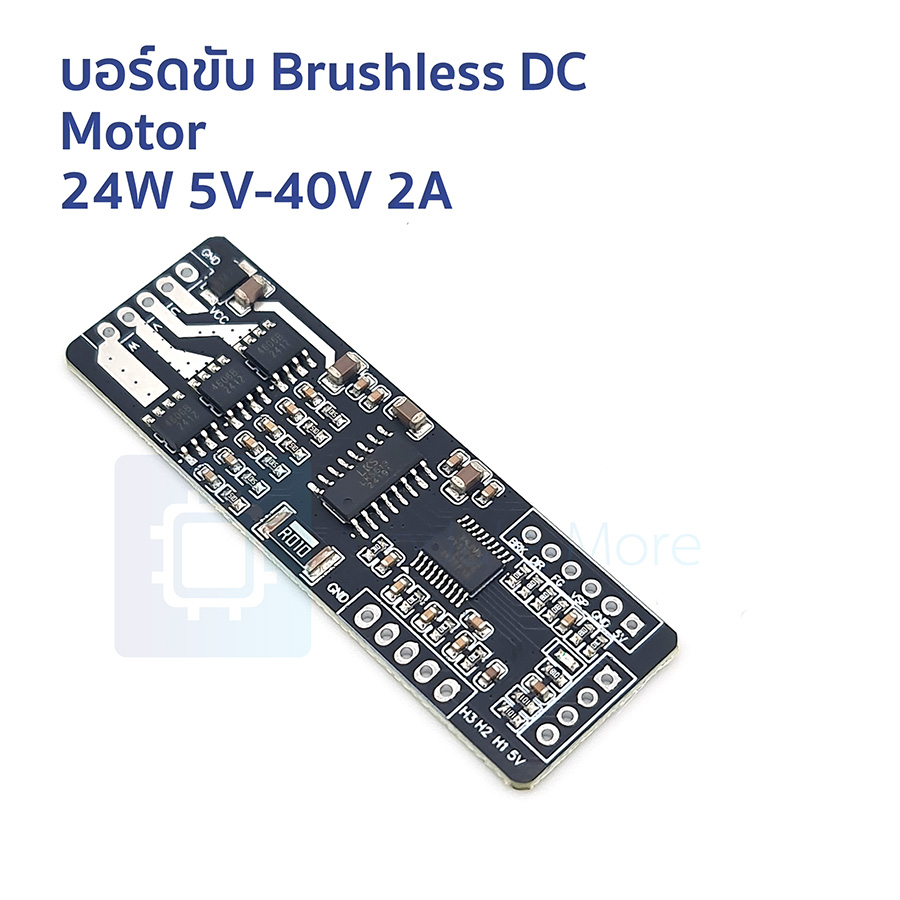

BLDC Motor Driver 24W 5V-40V 2A Brushless Motor Control Module PWM Three-phase Forward and Revese Motor Control Board with Hall

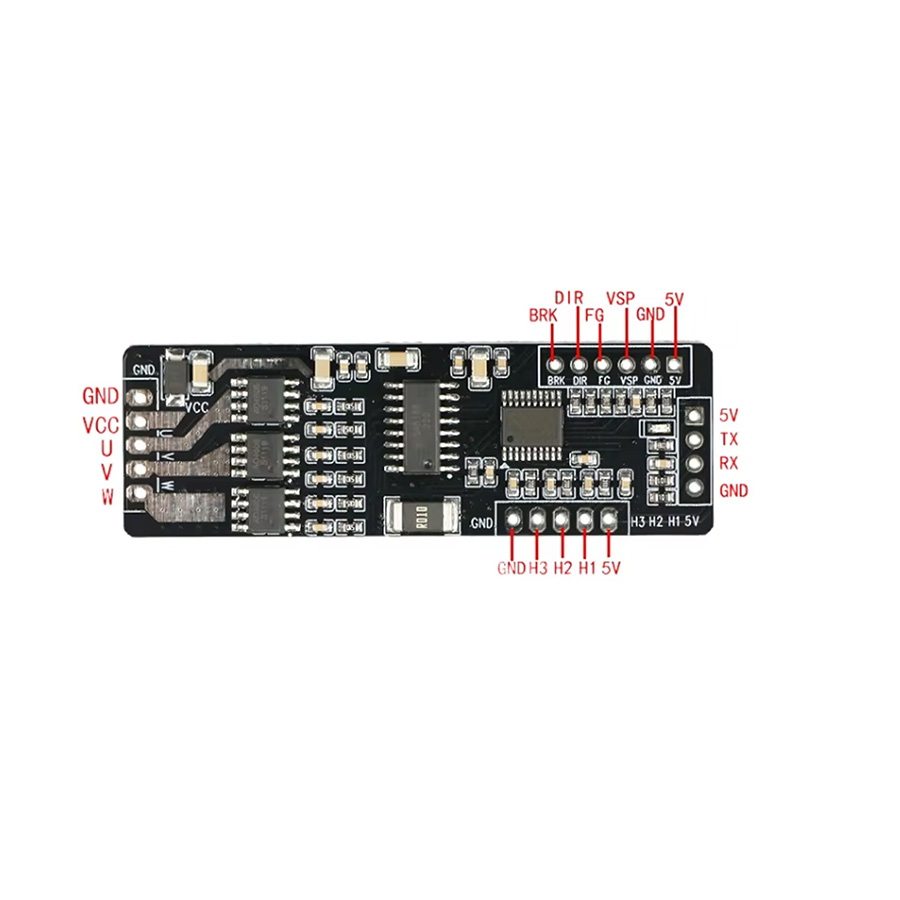

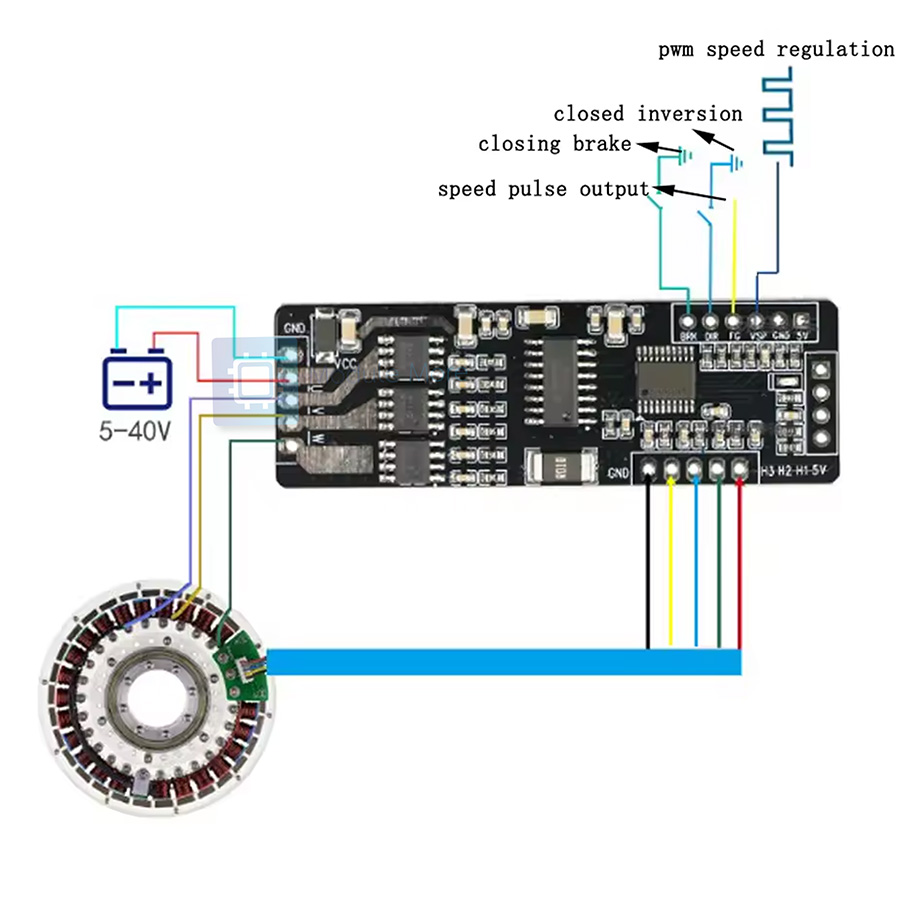

This product is for Hall (inductive) DC brushless three-phase motor development of a wide voltage, large current, with a simple peripheral circuit, perfect function, small size, simple debugging, high driving efficiency, flexible application, wide range of characteristics of the high-performance module, just access to the motor three-phase line and Hall line, you can achieve motor control.
Specification: Operating voltage: 5V-40V Continuous operation: 1.5A Maximum current: 4A Maximum power: 24W Maximum speed: 100,000 RPM Temperature protection: 100℃ (85℃ recovery)
Notice: The drive module is bare board, and it is not necessary to force heat dissipation to drive the motor with power below 24w, as long as normal ventilation is ensured. If the drive motor power exceeds 24W, it must be forced to dissipate heat, add heat sink or fan heat dissipation, and pay attention to the insulation problem of the drive board when adding.

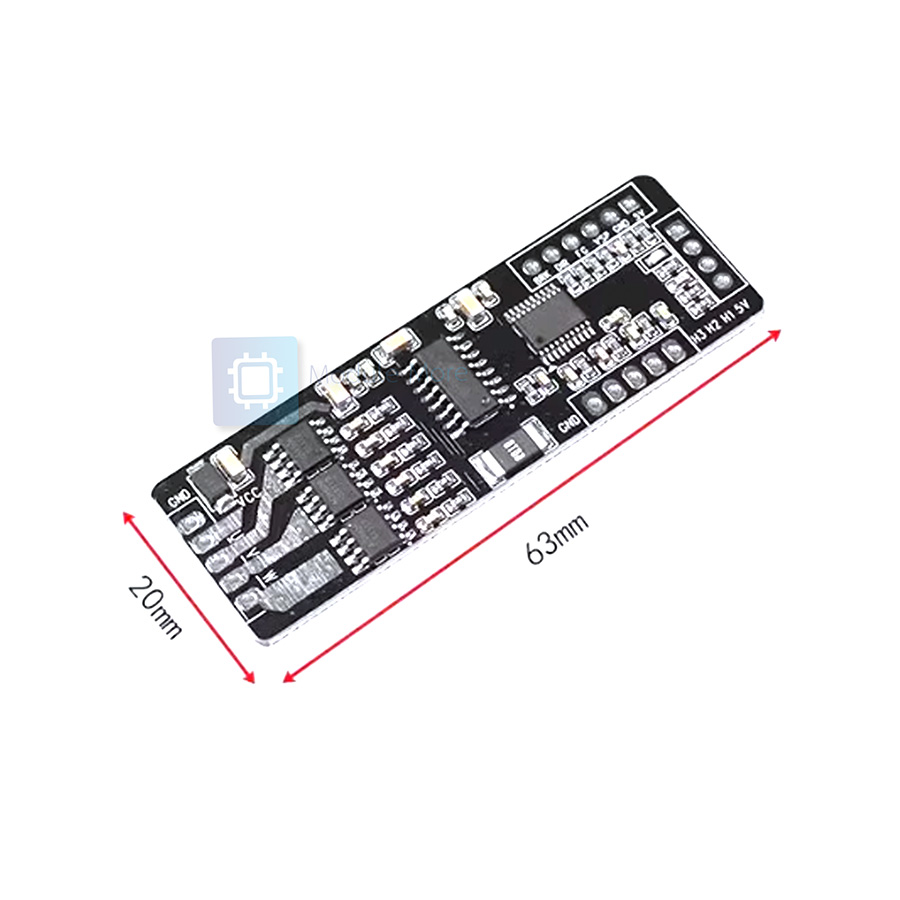

Note: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures. 2. Please allow 1mm-1cm differences due to manual measurement.
Package Included: 1x Motor Driver ![]() ![]() ![]() ![]() |
