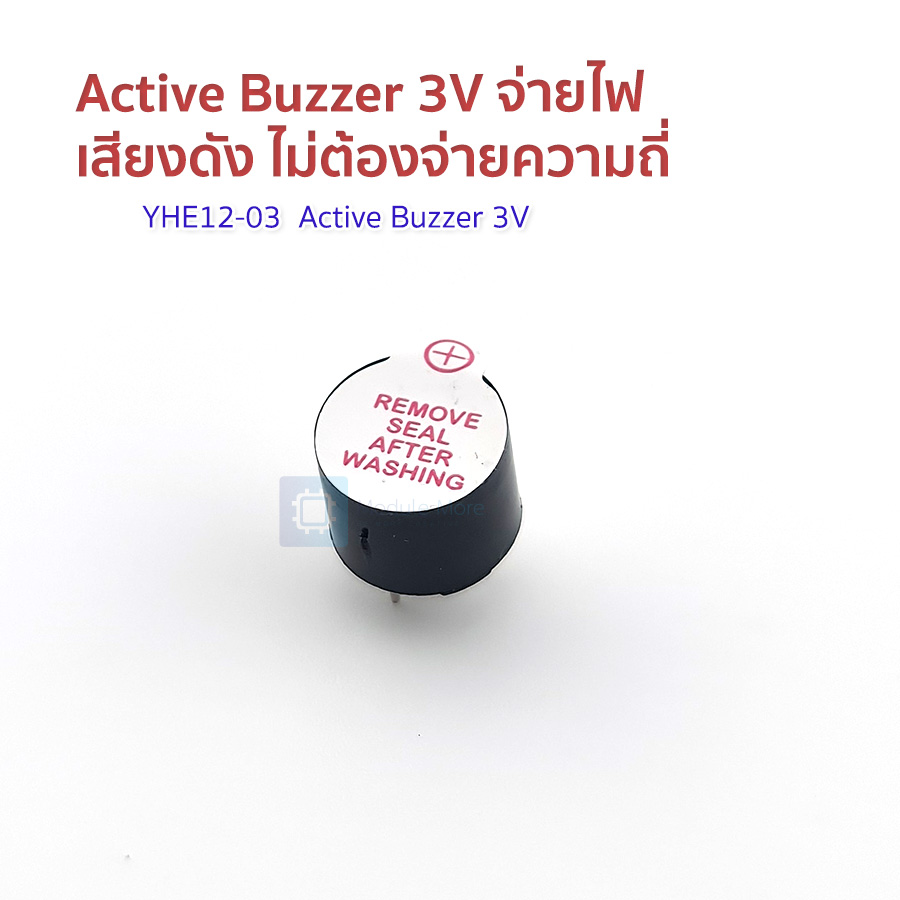

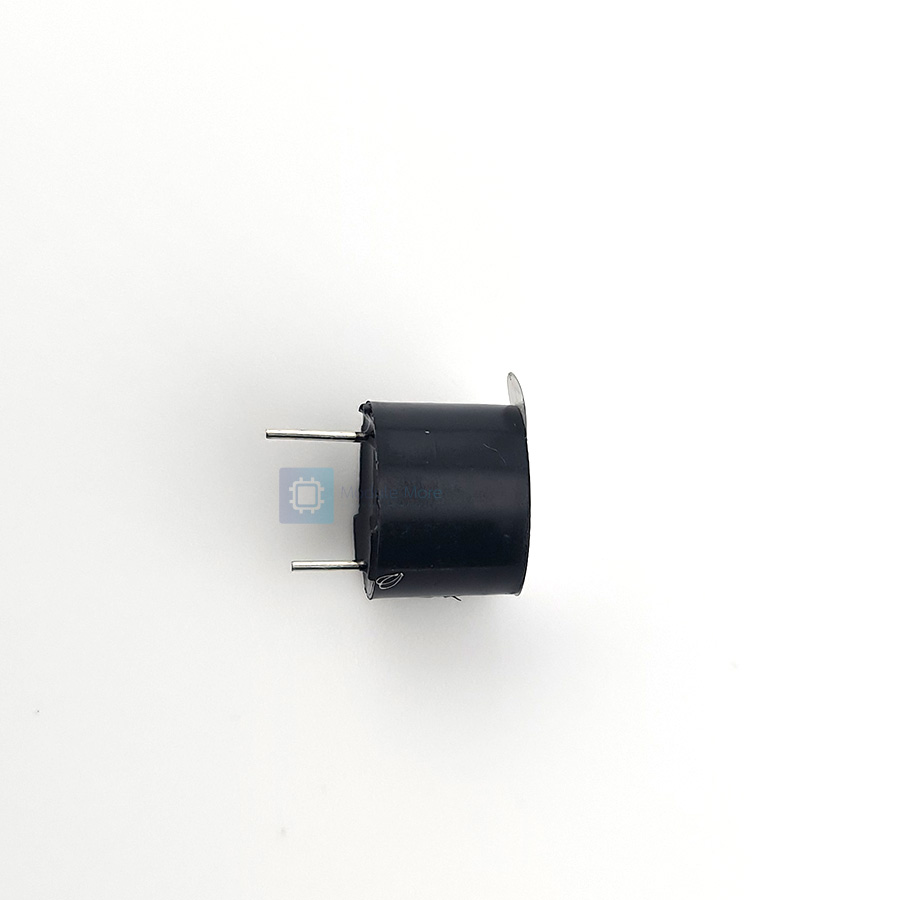

Buzzer 3V (SOT plastic package) active buzzer long sound

  • Product model: YHE12-03ST 3V

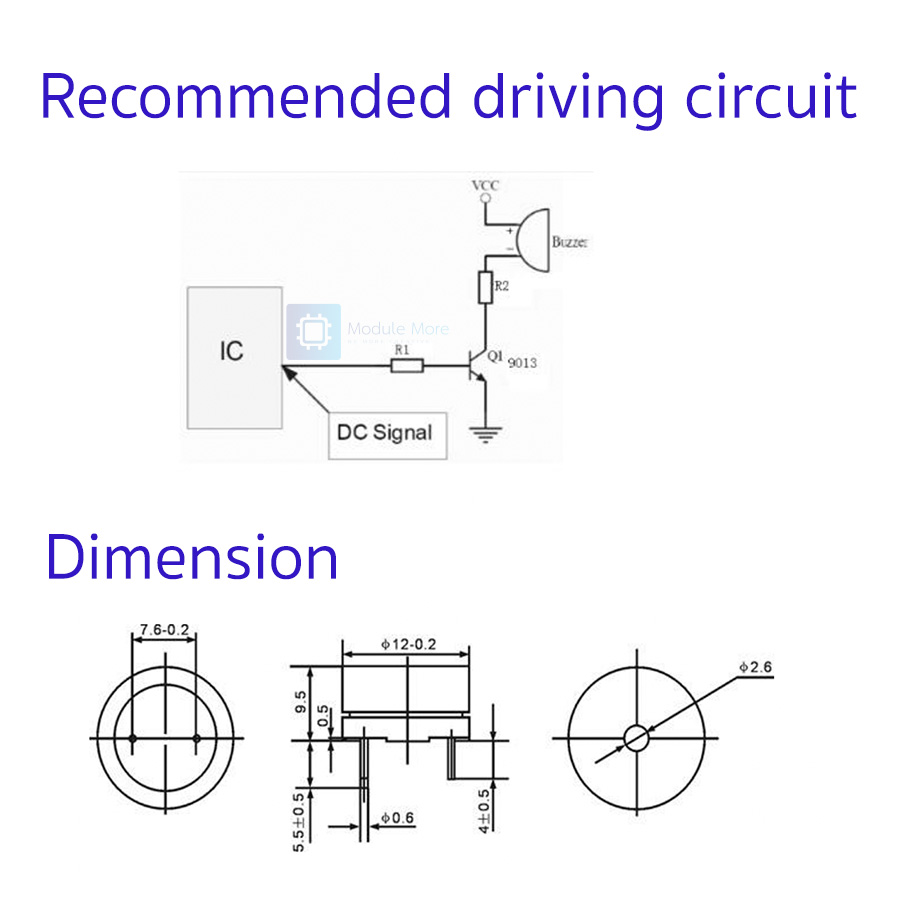

  • Product size:12 x 9.5mm
  • Rated voltage 3.0V
  • Sound Pressure Level=SPL Min 85dB
  • Oscillation frequency 2400±400Hz



Knowledge literacy:
Nowadays, many people are not very clear about the concept of active buzzer and passive buzzer. Here is a brief introduction.
I hope it will be helpful to everyone in the future.

Note that the "source" here does not refer to the power source.It refers to the source of the shock.

The characteristics of passive buzzer are:
1 There is no oscillator inside the passive, so if a DC signal is used, it cannot be made to scream.
  Must use 2K~5K square wave to drive it
2 The frequency of the sound is controllable, and the effect of "multi-leaf Solaxi" can be made.
3 In some special cases,

the characteristics of the active buzzerthat can be multiplexed with the LED for a control portare:
1 The active buzzer has an internal oscillation source, so it will beep as long as it is powered on
2 The program control is convenient. The single-chip microcomputer can make a sound with a high and low level, but the passive buzzer cannot.
