Item description

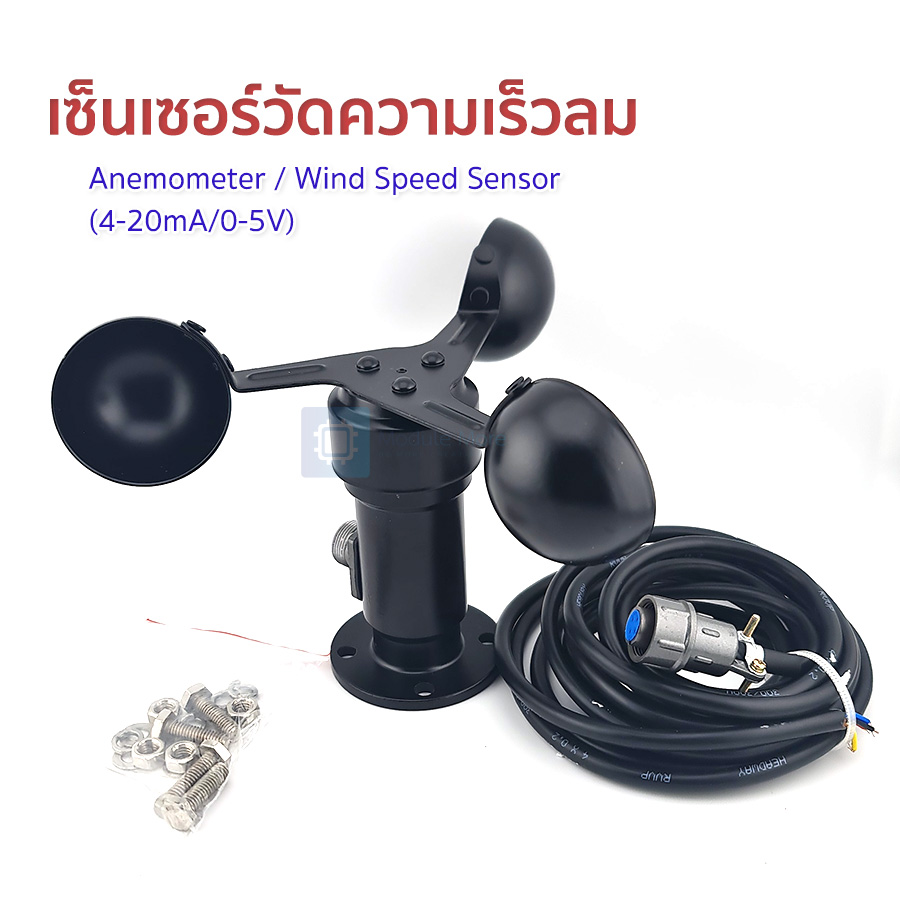

JL-FS2  wind speed sensor (current/voltage type)









type

Cable outlet mode

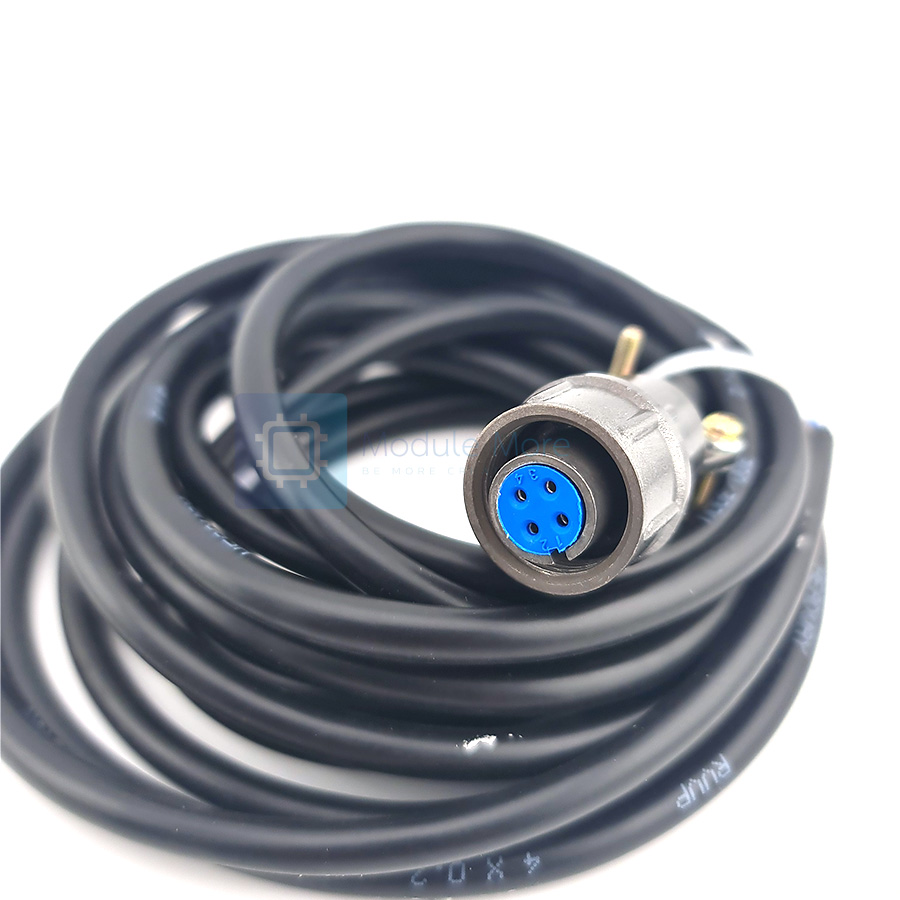

Waterproof aviation plug



model

JL-FS2

name

Universal wind speed sensor

    sensor

Signal output mode

Current type 4-20mA / Voltage type 0-5V

Sensor style

Three cups

Start wind speed

0.4-0.8 /s

Resolution

0.1m/s

Effective wind speed measurement range

0-30m/s or  0-60m /s

   General Parameters

system error

± 3%

Transmission distance

More than 1000m

Transmission medium

Cable transmission

Wiring

Three-wire system

Operating temperature

-40℃ ~80

Supply voltage

DC12-24V universal

Power consumption

Voltage type MAX≤0.3W    ;        Current type MAX≤0.7W

size

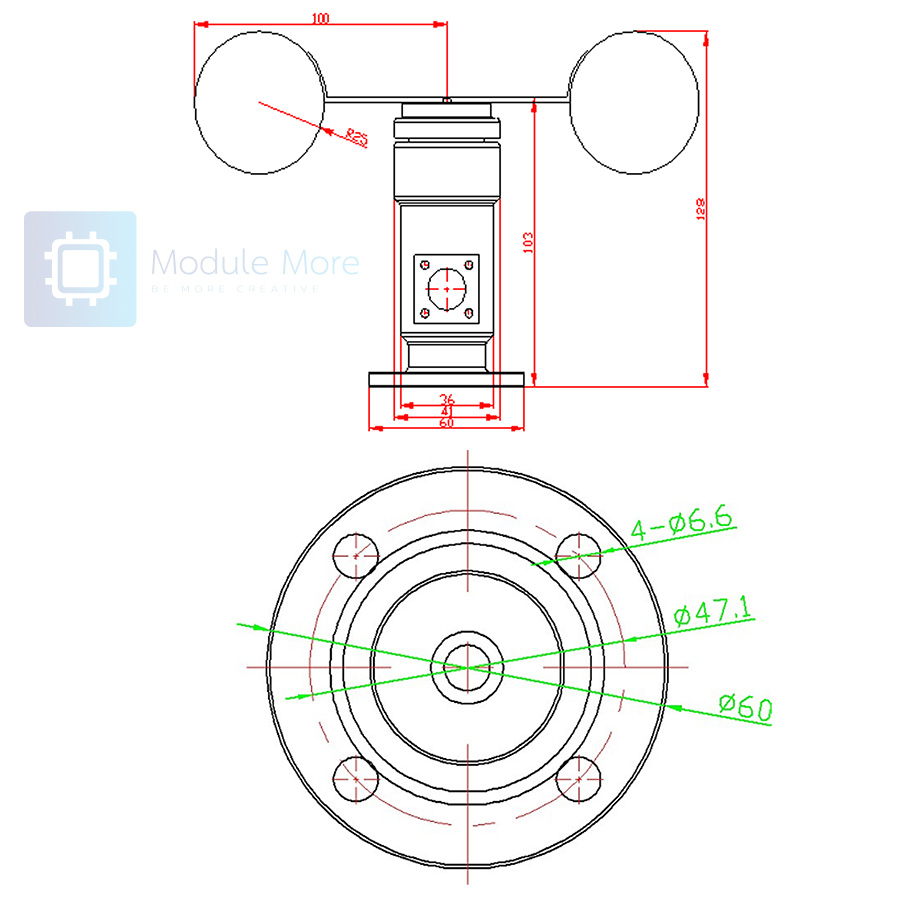

See dimensional drawing

weight

<1Kg





Sample Code




/*
    Wiring: VCC (Red), GND (Black), Voltage (Yellow), Current (Blue)
    Connect the voltage signal wire to Arduino analog interface:
    Yellow Cable<---->A0
*/

void setup()
{
    Serial.begin(9600);
}

void loop()
{
    int sensorValue = analogRead(A0);
    float outvoltage = sensorValue * (5.0 / 1023.0);
    Serial.print("outvoltage = ");
    Serial.print(outvoltage);
    Serial.println("V");
    int Level = 6*outvoltage;//The level of wind speed isproportional to the output voltage.
    Serial.print("wind speed is ");
    Serial.print(Level);
    Serial.println(" level now");
    Serial.println();
    delay(500);
}

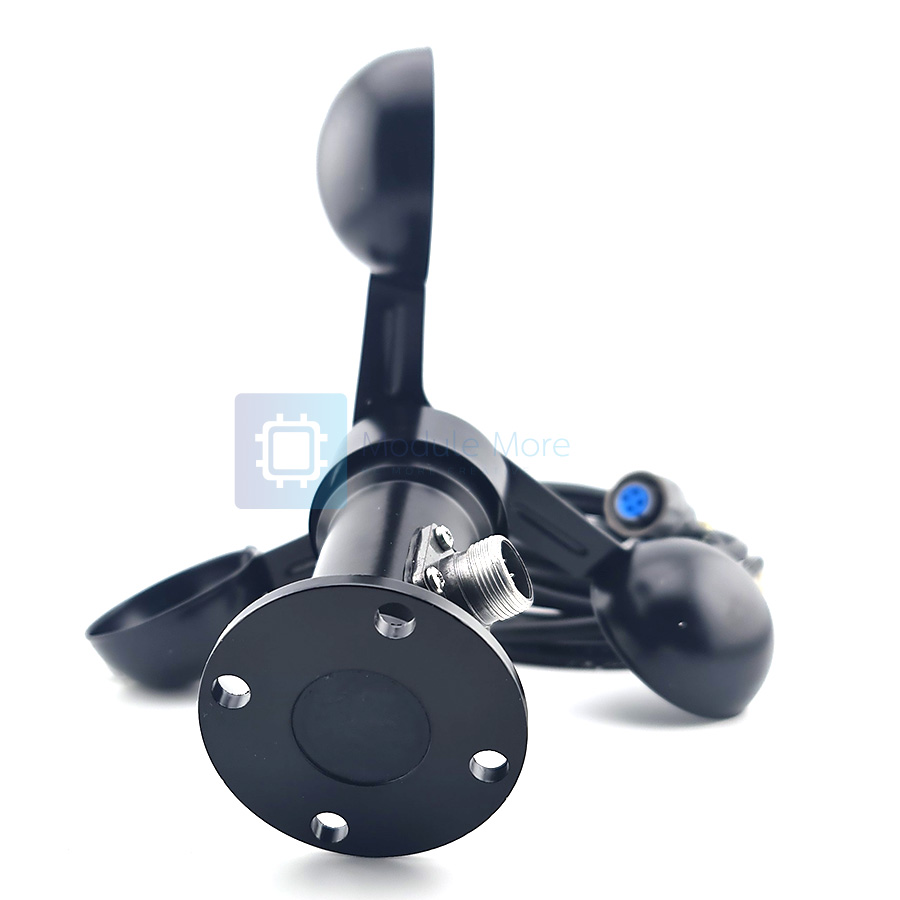

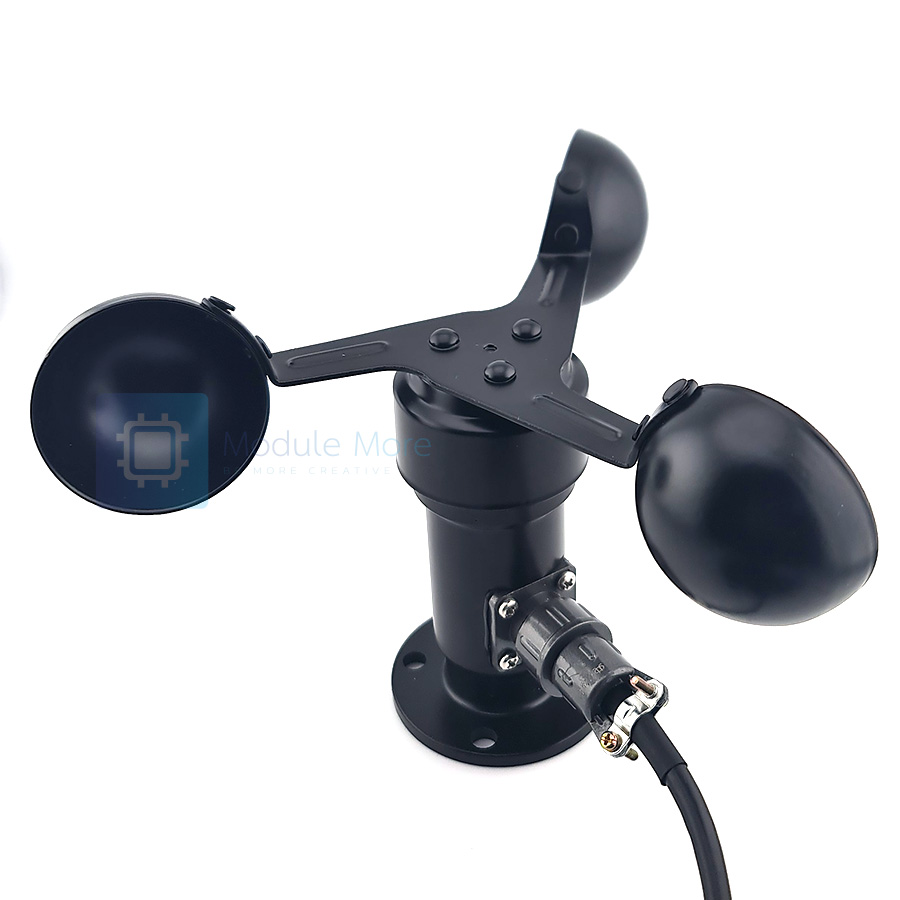

เซ็นเซอร์วัดความเร็วลม Anemometer / Wind Speed Sensor (4-20mA/0-5V)
