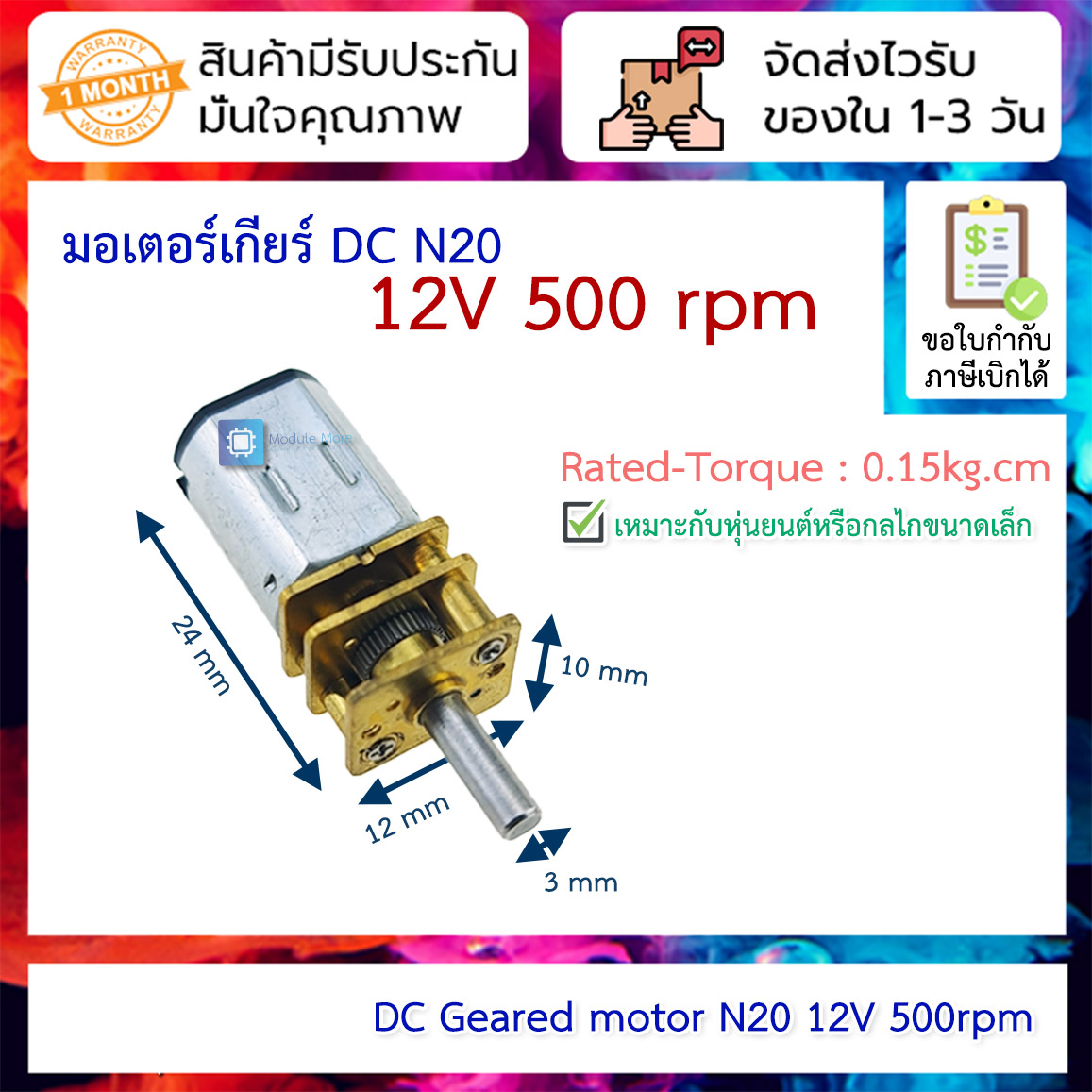

มอเตอร์เกียร์ Geared DC Motor N20 12V 500 rpm

The N20 DC geared motor is a powerful and efficient motor suitable for a wide range of applications, including robotics and miniature cars. With a compact design and attached gearbox, it provides high torque at low speeds. This motor has a rated voltage of 12V and a no-load speed of 500 rpm, making it an excellent choice for applications where a balance between speed and torque is necessary.

The N20 DC geared motor has a deceleration ratio of 1:60, meaning the output speed is 1/60th of the input speed. Its rated speed is 400 rpm, which is the speed at which it operates at its rated torque of 0.4 kg.cm. The motor is also capable of producing a blocked torque of 3.2kg.cm at a current of 300mA.

With a rated current of 300mA, this motor is both powerful and energy-efficient, making it suitable for battery-powered devices. Overall, the N20 DC geared motor is a top choice for applications where space is limited, and high torque is required, thanks to its compact size, high efficiency, and low power consumption.


Rated voltage : 12v
No-load speed : 500 rpm
Rated speed : 400 rpm
Rated torque : 0.4 kg.cm
Rated current : 300mA
Blocked torque : 3.2kg.cm
Blocked torque : 300mA
Deceleration ratio : 1:60
Conditions
Tags

Exchange or return policy



Every item comes with a 30-day warranty. However, there are certain conditions that apply:

  1. The customer should not be responsible for any self-inflicted damage, such as incorrect power connections (for example, supplying 5V instead of the required 3.3V for a sensor).

  2. The product must be in perfect condition, without any breakage or damage caused by electricity (e.g., short circuits leading to electrical fires).

  3. The store does not accept product exchanges due to customer misunderstandings, such as purchasing the wrong size for their project or buying something without eventually using it. Customers can inquire about the product details and ensure compatibility before making a purchase by contacting us through our Line account @modulemore during business hours. Please note that there may be delays in response between 12:00 PM and 2:00 PM.

Return Policy: To initiate a product return, customers must provide the original receipt or a copy for quick verification. Returns can be sent to our store address by following these guidelines:

  1. Provide a detailed description of the damaged item(s).
  2. Mention any tests or experiments conducted by the customer.

Please note that the store reserves the right to make the final decision regarding product replacement or refund.
