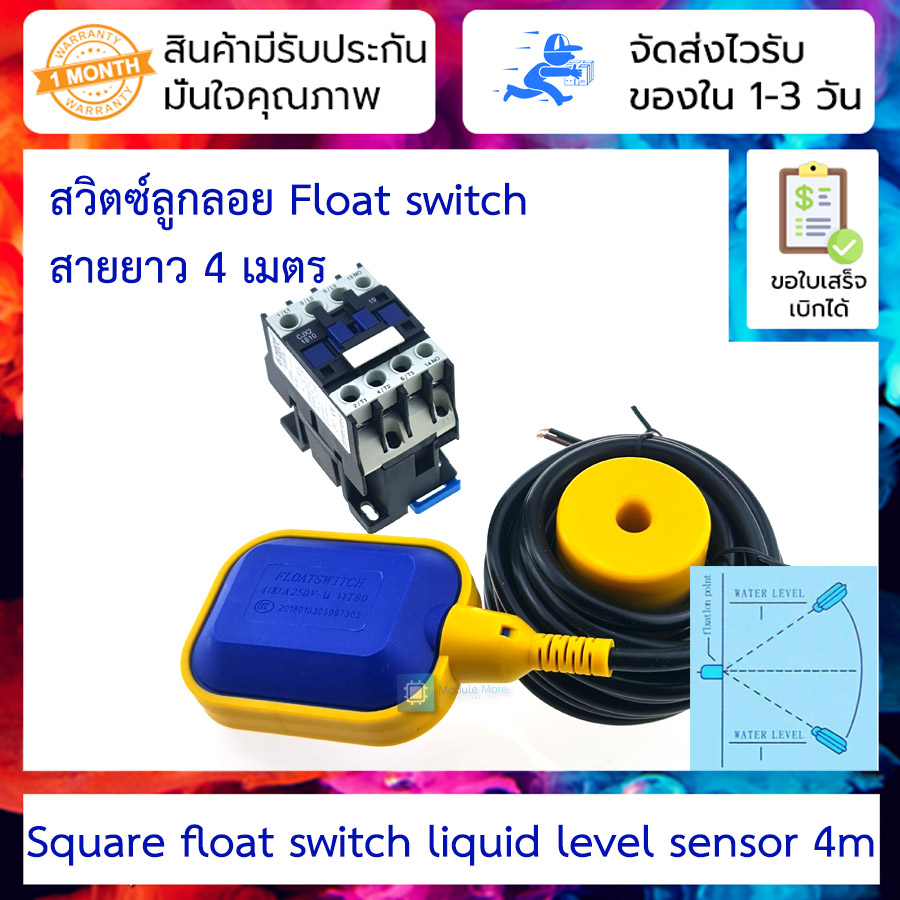

สวิตซ์ลูกลอย ลูกลอยไฟฟ้า Float switch สายยาว 4 เมตร Square float switch liquid level sensor 4m




ตัวอย่างวิดิโอการใช้งาน




Description:
Float Switch Water Level Controller Sensor
Adopt pure copper wire to better guarantee power transmission.
With working principle diagram, easy to debug and install.
PVC cable, non-toxic and odorless, soft and rupture-resistant, stronger and more convenient to use.
Using PP material, non-toxic and tasteless, low density, strength, stiffness, hardness, heat resistance are better than low-pressure polyethylene, with good electrical properties and insulation.

Specification:
Rated Voltage: AC 220V
Rated Current: 4A/220V(Resistive load)
Thermal Current: 10A 250V(max)
Operating temperature: 0~65°C
Power range: <750W
Working pressure: 0.1MPa
Control Range: >0.3m
Service Life: >10000 times
Protection class: IP65

=================================================

[ Optional ]
CJX2-1810 Motor Control AC Contactor AC-3 7.5KW 32A 3P 3 Pole 24 Volts Coil

Specification:
Product Name :  AC Contactor
Model Number : CJX2-1810
Rated Coil Voltage : M7 AC 220-230V 50Hz / AC 230-240V 60Hz
Contact Type:  1NO
Pole Number : 3 Pole
Conventional Thermal Current(Ith) : 32A
Rated Insulation Voltage(Ui) : AC 690V
AC-3 Rated Voltage(Ue) : 220/380
AC-3 Controled Power(Pe) : 4/7.5KW
Total Size(Approx) : 79 x 44 x 71mm/ 3.1" x 1.7" x 2.8" (L*W*H)
Rail Mounting : 35mm DIN Rail
Material : Plastic, Electrical Parts
Main Color : Black
Net Weight : 364g
Package Content : 1 x AC Contactor

Descriptions:
Features: 690V AC rated insulation voltage, 3 pole 1NO, AC rated coil voltage 220-230V 50Hz / AC 230-240V 60Hz
Widely use for long-distance connecting and breaking circuit , frequent start and control AC electric motors.
