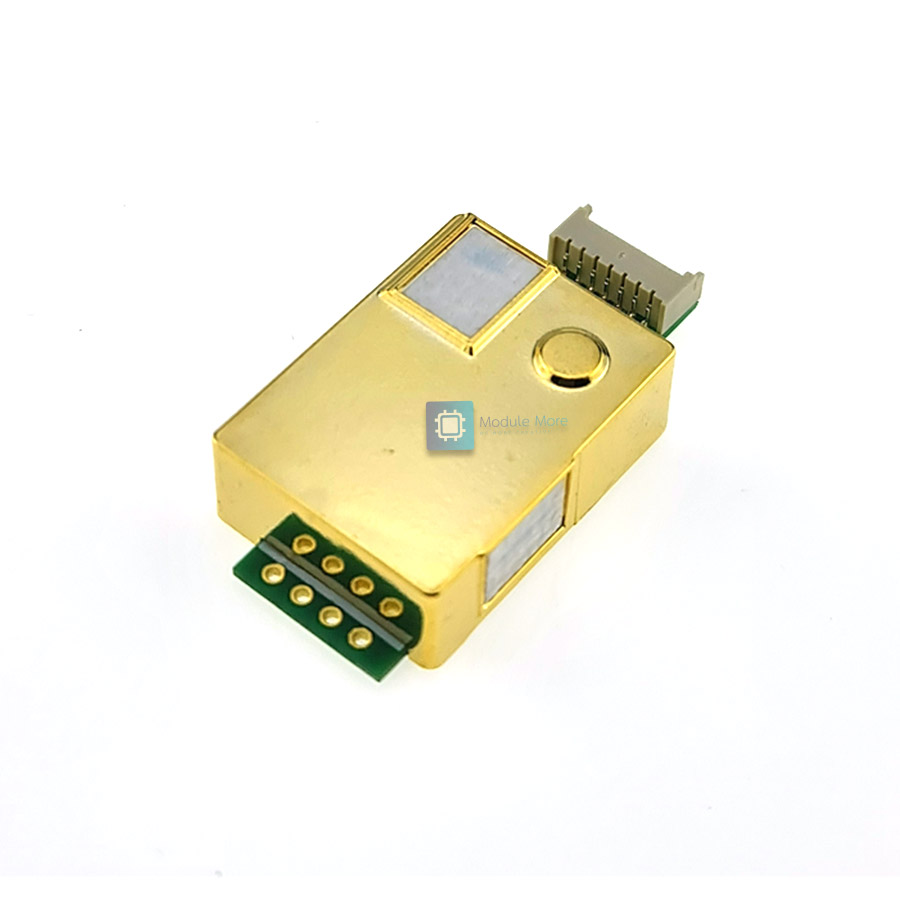

MH-Z19B เซนเซอร์วัดก๊าซ CO2 Infrared carbon dioxide sensor MH-Z19B

โมดูล MH-Z19B คือโมดูลเซ็นเซอร์วัดความเข้มข้นของก๊าซคาร์บอนไดออกไซด์ CO2 ประเภท Non-Dispersive Infrared (NDIR) ในช่วง

0 - 2000 ppm หรือ
0 – 5000 ppm (สามารถเลือกได้)

โดยตัวโมดูล MH-Z19B CO2 Gas Sensor มีการ Calibrate มาจากโรงงานในเบื้องต้นแล้ว ผู้ใช้งานสามารถต่อโมดูลกับ MCU ผ่านทาง PWM, Serial ของตัวโมดูลได้

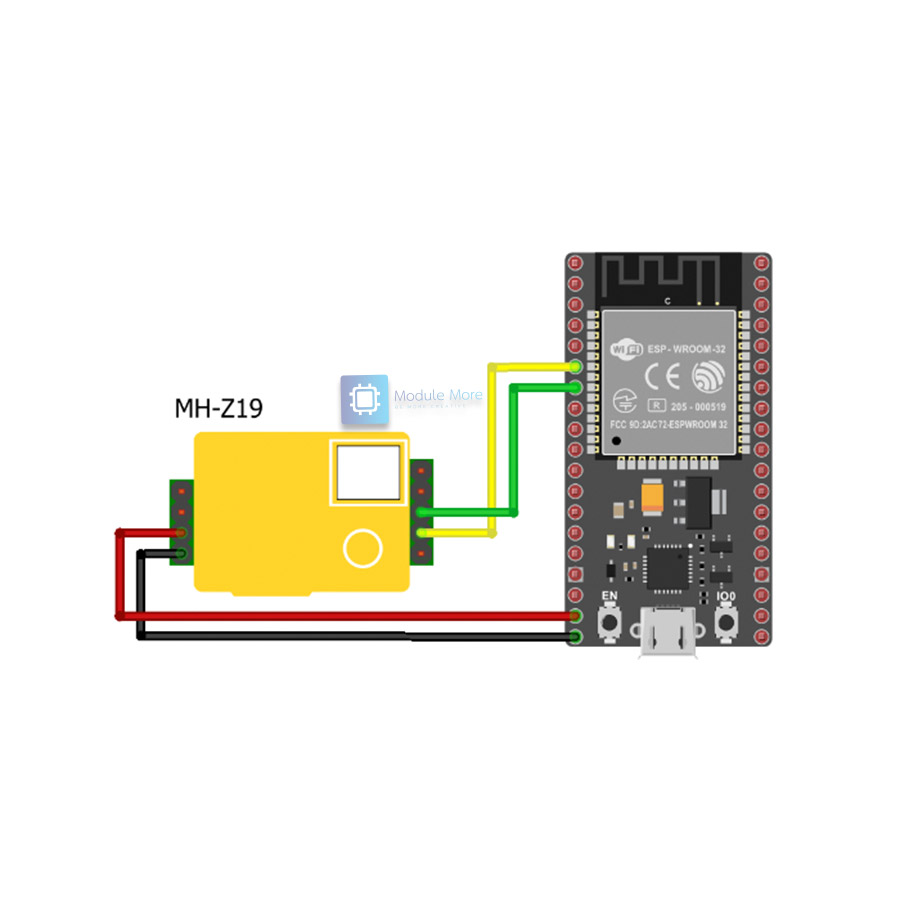

ตัวเซนเซอร์ใช้ไฟเลี้ยง 4.5-5.5V โดยมี logic level 3.3v จึงสามารถต่อกับ esp8266 nodemcu, esp32 ได้แบบไม่ต้องใช้ logic level converter

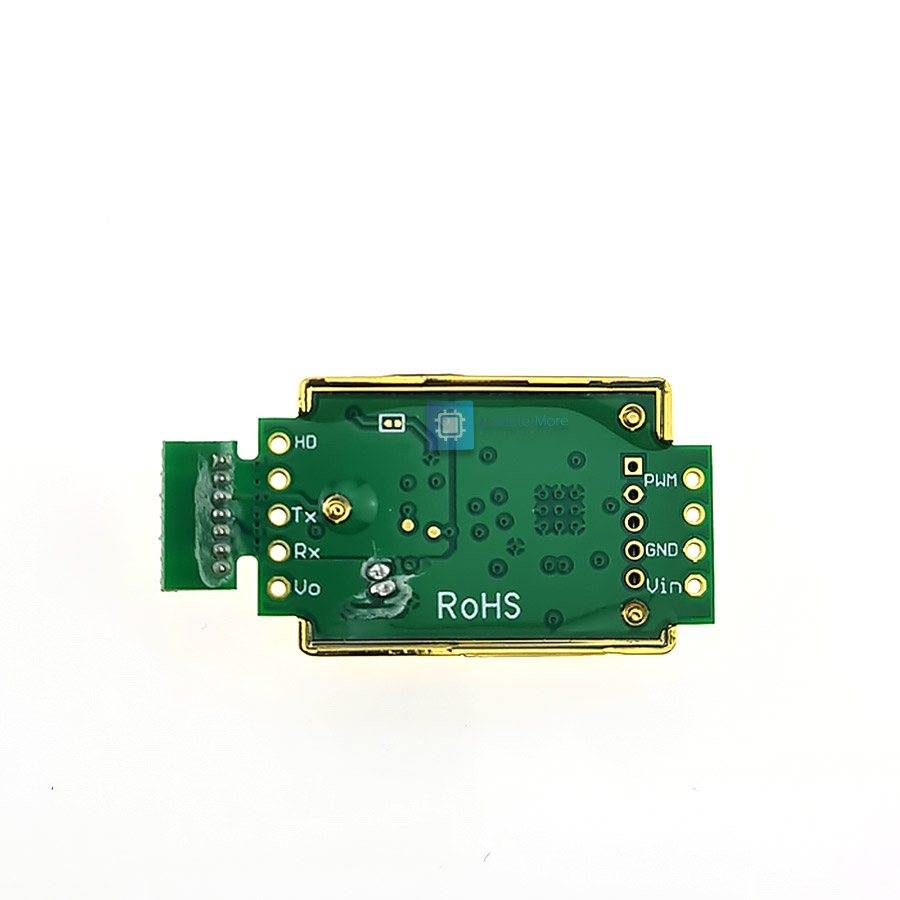

กรณีต้องการ Calibrate สามารถทำได้โดยการเปิดใช้งานเซนเซอร์ภายนอกอาคารเป็นเวลาอย่างน้อย 20นาทีเพื่อให้ค่าเซนเซอร์มีความสเถียร จากนั้นให้ต่อขา HD ลง 0V เป็นระยะเวลา 7 วินาที หรือใช้ Library เพื่อส่งคำสั่ง calibrate ก็ได้เช่นกัน

ตัวเซนเซอร์มีระบบ autocalibration สามารถปรับค่าตัวเองจากค่า co2 ต่ำสุดที่อ่านได้ ซึ่งอิงที่ 400ppm โดยจะปรับตัวเองใช้เวลาอาจจะหลายสัปดาห์ ดังนั้นหากวางไว้ภายนอกอาคาร สามารถใช้ฟังก์ชันนี้ได้ แต่หากวางไว้ภายในอาคาร หรือสวนผัก การเปิดใช้ autocalibrate อาจไม่ตรงจุดประสงค์ของฟังก์ชัน เนื่องจากค่า co2 ต่ำสุดอาจต่ำกว่าค่ามาตรฐานภายนอกอาคารที่ประมาณ 400ppm นั่นเอง

Library แนะนำ คลิ๊ก
Datasheet เพิ่มเติม คลิ๊ก


MH-Z19B sensor parameters

Model MH-Z19B
Gas detected Carbon dioxide
Operating voltage 4.5 ~ 5.5 V DC
Average current <60m A (@ 5V supply)
Peak current 150 mA (supply @ 5V)
Interface level 3.3 V (compatible with 5V)
Measuring range 0 ~ 2000 ppm
0 ~ 5000 ppm
Output signal Serial (UART) - TTL level 3.3 V - PWM analog output
Preheating time 3 minutes
Response time T90<120s
Operating temperature 0 ~ 50 ° C
Operating humidity 0 to 90% RH (non-condensing)

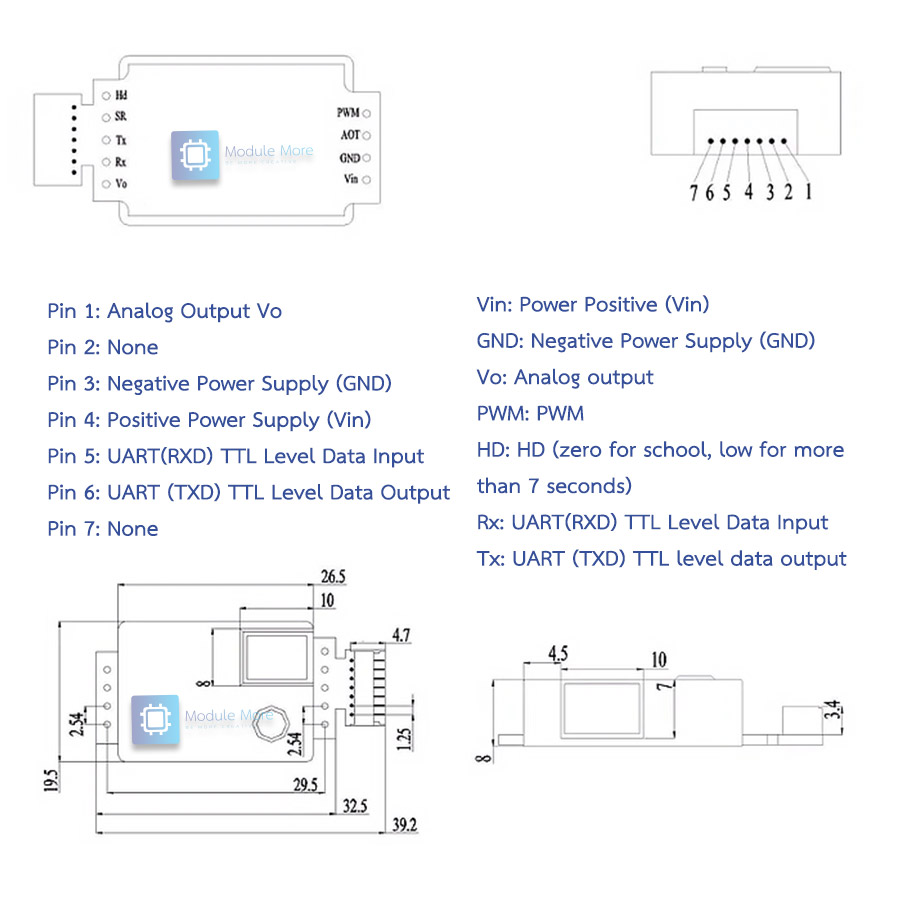

Dimensions 33mm × 20mm × 9mm (Length * Width * Height)
Weight 5 grams
Lifetime > 5 years
  •
Infrared carbon dioxide sensor MH-Z19B with connector
Infrared carbon dioxide sensor MH-Z19B with connector
Infrared carbon dioxide sensor MH-Z19B with connector
Infrared carbon dioxide sensor MH-Z19B with connector
Infrared carbon dioxide sensor MH-Z19B with connector
