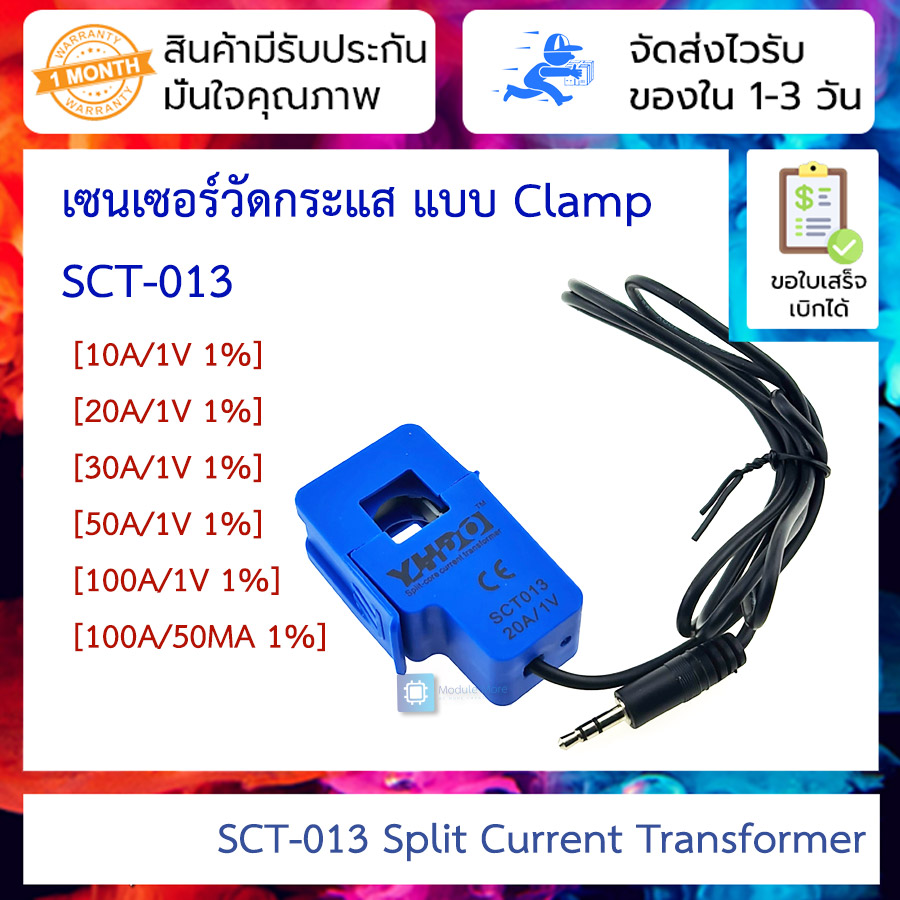

SCT-013-000 Split Current Transformer 10A 20A 30A 50A 100A

Model: SCT013

Frequency: 50HZ-150KHZ

Split type transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A

Features:

Size of the opening:

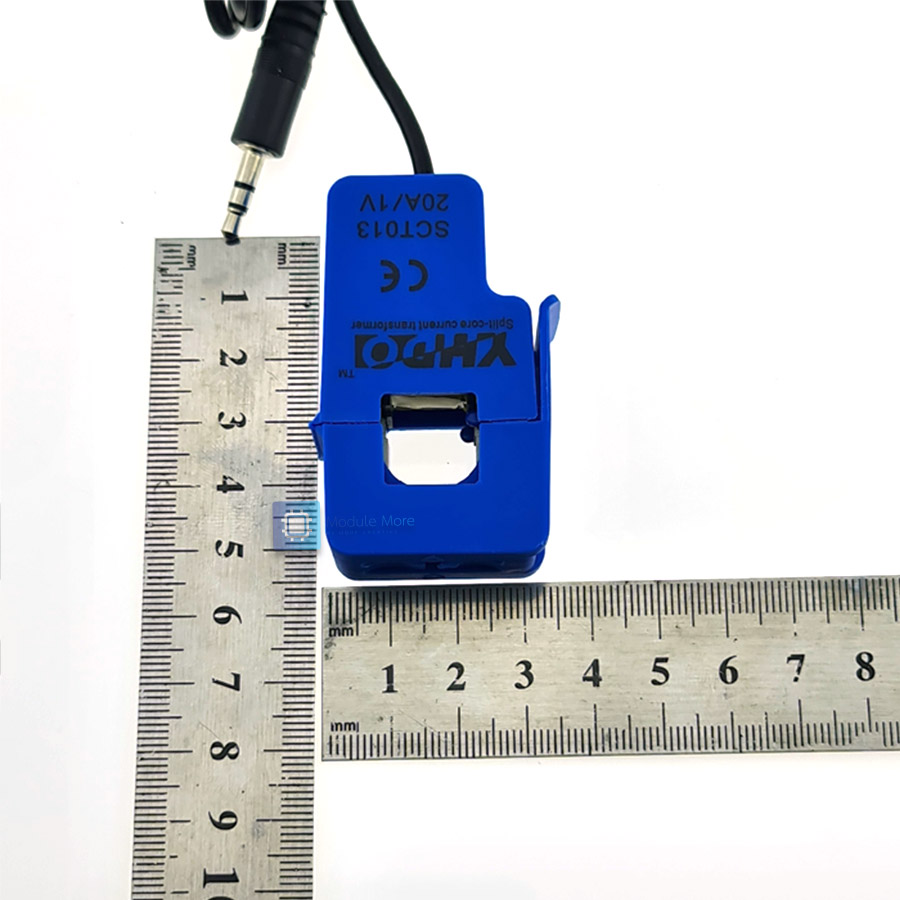

13mm×13mm, fully compatible with similar foreign products; non-linearity ±3% (10%~120% rated input current); lead length 1.5 meters, standard Φ3.5 three-core plug output; two output forms of current and voltage ( Voltage output type built-in sampling resistor).

For current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc. Core material: ferrite Mechanical strength: opening and closing times not less than 1000 times (tested at 20°C)

Safety index: electric strength (between the shell and output) 6000V AC/1min, flame retardant properties conform to UL94-V0

Working temperature: -25℃~+70℃

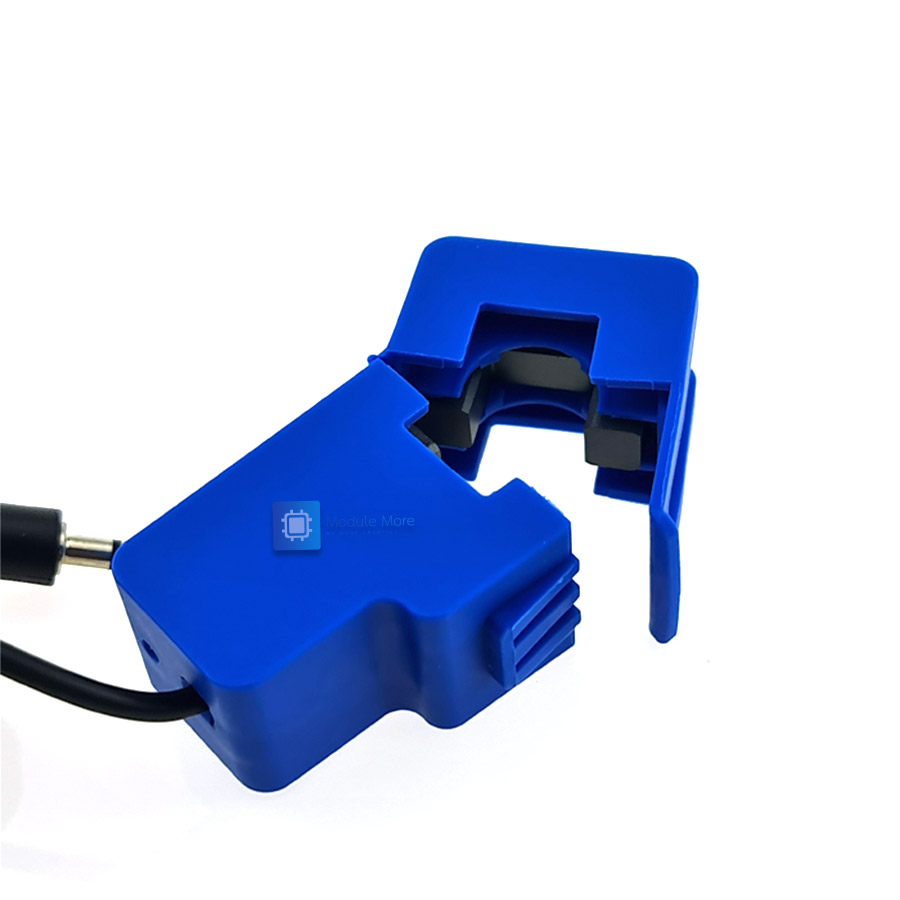

SCT-013-000 Split Current Transformer 10A 20A 30A 50A 100A
SCT-013-000 Split Current Transformer 10A 20A 30A 50A 100A
SCT-013-000 Split Current Transformer 10A 20A 30A 50A 100A
