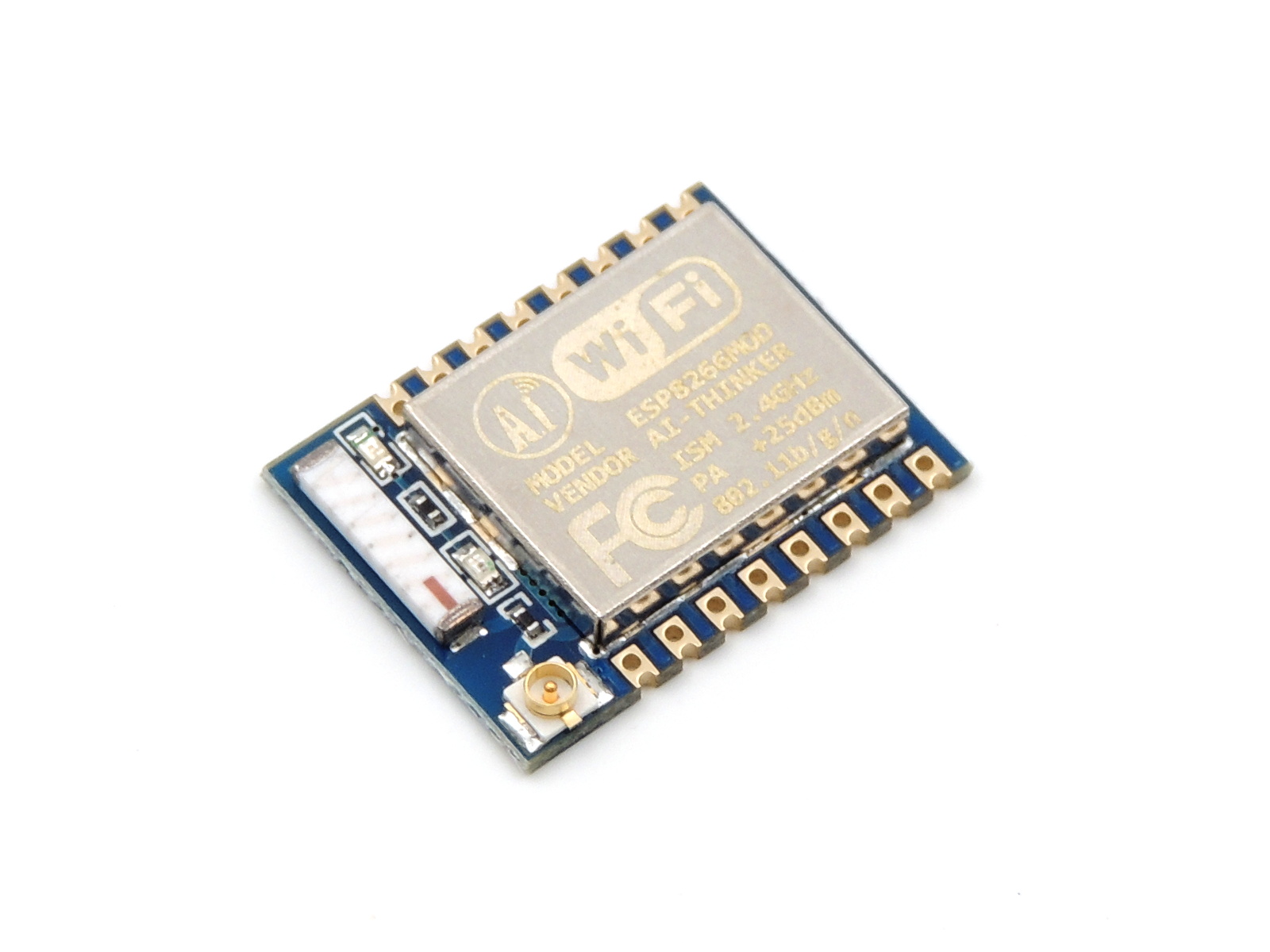

ESP8266  แบบใช้เสาแยก ESP8266 serial port WIFI remote wireless control WIF module ESP-07


ใช้คู่กับเสา 3db ด้านล่างได้เลย
เสา WiFi แบบรอบตัว IPEX 3dbi 50ohm SWR < 1.5


รหัสสินค้า SKU-00184
30.00 บาท



ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Corresponding Interface:
    SDIO 2.0, SPI, UART
    32-pin QFN package
    Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
    Integrated RISC processor, on-chip memory and external memory interfaces
    Integrated MAC/baseband processors
    Quality of Service management
    I2S interface for high fidelity audio applications
    On-chip low-dropout linear regulators for all internal supplies
    Proprietary spurious-free clock generation architecture
    Integrated WEP, TKIP, AES, and WAPI engines
Specification:
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- Integrated low power 32-bit CPU could be used as application processor
- SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)



ตัวอย่างการใช้ควบคู่กับบอร์ด NodeMCU pcb
