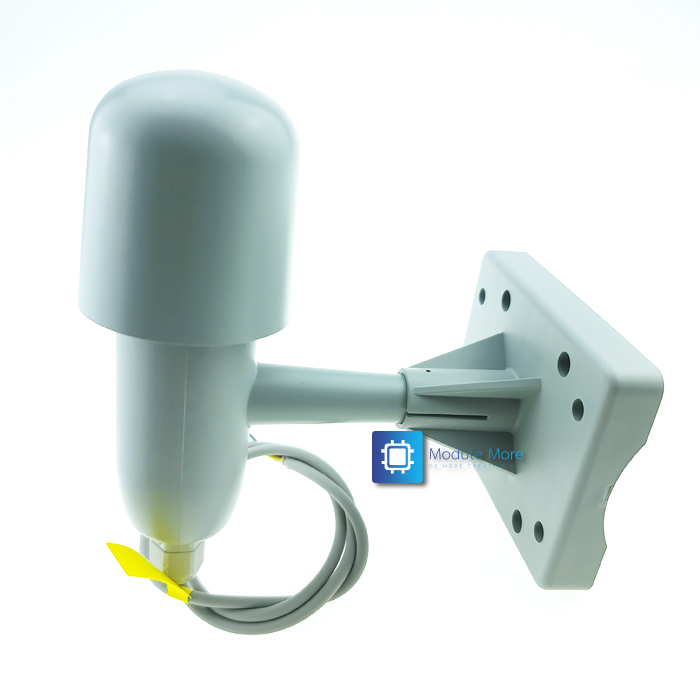

เซนเซอร์วัดอุณหภูมิและความชื้นชนิดใช้ภายนอกอาคาร กันฝน RS485 AM2306 Outdoor Digital Temperature Humidity Sensor Hygrometer Sensor Wall Mounted Type



Description:

AM2306 humidity-sensitive capacitor digital temperature and humidity module is a temperature and humidity composite sensor with calibrated RS485 signal output. It uses special digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. The product features excellent quality, ultra-fast response, strong anti-interference ability, and extremely cost-effective performance.



Technical Parameters:

  • สื่อสารผ่าน RS485 โดยใช้ Modbus
  • สามารถตั้ง ID ได้ตั้งแต่ 1-247 ( default ที่ 1 )
  • สามารถเปลี่ยน baudrate การสื่อสารได้ตั้งแต่ 9600 - 57600 ( default ที่ 9600 )

Modbus internal register address

0x0000  Humidity
0x0001  Temperature
0x0014  Baudrate (High bit)
0x0015  Baudrate (Low bit)
0x0016  Devide ID

Read multiple registers : 0x03
Write multiple registers: 0x10

ตัวอย่าง Code
ติดต่อ line @modulemore

Relative Humidity:
- Resolution: 0.1% RH, 16Bit
- Repeatability: ±1% RH
- Accuracy: 25℃, ±3% RH; 0-100% RH , ±5% RH
- Interchangeability: fully interchangeable
- Response time: 1/e (63%) 25 ℃, 6s; 1m/s air, 6s
- Hysteresis: < ±0.3% RH
- Long-term stability: < ±0.5% RH/yr

Temperature:
- Resolution: 0.1% RH, 16Bit
- Repeatability: ±0.2℃
- Range: 25℃, ±0.3℃; -20 to 60℃, ±1℃
- Response time: 1/e (63%), 10s

Electrical Characteristics:
- Power supply voltage: DC 5V
- Power supply current: measure 0.3mA; standby 60μA
- Sampling period: more than 2 seconds each time

Features:
- Low power consumption
- High precision
- Fully interchangeable
- Long transmission distance
- Long-term stability
- Automated calibration
- Capacitive humidity sensor
- RS485 bus output
- Waterproof design
- Stable use

Applications:
For HVAC, dehumidifiers, testing and testing equipment, consumer products, automobiles, automatic control, data recorders, home appliances, humidity regulators, medical, weather stations, and other related humidity testing and control.

Package Included:
- 1 x Set of Temperature Humidity Sensor
