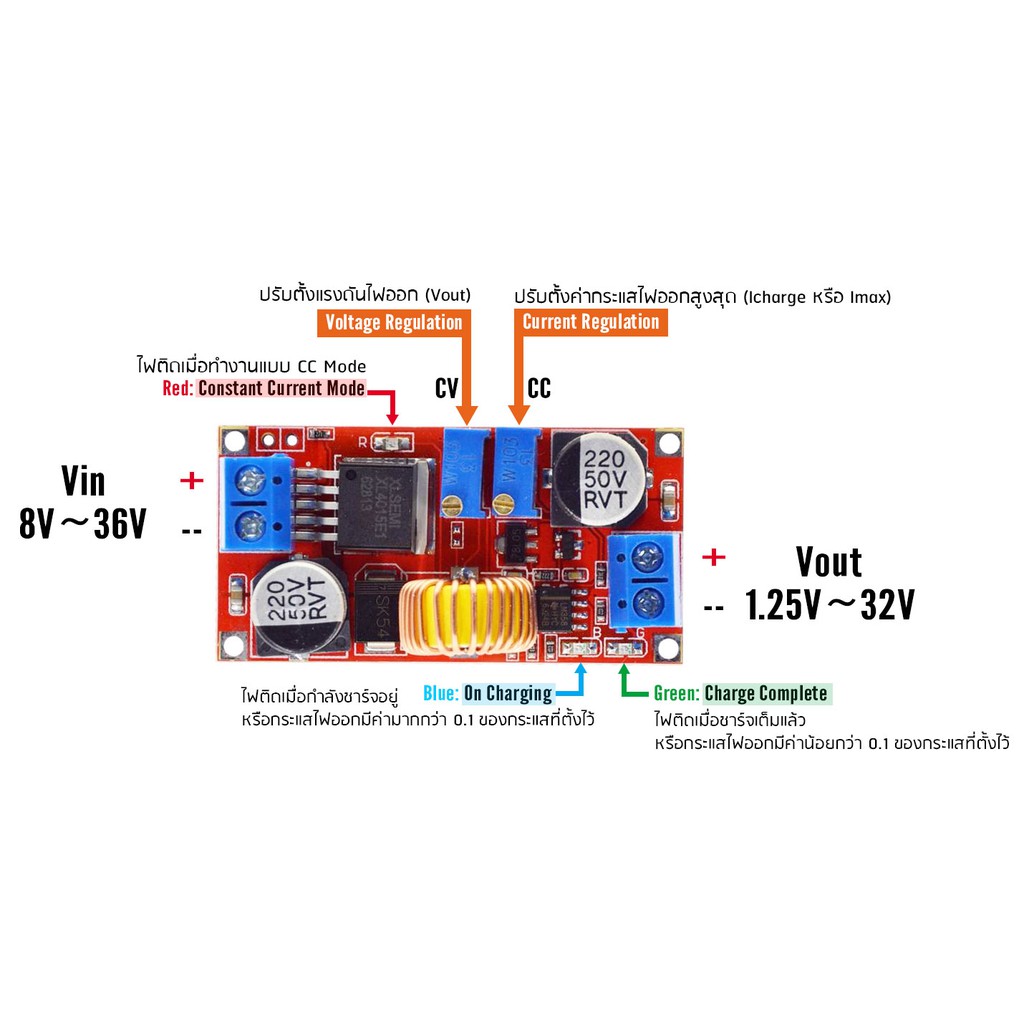

5A XL4015 CC/CV DC-DC Step Down Buck Converter Module / Battery Charger / LED Driver / บอร์ดชาร์จแบต / บอร์ดจ่ายไฟ LED

แรงดันไฟเข้า 8~36V
แรงดันไฟออก 1.25~32V (ปรับได้)
กระแสขาออกปรับได้ตั้งแต่ 0~5A
ตัดการทำงานเมื่ออุณหภูมิสูง
มีฟังก์ชั่นจำกัดกระแส
มีฟังก์ชั่นป้องกันการลัดวงจรที่เอาพุทต์
ขนาด 51x26x15mm
สามารถใช้งานเป็น อุปกรณ์ชาร์จแบตเตอรี่ได้
สามารถใช้งานเป็น อุปกรณ์ปรับความสว่าง LED ได้

วิธีการใช้งานสำหรับชาร์จแบตเตอรี่
สามารถใช้งานชาร์จแบตเตอรี่ตะกั่ว แบตเตอรี่ลิเธียม และอื่นๆ
1. ป้อนไฟเข้าจากแหล่งจ่ายไฟ โดยแรงดันเข้าจะต้องมีค่ามากกว่า Float Voltage ที่ต้องการ และแหล่งจ่ายไฟจะต้องมีศักยภาพในการจ่ายกระแสได้เพียงพอต่อค่า Icharge หรือ แหล่งจ่ายไฟเข้ามีวัตต์ที่สูงกว่าวัตต์ที่ต้องการในการชาร์จ
2. ตั้งค่า Float Voltage โดยการไม่ต้องต่อโหลดใดๆ ใช้มัลติมิเตอร์วัดไฟที่ output และปรับค่าโวลต์ที่ CV trimpot ให้ได้ค่าที่ต้องการ
3. ตั้งค่า Icharge โดยการใช้มัลติมิเตอร์วัดกระแสขณะชอร์ต output แล้วปรับที่ CC trimpot ให้ได้ค่ากระแสที่ต้องการ
หมายเหตุ:
LED ชาร์จ (สีฟ้า) จะติดเมื่อ Icharge สูงกว่า 0.1 เท่าของ Icharge และ LED ชาร์จเสร็จ (สีเขียว) จะติดเมื่อ Icharge น้อยกว่า 0.1 เท่าของ Icharge

วิธีการใช้งานปรับความสว่าง LED (dimmer)
สามารถใช้ปรับความสว่าง LED ที่ใช้งานกับไฟ DC ได้
1. ตรวจสอบความต้องการของ LED โมดูลนั้นๆว่าต้องการ แรงดันไฟเท่าไหร่
2. ไม่ต้องต่อโหลดใดๆ ใช้มัลติมิเตอร์วัดไฟที่ output และปรับค่าโวลต์ที่ CV trimpot ให้ได้ค่าที่ต้องการ
3. ต่อ LED แล้วปรับค่า CC trimpot ความสว่างของ LED จะลดลงหรือเพิ่มขึ้นตามการปรับค่าที่ trimpot (อาจจะปรับหลายรอบถึงจะเห็นการเปลี่ยนแปลง)
