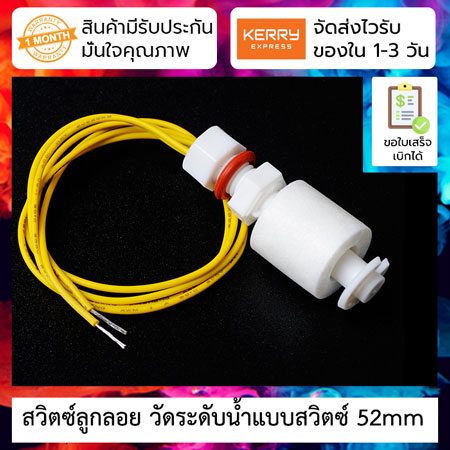

สวิตซ์ลูกลอย วัดระดับน้ำแบบสวิตซ์ 52mm Water Level Sensor 52mm Plastic small float switch anti-corrosion

ลักษณะการใช้งานทำงานเป็นสวิตซ์ ไม่ใช่ Analog output

สามารถเซ็ตให้ติดตั้งได้ทั้งจากด้านบนและด้านล่าง
เซ็ตได้ทั้งต่ำตัด ต่ำต่อ และ สูงตัด สูงต่อ (วงจร)



ตัวอย่างการใช้งานสามารถดูได้จากวิดิโอด้านล่าง


https://youtu.be/WlN52yzSRCE?list=PLhTMkgVMwtFGck1ok0FUpi1Lllw8pOObD



รองรับกระแสสูงสุด 0.5A ทั้ง AC/DC



 Date Scan  1A1
 Max Contact Rating  10W
 Max Switching Voltage  100VDC/AC

 Max Switching Current

 0.5A
 Max Breakdown Voltage  220VDC/AC
 Max Carry Resistance  1.0A
 Max Contact Resistance  100
 Temperature Rating  -10~+85°c
 Float Ball Material    P.P
