Item description |
วิดีโอสาธิตการใช้งาน
รายละเอียดสินค้า 1. Input voltage logic portion VD: 5 V
2. The driving part of the input voltage VS: VIN Input 6 5 ~ 1 2 V, PWRIN input 4 8 ~ 2 4 V..
3. The logic part of the work current I ss: ≤3 6 m A
4. The driving part of the work current I o: ≤2 A
5. Maximum Power Dissipation: 2 5 W (T = 7 5 ℃)
6. A control signal input level: High: 2 3 V≤V in≤5 V Low: -... 0 3 V≤V in≤1 5 V
7. Working temperature: - 2 5 ℃ ~ + 1 3 0 ℃
8. Drive: Dual high-power H-bridge driver
Features:

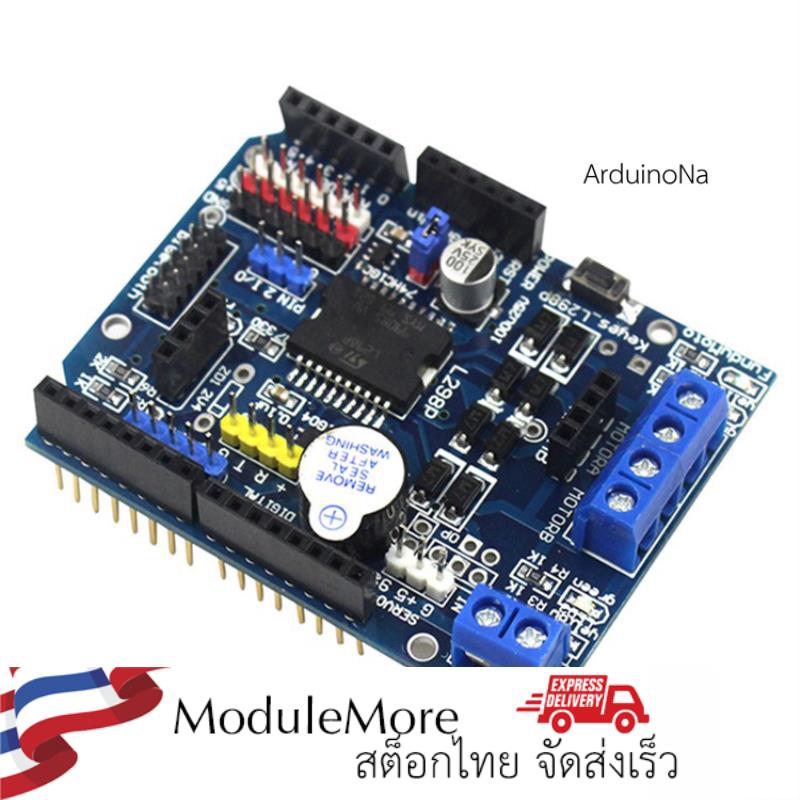

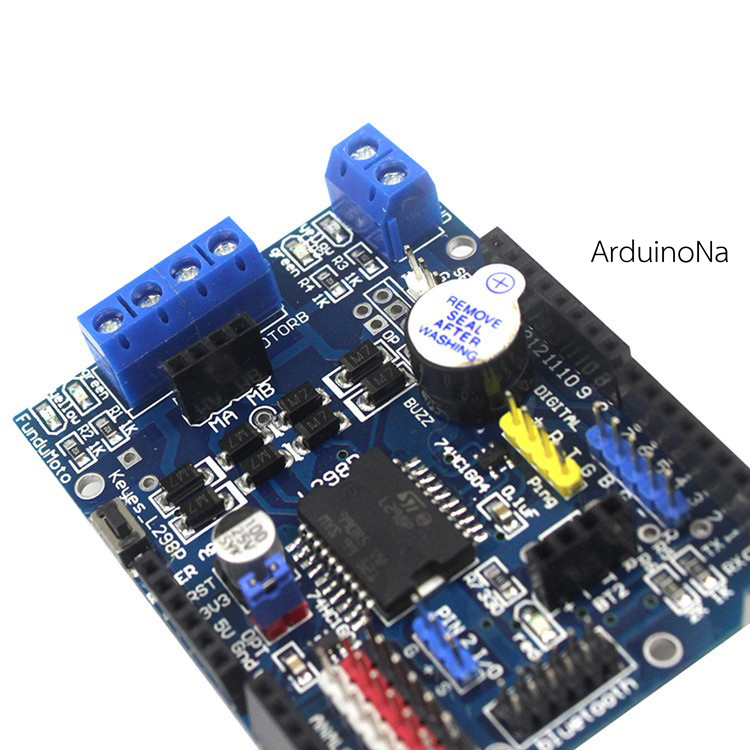

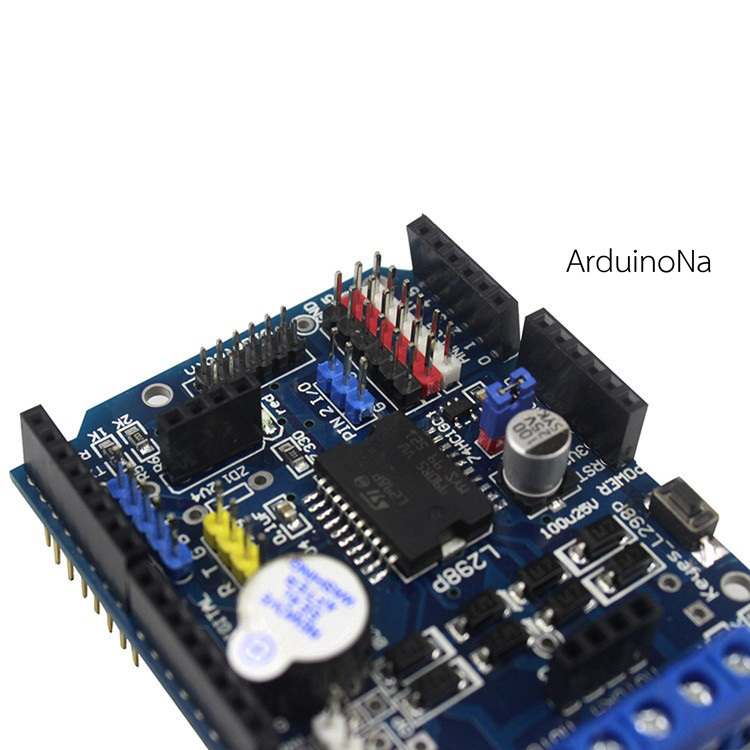

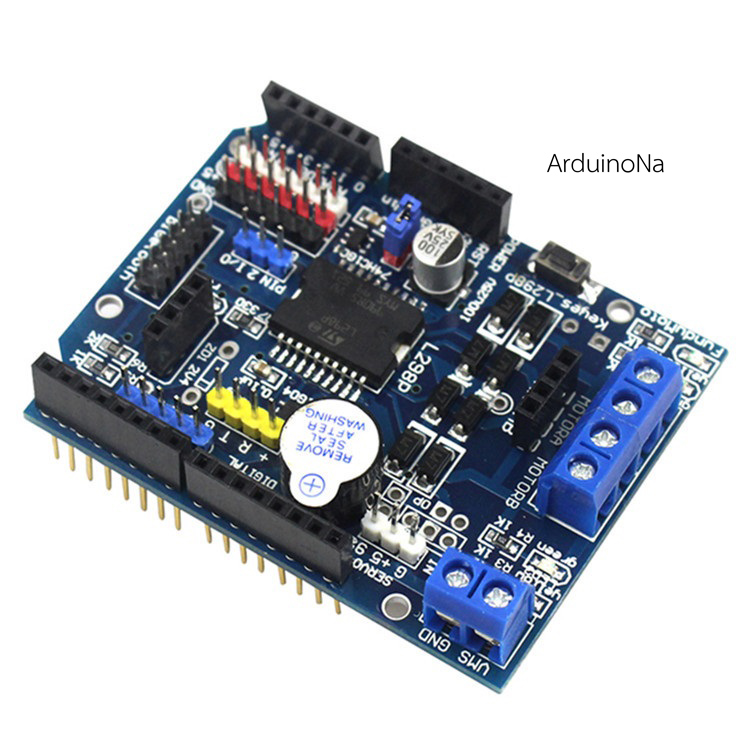

1. board with L298P motor driver chip, the direct digital IO port with the motherboard (D10 .D11. D12. D13), without cumbersome wiring.
2. Onboard beeper (D4), may be provided reversing alarm ringing.
3. Convenient motor interface, the motor output can be two routes.
4. The two-way Bluetooth interface, can be directly inserted, no wiring.
5 out of the D 2, D 3, D 5, D 6, D 7, D 9, D is not occupied by seven digital interface.
6 a A 0 - A 5 six analog interface.
7. forward and back lights are turned. ![]() ![]() ![]() ![]() |
