เซ็นเซอร์วัดความเร่ง ความเร็วเชิงมุม สนามแม่เหล็ก GY-9250 for Arduino IMU 3-axis Accelerometer/Gyro Module (MPU9250 ) 9-DOF

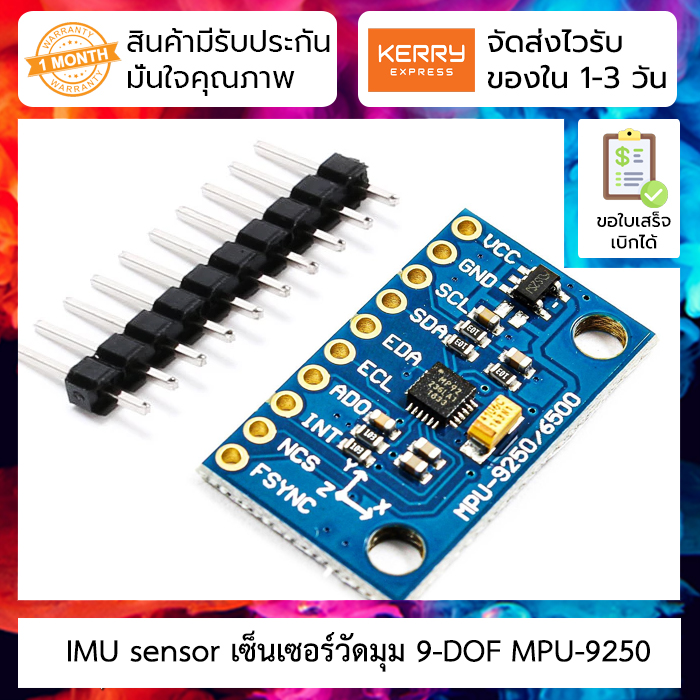

This board contains an MPU-9255 (updated version of MPU-9250) 9-axis sensor, with measurements from solid-state 3-axis Accelerometer, Gyroscope and Magnetometers. The interface is either SPI or I2C, and on board circuitry allows operation with either 3.3V or 5V devices without additional hardware. This can be used in R/C projects where orientation and directional data is required, but has many other applications.

Orders received before 2pm on normal weekdays will be posted the same day. Orders received later or on public holidays/weekends will be posted the next business day.

Technical details
Dimensions 26mm x 16mm. With supplied header pins, height is 12mm, but the board itself is only 4mm.
Operating Voltage 3 to 5V.
Logic level conversion built-in (Note : on I2C lines ONLY!)
Resolution: 16bit AD converter
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Gyroscopes range: ± 250, 500, 1000, 2000 ° / s
Magnetic Field range: ± 4800uT
MPU-9255 I2C address is 0x68 (default) or 0x69
MPU-9255 address : 0x73


Wiring
VCC: Power Input
GND: Ground
SCL: I2C Clock
SDA: I2C Data
EDA: External I2C Data
ECL: External I2C Clock
ADO: I2C Slave Address configuration pin (High sets MPU-9250 I2C address to 0x69)
INT: Interrupt pin
NCS: Chip Select (Disabled if held low)
FSYNC: Used for digital image stabilisation : generally not used

Datasheet :
MPU9250 Product Specification.pdf
