Item description

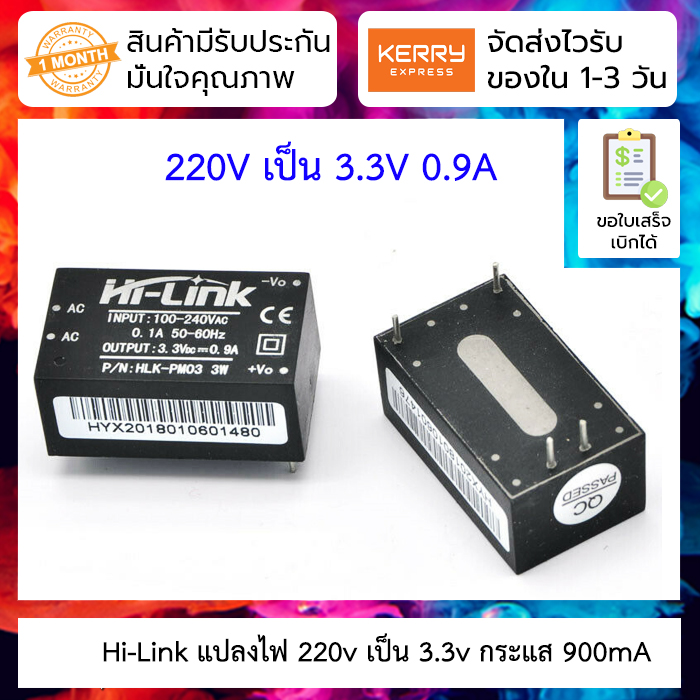

Hi-Link แปลงไฟ 220v เป็น 3.3v กระแส 900mA AC-DC hlk-pm03 3.3V 3W Switching Power Supply


Product features:

1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage(90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period


Environmental conditions

Items Technical Parameters Units Notes
Working temperature -25—+60
Storage temperature -40—+80
Relative humidity 5—95 %
Thermal methods Natural cooling
Atmospheric pressure 80—106 Kpa
Altitude ≤2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes   Meets requirements for secondary road transportation

Electrical characteristics

Items Technical Parameters Units Notes
Rated input voltage 100-240 Vac
Input voltage range 85-265 Vac or 70-350Vdc
The maximum input
current
≤0.1 A
Input inrush current ≤10 A
Input low start ≤50 mS
Long-term reliability MTBF≥100, 000 h
External fuse
recommended
1A / 250Vac or 10Ω wire wound resistance   Slow blow
