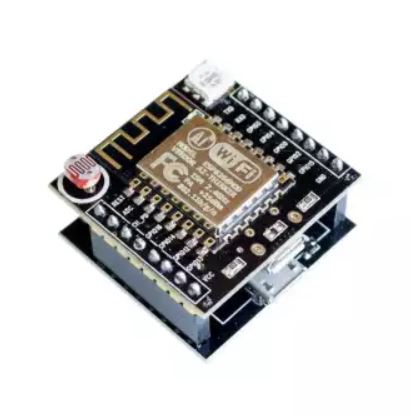

Nodemcu Witty Cloud Development Board ESP-12F พร้อมไฟ RGB และ เซนเซอร์ LDR

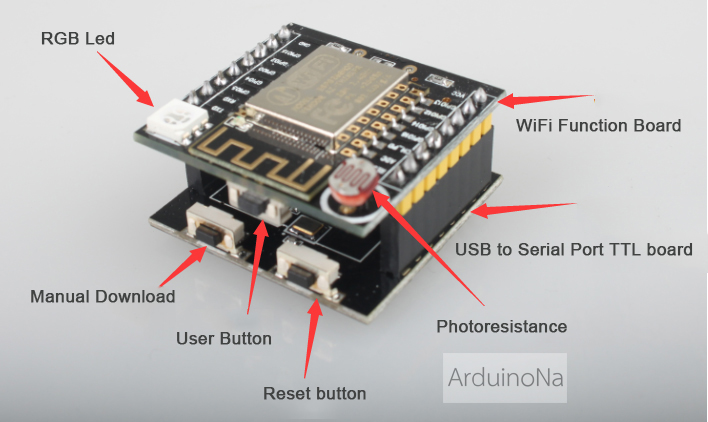

บอร์ด ESP8266 รุ่นนี้ดีไซน์ให้กระทัดรัด เพราะแยกส่วน uploader ออกไปเป็นอีก layer ซึ่งสามารถแยกออกมาเมื่อโปรแกรมเสร็จเพื่อประหยัดพื้นที่ แถมส่วน layer ล่างที่ใช้ upload ยังสามารถใช้ upload โมดูลอื่นๆเช่น ESP-07 ESP-12E ได้อีกด้วย

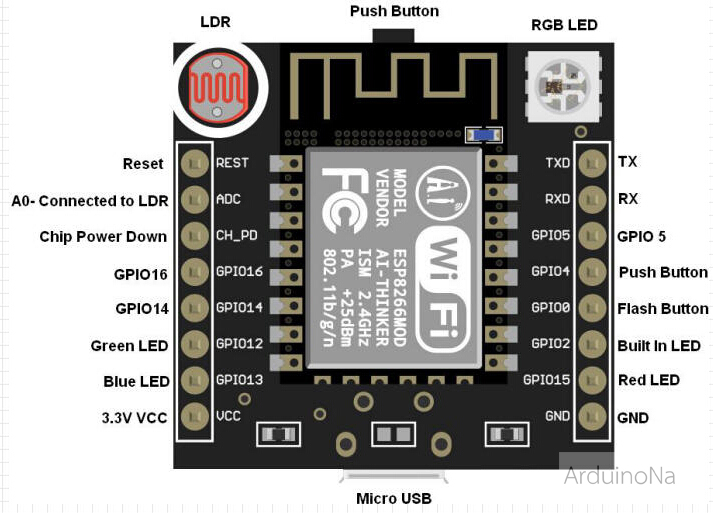

ในตัวบอร์ด ESP ยังมีเซนเซอร์ LDR และไฟ RGB โดยกำหนดขาต่างๆดังนี้
RED ->  GPIO15
GREEN ->  GPIO12
BLUE ->  GPIO13
LDR -> A0


รายละเอียดเพิ่มเติม



  • 1. This cheap and small Wifi transciever is the perfect solution for home Automation and IoT applications.
  • It can be the replacement of your NRF24L01,and can also talk to your Wifi router directly through the UART MCU's (Rx, Tx).
  • 2. The ESP-12 module is one of the most complete of the ESP family as it allows you to use biggest amount of pins of all of them.
  • You can program this module to work stand alone with the Arduino IDE or with LUA as NodeMCU.
  • 3. It has an LDR and a WS2812 led already on board for your projects.
  • The board comes with a CH40 micro USB module to program it.
  • 4. The ESP8266 highly integrated chip, including antenna switch balun, power management converter, so with minimal external circuitry.
  • The system is equipped with ESP8266 manifested leading features are: energy saving VoIP quickly switch between the sleep / wake patterns, with low-power operation adaptive radio bias, front-end signal processing functions.
  • 5. This version, the ESP8266-03 is one of the smallest versions of this module. It includes a buil-in ceramic antenna.
